Identify

Contractor from Baton Rouge, LA
Trying to figure out which pivot bars & balances I need for this window. Thanks
5 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

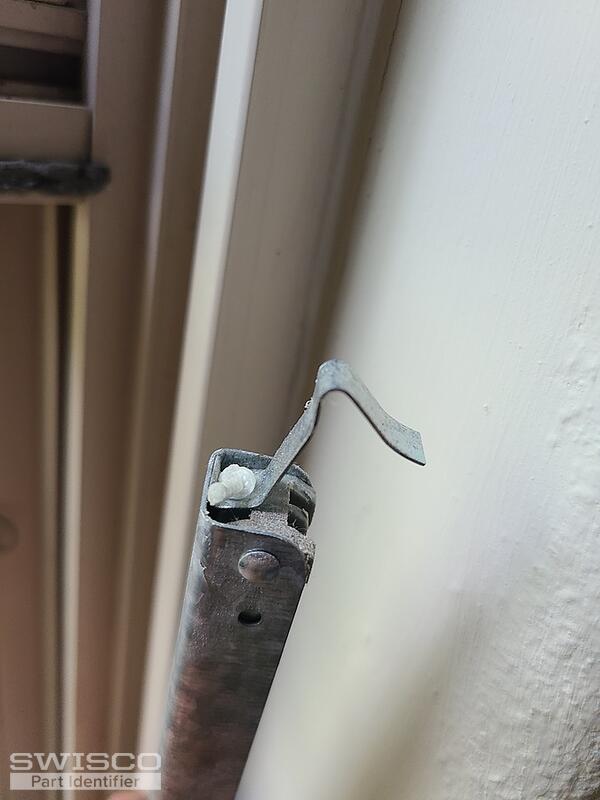

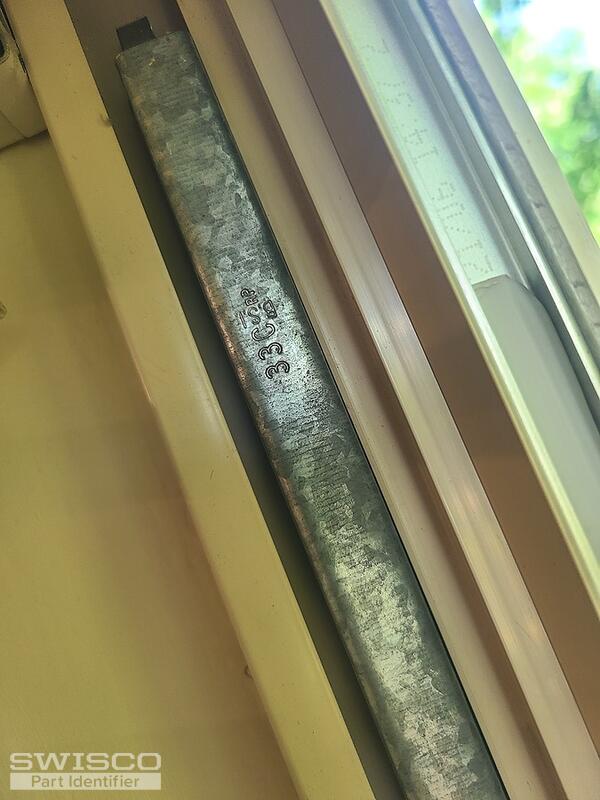

Thanks for posting!  The balances you have are the S795-33 channel balances assembled with a 15-195 1-1/4" closed cam T-Lock shoe. The replacements will need to be custom assemblies since your balances have the 15-198 Balance Clip Attachment installed at the top.

I'm happy to provide you with a link to place the order for the balances, I'll just need to know the exact number of balances you need. There is a quantity minimum of (2) for custom assemblies.

The 15-195 shoe is compatible with the 26-021 Pivot Bar. Be sure to confirm the measurement for the installation hole to determine if it matches us with the installation hole on your pivot bar.

Alternate image for 26-021
Alternate image for 26-021

Contractor from Baton Rouge, LA
Thanks. Can you send me the link for (4) balances in this setup & (4) pivot bars.
Jasmine
Jasmine from SWISCO
SWISCO
Expert

I've forwarded a link to your email for the balances. You'll need to add the pivot bars to the cart along with the balances from the link so that they'll all ship together. Our order links are only used for custom assemblies.

Please don't hesitate to reach out with any questions.
