Identify Channel Balance

Home Owner from florida

Nov 20, 2020 9:38 am

Hi, I need to replace these channel guides. Its hard to see in the pic but the number on it is 286 with backwards 'C'
The metal portion of the piece measures 29". It is 1/2 inch wide

Would you have a replacement for these? Thanks

2 user uploaded images

6 Replies

Casey from SWISCO

Nov 24, 2020 8:19 am

Hello,

We can replace these balances for you but we'll need to see clear, close-up photos of the top and bottom attachments to confirm if either of them has stabilization wings to determine which replacement to recommend. Thank you!

Home Owner from florida

Nov 24, 2020 9:03 pm

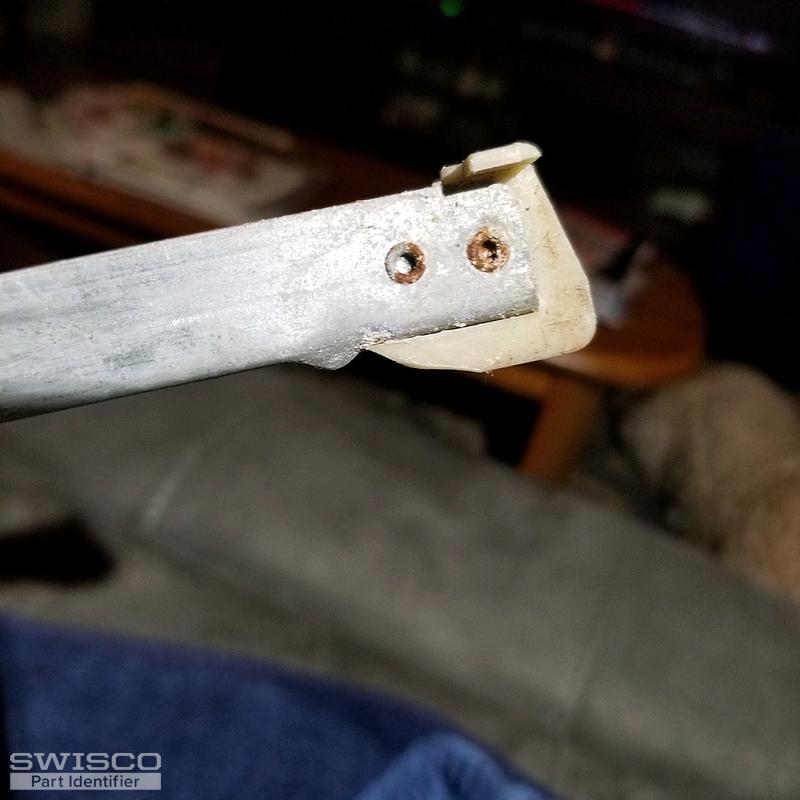

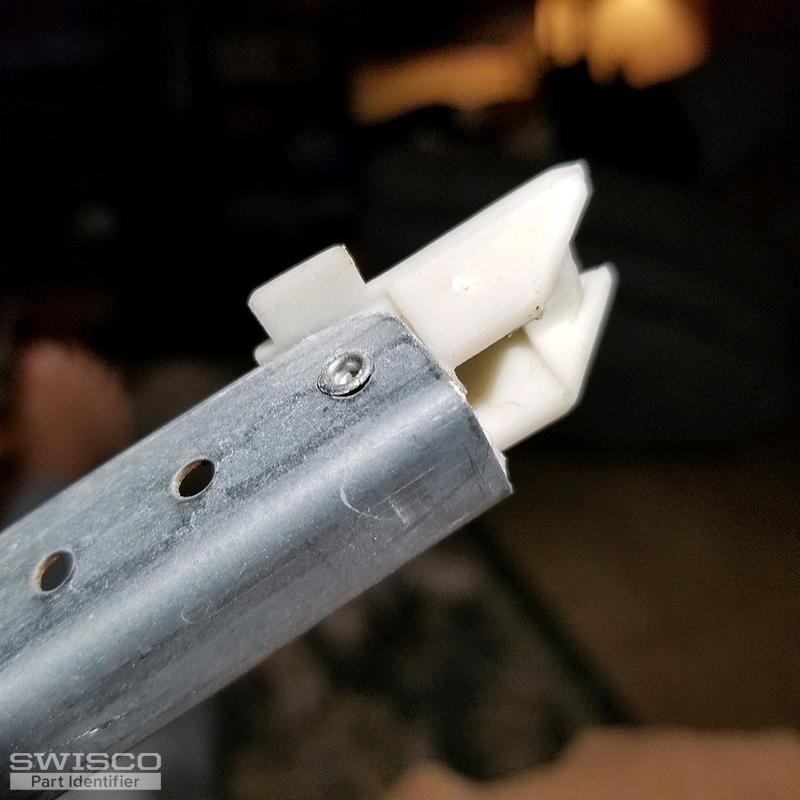

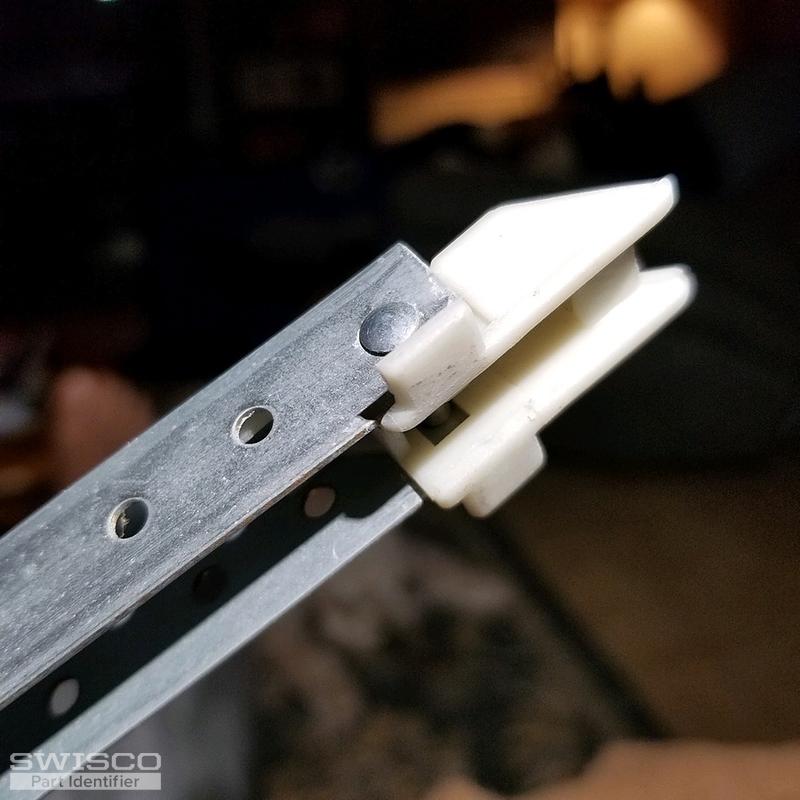

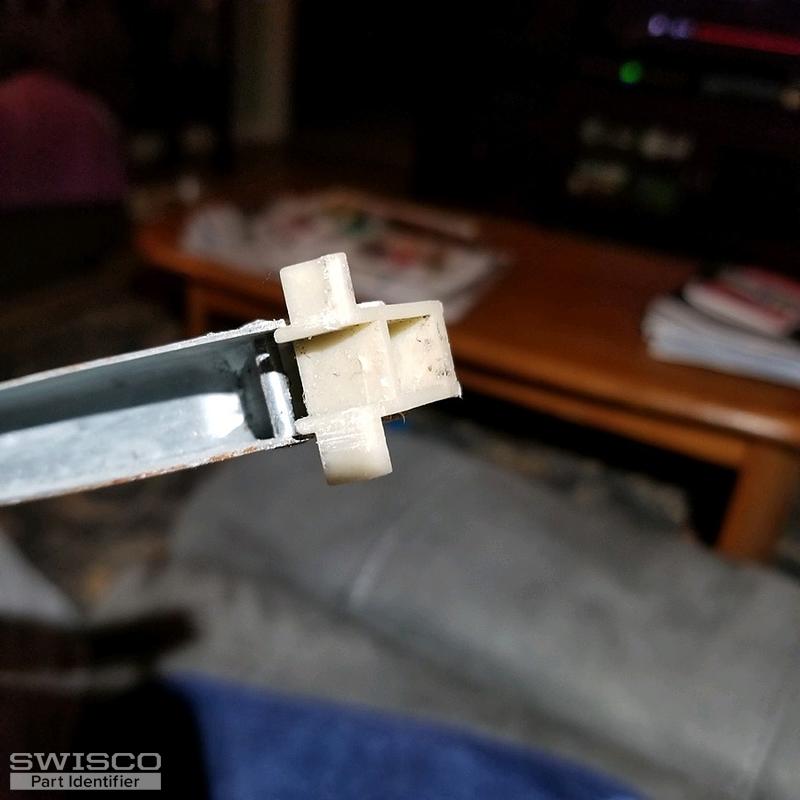

Hi, attached are the photos you requested. Thank you for your help.

5 user uploaded images

Casey from SWISCO

Nov 25, 2020 8:43 am

With this combination of attachments, you could have either an S380-29 or S385-29 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2860 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.

Home Owner from florida

Nov 26, 2020 9:14 am

You have been SO helpful. Thanks very much. I'm going to order 2 to start. I may need your help with other windows I have of different sizes.

Casey from SWISCO

Nov 30, 2020 8:38 am

I'm glad that we were able to help. Please let us know if you have any other questions!
