Hello,
I need help identifying the correct replacement part for my window channel balances.
Thanks,
Alysse

5 user uploaded images

4 Replies

Bob from SWISCO

Apr 27, 2026 1:55 am

Hi Alysse. I am sure we can help but we need a little more information. Can you write out the exact length of the metal channel, not including the nylon attachments at both ends? Can you show me any stamp on the metal channel? We'll try and help from there.

Home Owner from Vancouver, WA

Apr 28, 2026 12:22 am

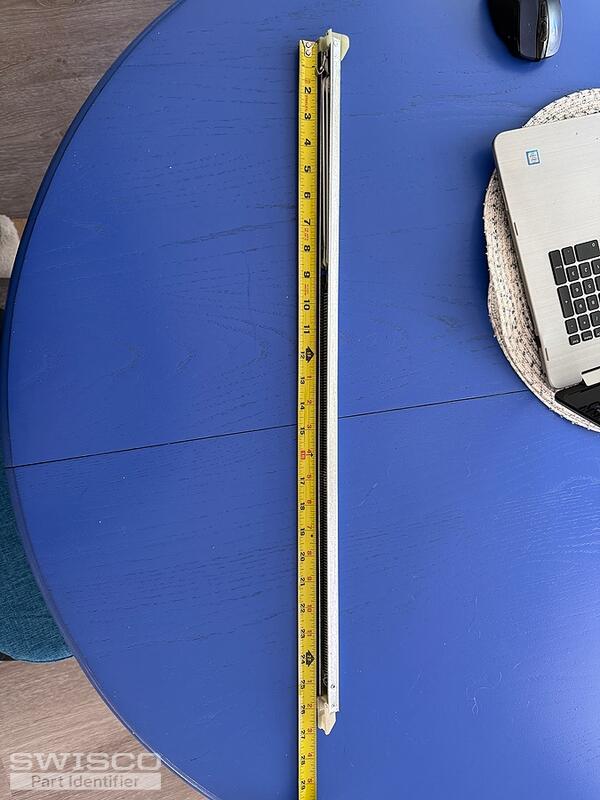

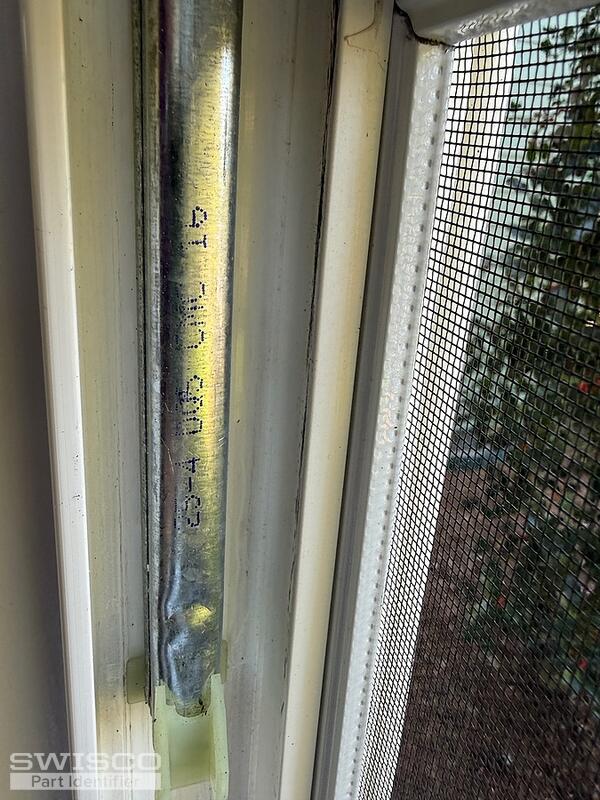

The exact length of the metal is 26 inches. The markings on the part are not very legible but I attached a photo.

1 user uploaded image

Bob from SWISCO

Apr 28, 2026 3:34 pm

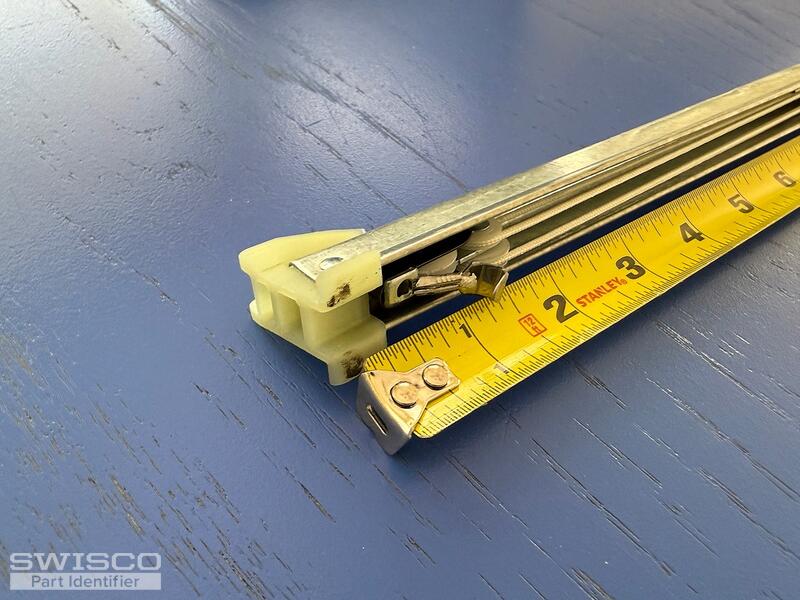

Perfect, thanks. This looks like either an S380-26 or S385-26 Channel Balance. The only difference between these two balances is the 'depth' of the bottom shoe. See below. Measure your old shoe depth to see what matches best. For a stamp option choose 2540.

Comparison of the S378, S380 and S385 balance shoes.
