Identify Replacement Casement Window Part

A home owner from Connecticut says:
The part is approximately 5 1/2 inches

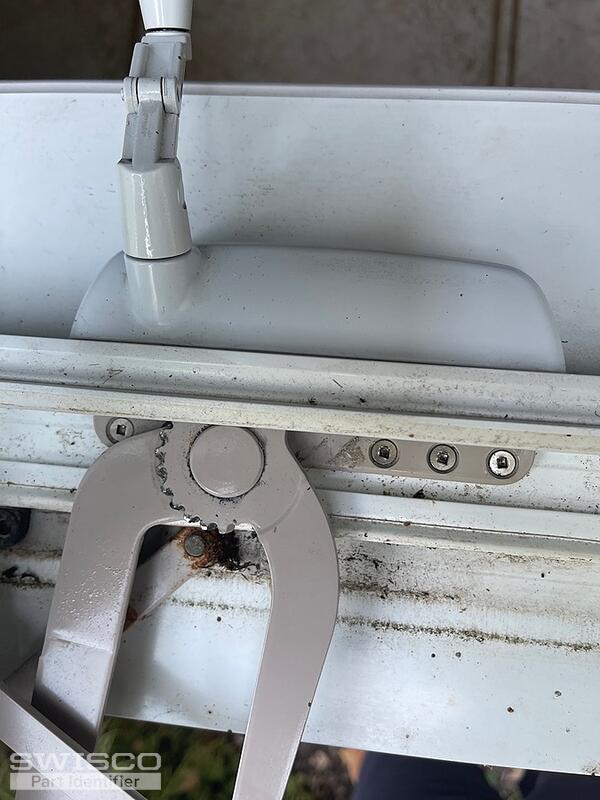

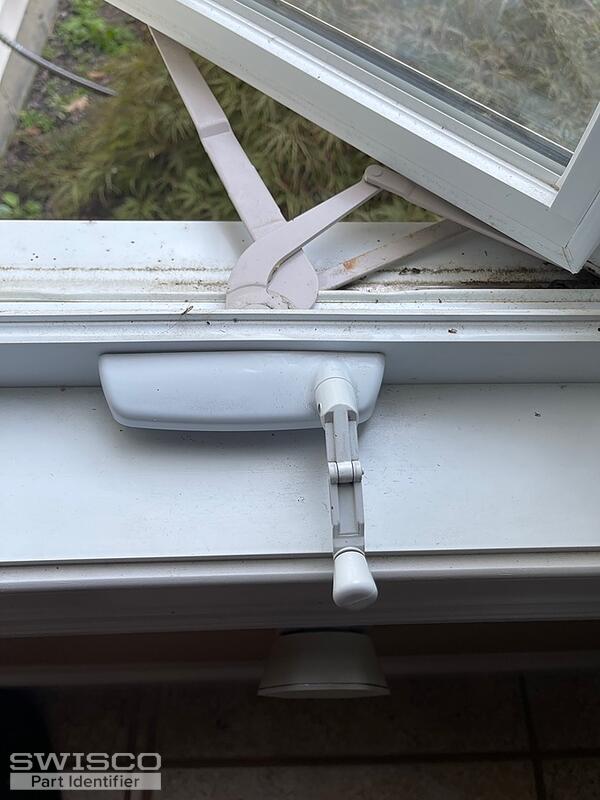

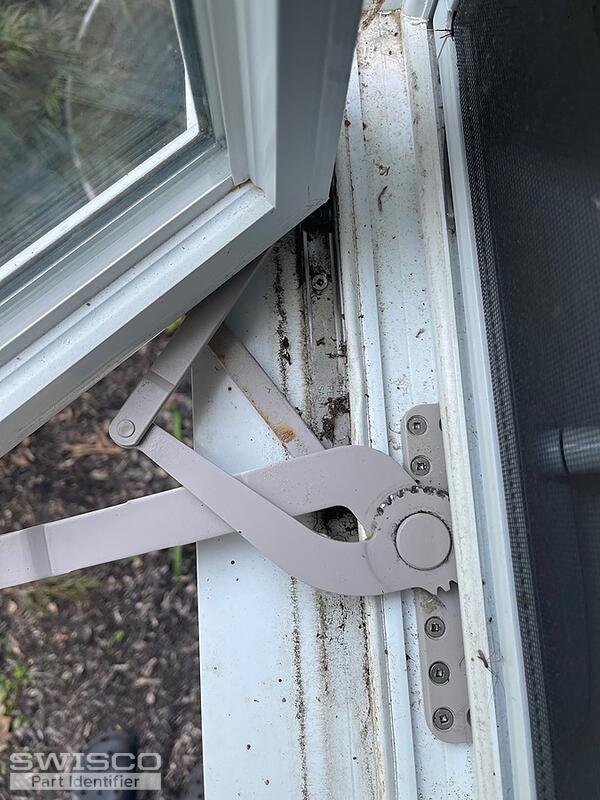

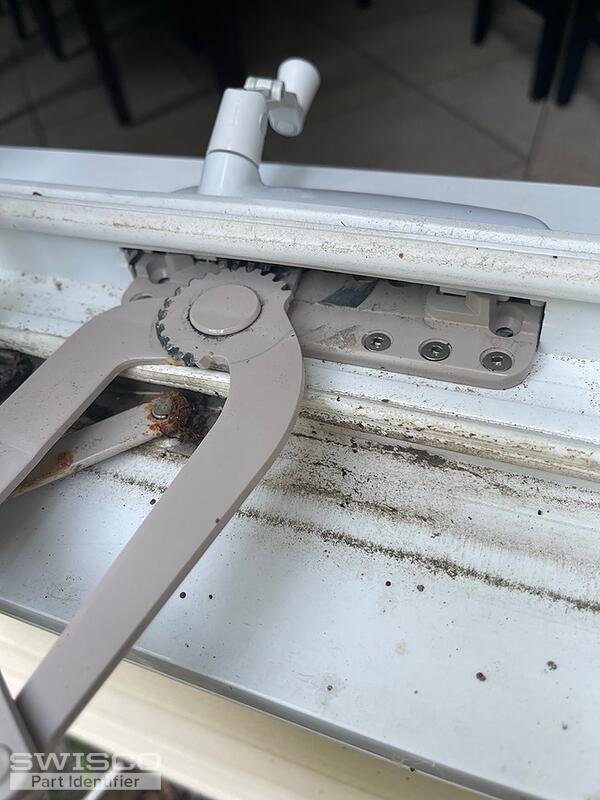

Thumbnail of the uploaded file named IMG_3976.jpg
Thumbnail of the uploaded file named IMG_3977.jpg
Thumbnail of the uploaded file named IMG_3984.jpg
Thumbnail of the uploaded file named IMG_3985.jpg
Profile picture of Tom
Tom from SWISCO responded:

Your operator looks like it's either our 39-253LB or 39-438B, depending on the design of the guide at the end of the arm. The video below will go into more detail as to how to pick between these two options.

In either case, we also sell the 39-451 cover.

A home owner from Connecticut says:
Thank you. The video was helpful and it is the 39-253LB. I will place an order.

Thanks
Profile picture of Tom
Tom from SWISCO responded:

Thanks! We appreciate it. If you need anything else, feel free to ask.
