A 7L (Pretty faded) is stamped on the balance.

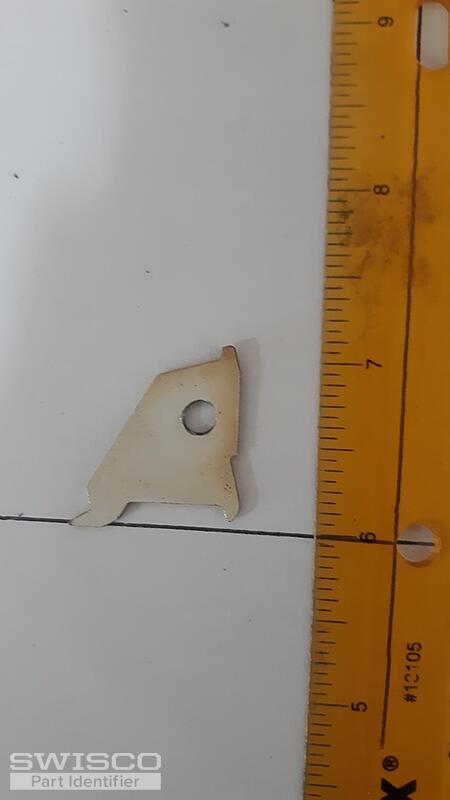

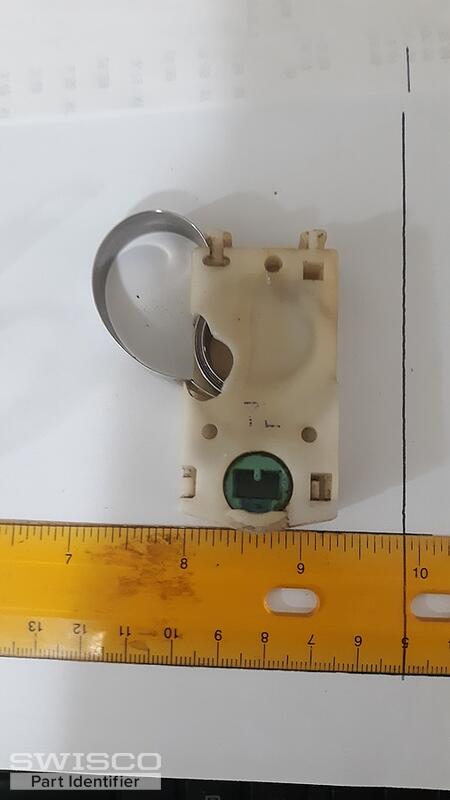

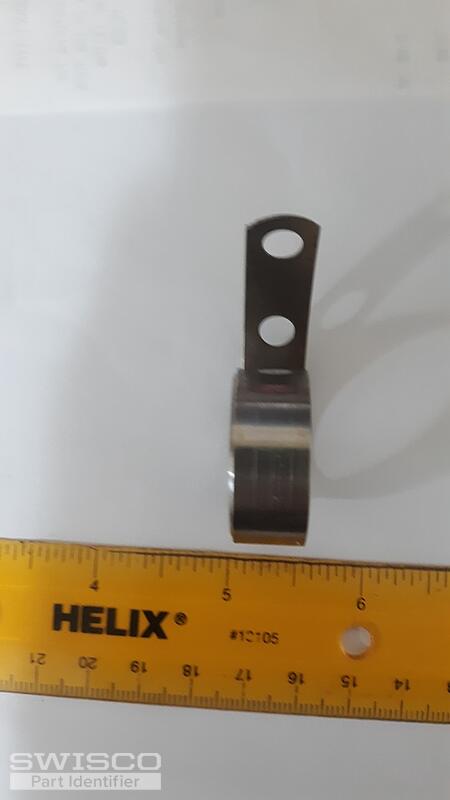

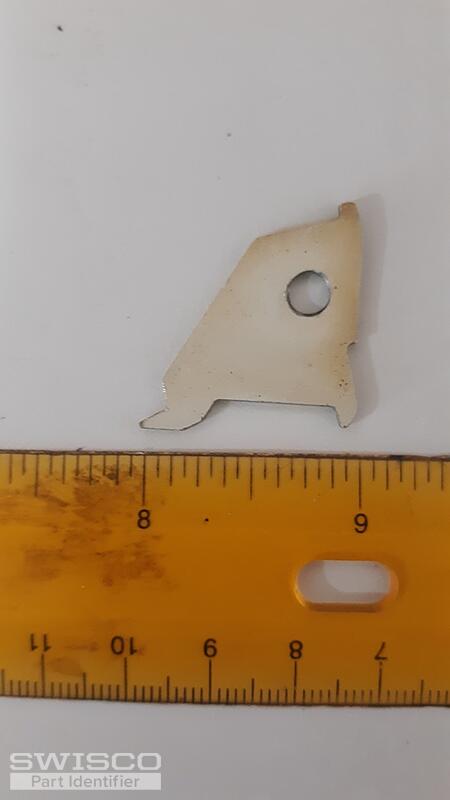

These two parts came out of the window track on the right side of the window, looking from the inside--out.
I'm believing the parts on the left side of the window are similar.
Do they come as a set or do they have to be ordered individually?
I need to repair two of these same style windows.
There is a third piece that came out of the track as a part of the coil at the top but I was at my limit for pictures. I can send it if you need it.
Thank you in advance for your assistance. Looking forward to your reply.
Val.
Identify Window Balance, order parts.
Quick Learner from Racine Wisconsin
May 24, 2023 11:50 am
5 user uploaded images
3 Replies
Quick Learner from Racine Wisconsin
May 24, 2023 11:54 am
Referred to Ref. # D290126
2 user uploaded images
Emily from SWISCO
May 24, 2023 12:29 pm
Hi there, Val.
Our 15-087 pivot shoe looks like a good match for what you show here. This part is designed to use the Series 180 coil springs and 16-024 mounting bracket. You will also need the S180-7 7-pound spring based on the 7 stamp on the pivot shoe. Take a look and let me know if you have any questions.
