Identify balancer in attached pictures

Handy Person from Red bluff , ca
Sep 2, 2024 8:49 am

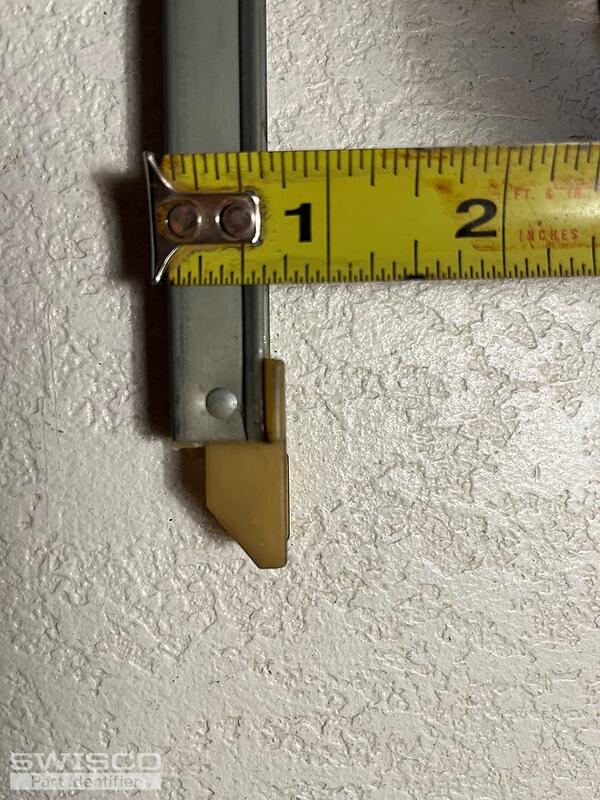

Need four balancers and 2 frame stop clips

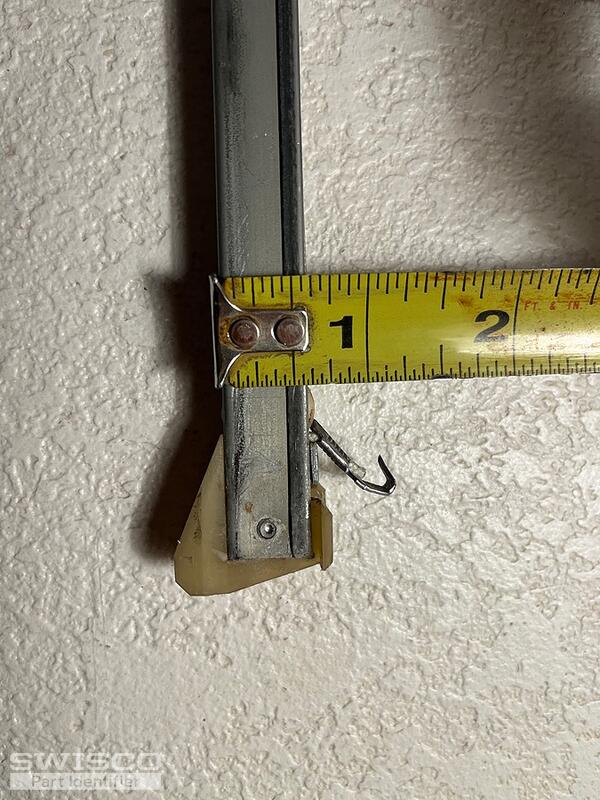

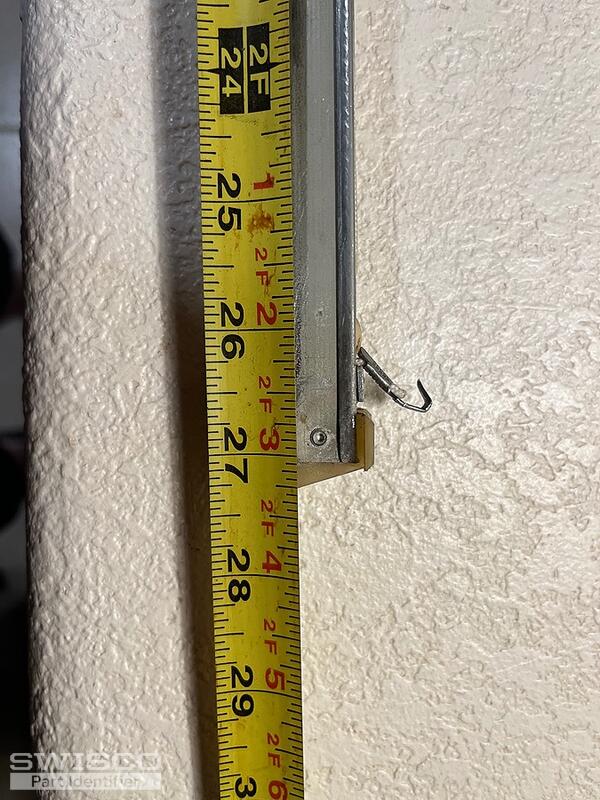

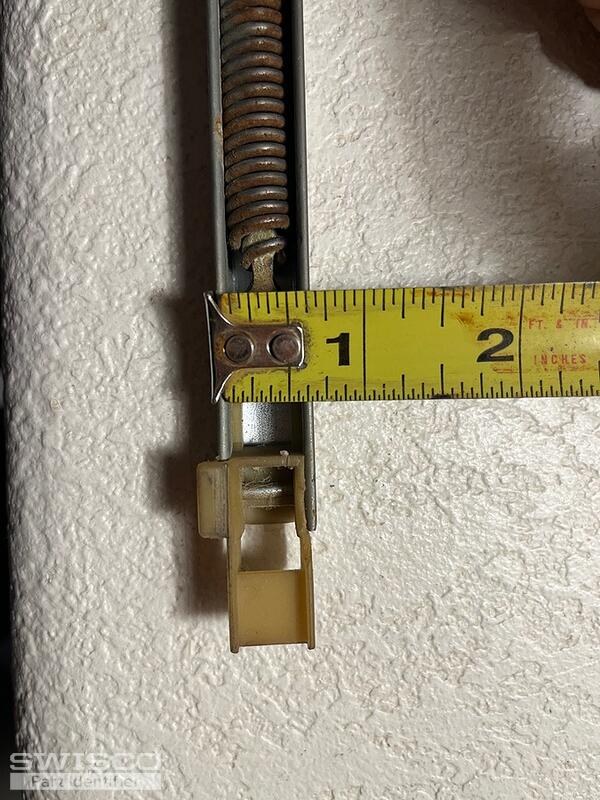

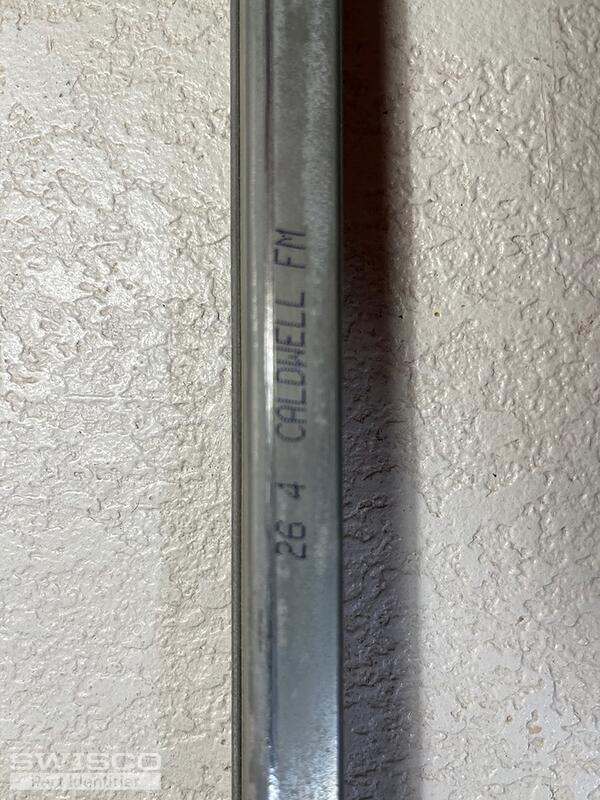

26 4 stamp winged top fitting winged top fitting bottom shoe bottom shoe
5 user uploaded images
5 Replies
Emily
Emily from SWISCO
Sep 5, 2024 1:05 pm
SWISCO
EXPERT

Hello there!

We're happy to help with this. Can you also show us a photo of the inside of the metal channel where the innerspring connects to the pulley mechanism? That'd be located in the middle of the channel

I'm not sure what stop clips you're referring to. Could you remove one from the window and show us a photo?

Handy Person from Red bluff , ca
Sep 5, 2024 5:32 pm

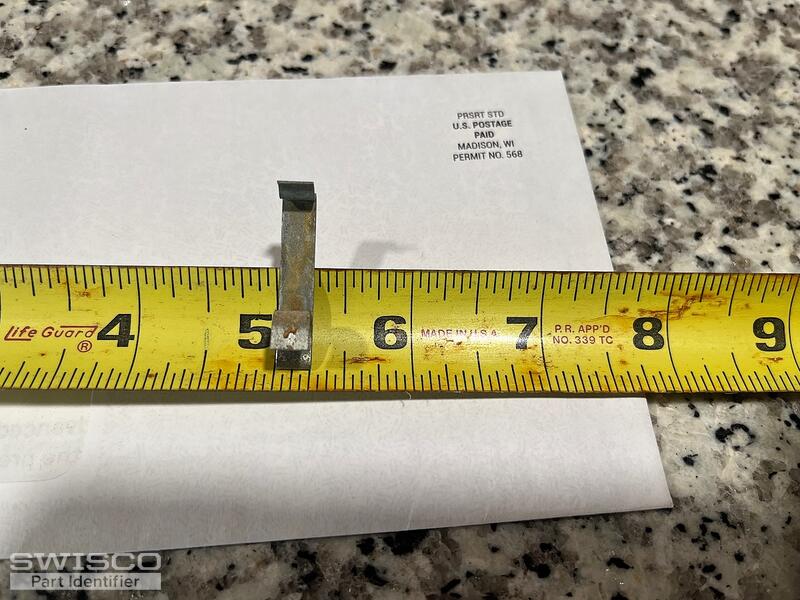

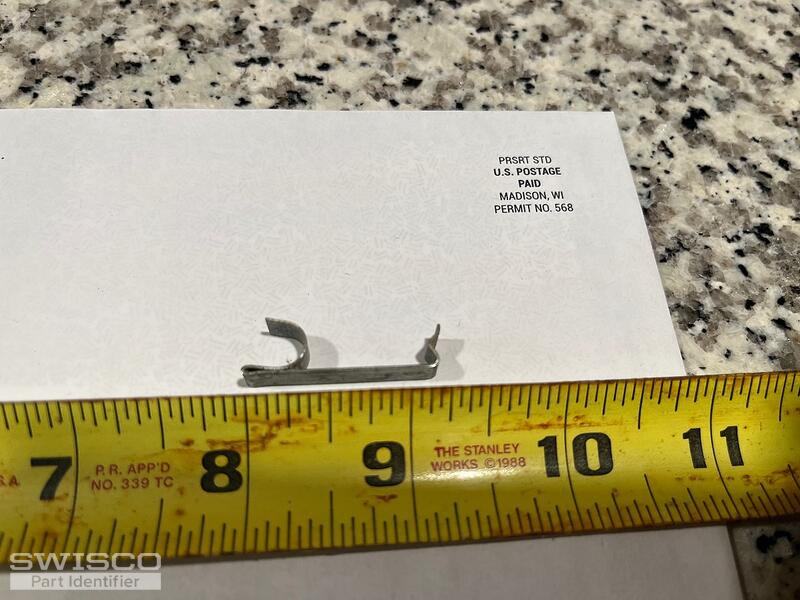

Attached are pictures of the clips. I should get 4 of them. Thanks

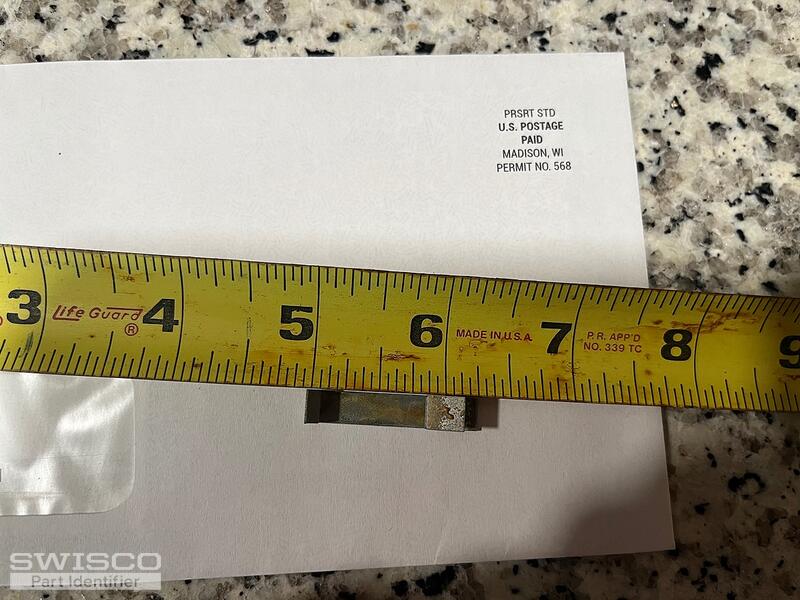

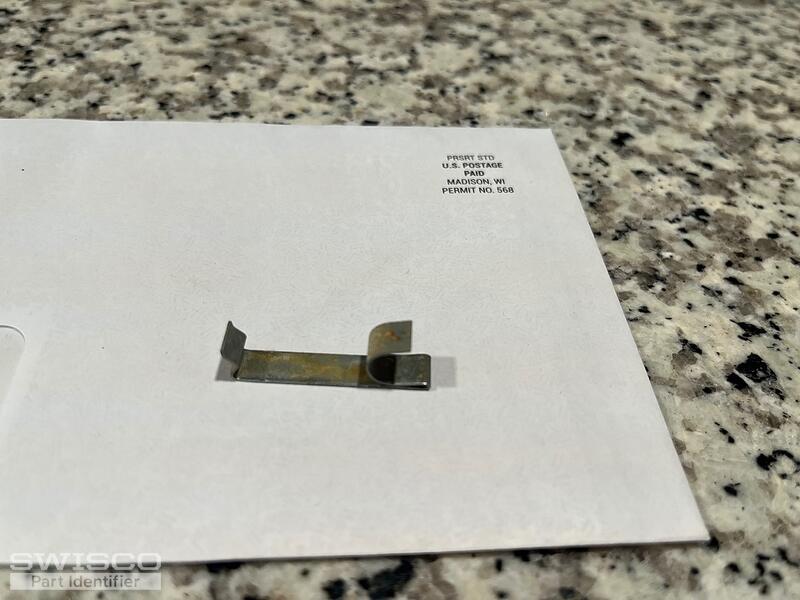

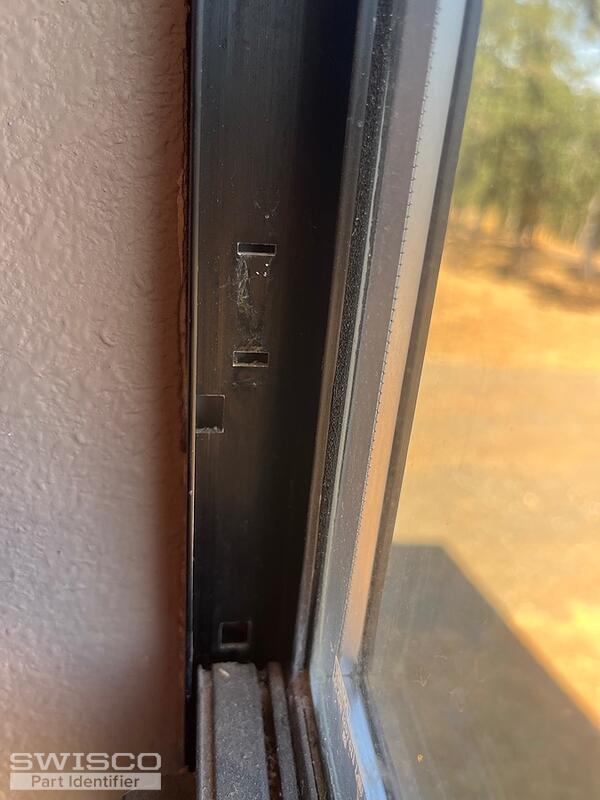

take out clip take out clip take out clip IMG_0099 IMG_0095
5 user uploaded images
Emily
Emily from SWISCO
Sep 6, 2024 8:25 am
SWISCO
EXPERT

Thank you for the additional photos! The take out clip looks like a match for the 16-002. My apologies I should have been clearer; we need to see the inside of the balance's metal channel, not the window channel.

Thank you!

Handy Person from Red bluff , ca
Sep 6, 2024 8:46 am
Here it is

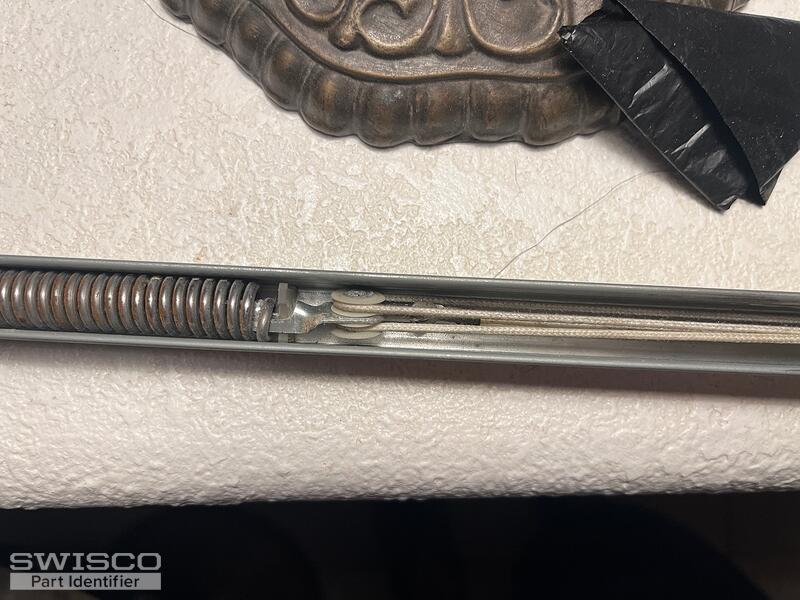

spring connection
1 user uploaded images
Emily
Emily from SWISCO
Sep 6, 2024 8:59 am
SWISCO
EXPERT

Thank you kindly! Based on what I see here, you can use the S380-27 or S385-27 with the 2640 stamp option. The best match depends on the depth of the bottom shoe so you'll have to measure as shown below.

Let me know if you have any questions!

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
