Identify broken window coil balance

Question

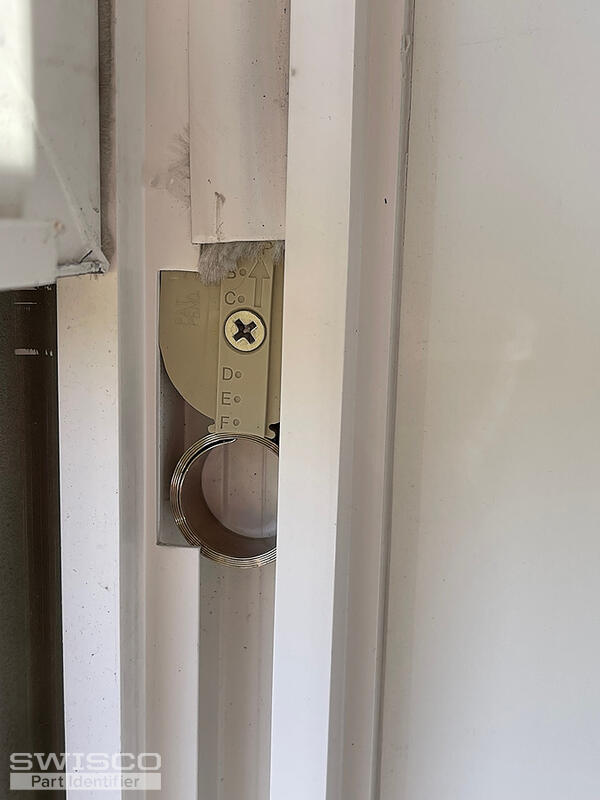

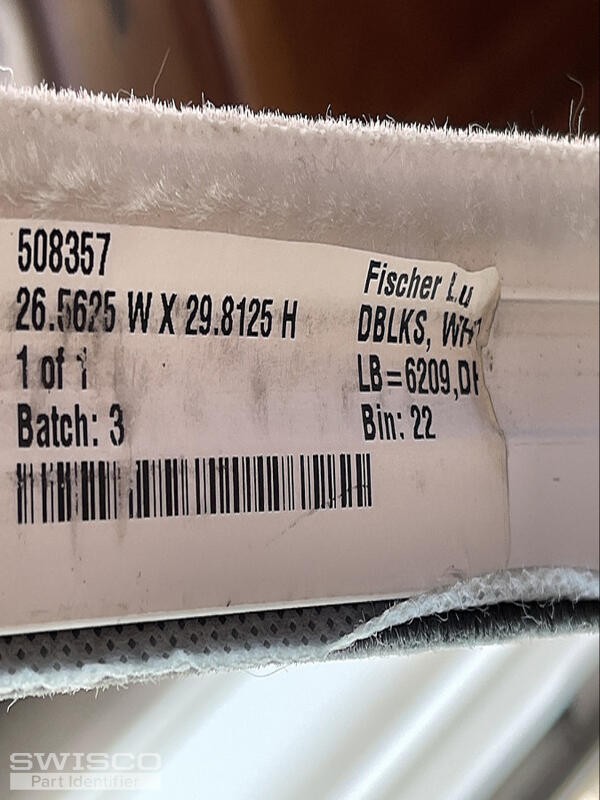

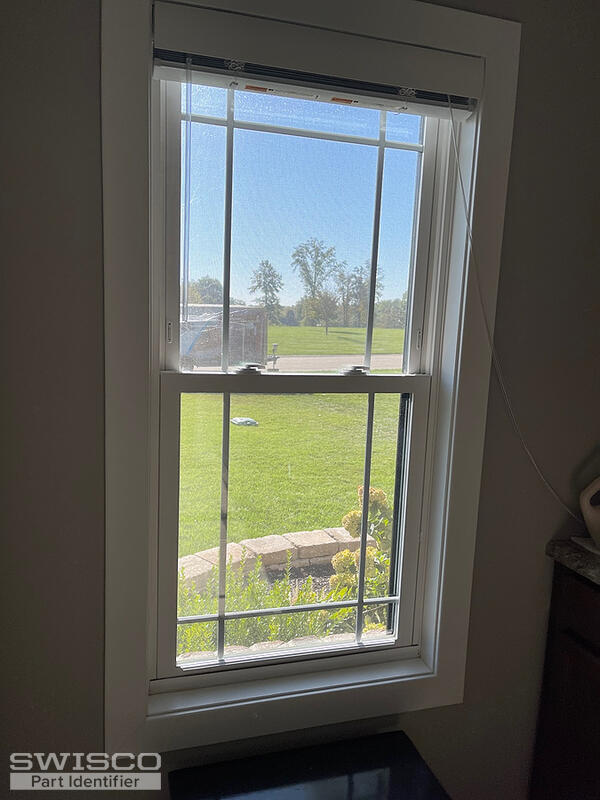

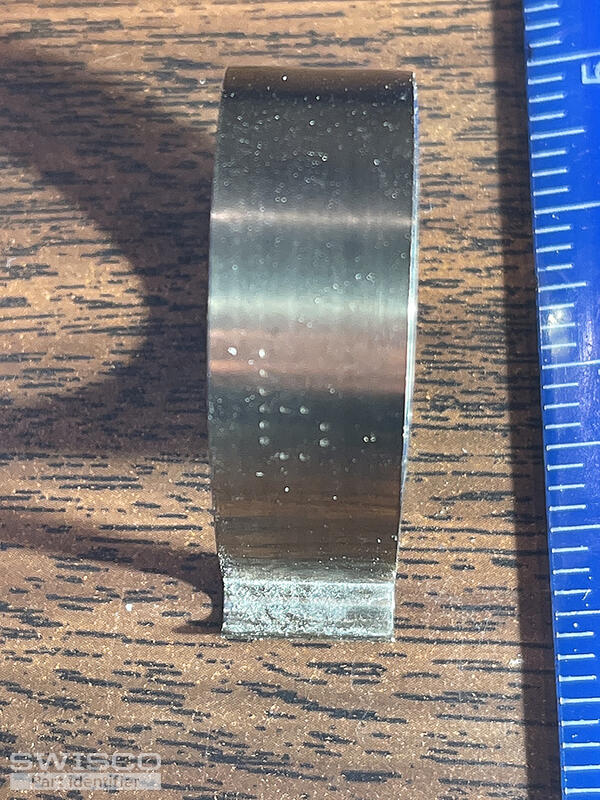

Midway Window - tag is from Fischer Lumber with either the model number or order number, not sure, but it does give window dimensions.  Both coil balances have broken.

Paul · Accepted Answer

Hello,

I'd recommend using the 15-177 pivot shoe and Series 152 coil springs. Please note that these parts work a little differently than your original springs because the spring screws to the shoe instead of hooking onto it but it should still work.

You'll also need to check the old spring for a stamped number that you can match to one of our corresponding strength options on the S152 product page. Thanks for posting.
