Identify my part
Home Owner from Orlando
Aug 27, 2017 8:07 pm

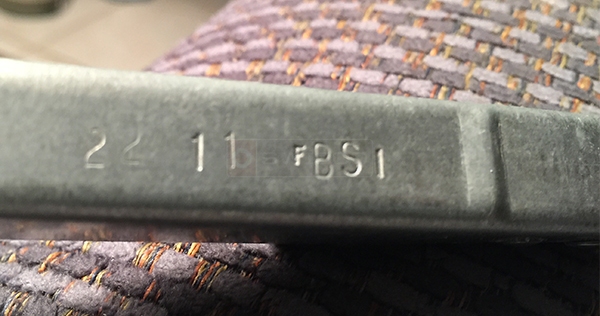

The characters stamped on my balance are 22 11 FBS1. Which replacement do I order?
2 Replies
Tom from SWISCO
Aug 30, 2017 10:40 am
Hello! That code doesn't identify the balance, surprisingly. Channel balances can be identified by comparing the plastic attachments.
Use our handy channel balance guide to try to figure out which Series you need. Then, measure the metal channel from end to end to select your balance length.
Finally, you'll need to remove your sliding window sash from the frame and weigh it. The weight can be compared to a chart on the balance webpage (once you select the Series and length) to determine the strength "option" that you need to buy.
Use our handy channel balance guide to try to figure out which Series you need. Then, measure the metal channel from end to end to select your balance length.
Finally, you'll need to remove your sliding window sash from the frame and weigh it. The weight can be compared to a chart on the balance webpage (once you select the Series and length) to determine the strength "option" that you need to buy.
