Identify repair part

A quick learner from TX says:
May 30, 2020

Hello:

I have attached photos of two different pieces..

Piece 1 is ...

A Cast Aluminum part

Is installed in a channel located in the base of an aluminum extruded window.

The tip...which is broken off engages the spiral balance.

Piece two is a tilt latch

Thank You:

Jack

Thumbnail of the uploaded file named Window part view 1.JPG
Thumbnail of the uploaded file named Window Part View 2.JPG
Thumbnail of the uploaded file named Window Tilt Latch View 1.JPG

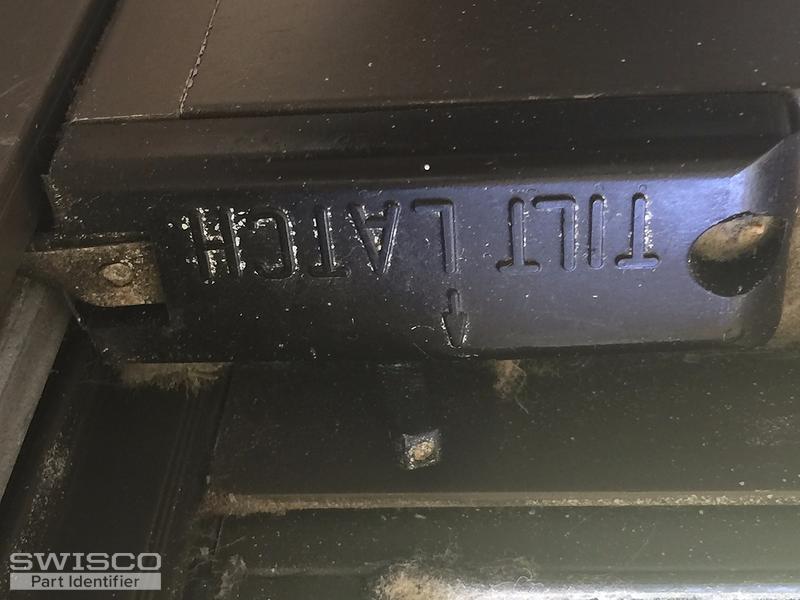

Thumbnail of the uploaded file named Window Tilt Latch View 2.JPG
Profile picture of Tom
Tom from SWISCO responded:
June 3, 2020

Hey, Jack. Based on your photos, I recommend our 26-056 pivot bar, as well as our 26-157 and 26-158 corner tilt latches. Look these products over and tell me if you agree.
A quick learner from TX says:
June 9, 2020
Hi Tom:

Thank you for the timely response. Not being native to your industry, your response gave me enough info to identify the correct Pivot Bar on your Web-Site. In my case this was your 26-041, based on the width of the pivot bar...mine was only 1/4" wide...and the one you suggested was 3/16, and the OAL.

I have already placed my order as a result of your assistance..!!

Thanks much..!!

Jack
