Identify window balance to replace
Home Owner from Oregon City, OR
Apr 18, 2026 7:46 pm

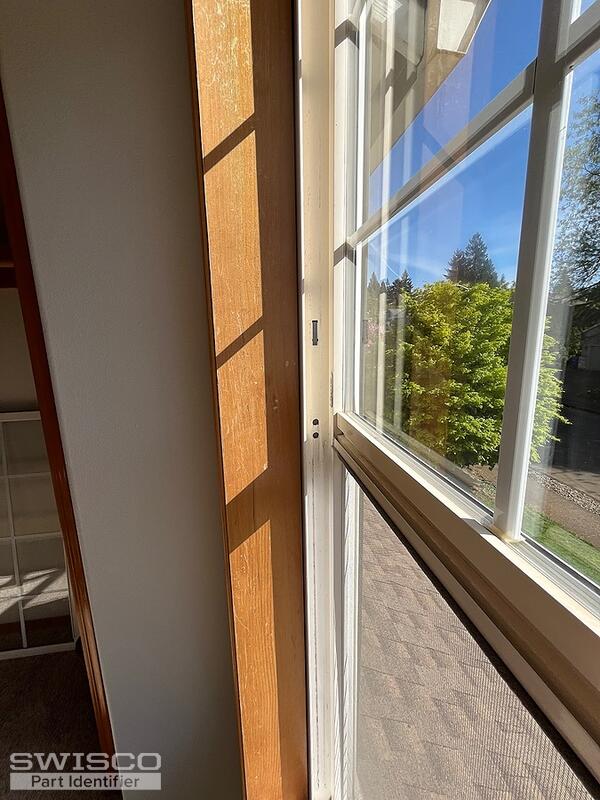

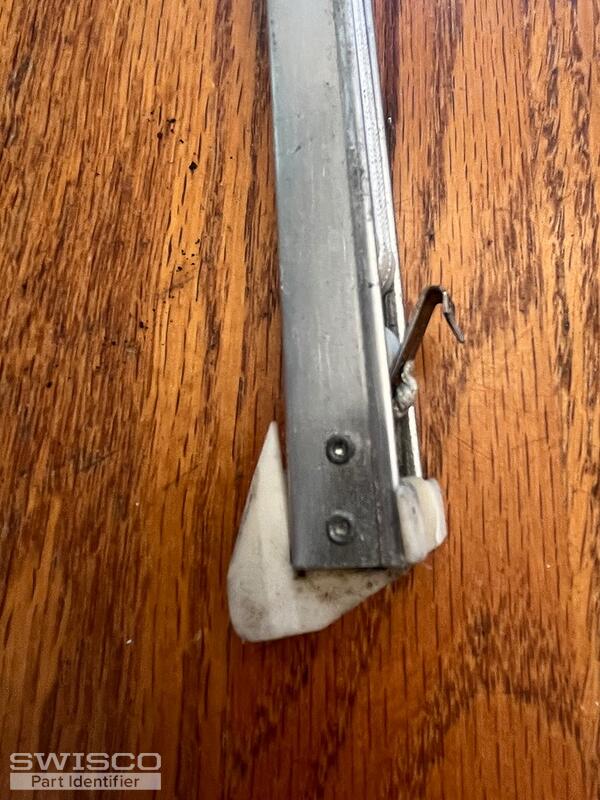

Pics show emboss on latch as mfg. (EPI?)Apparently out of business in 2010. My house built in '93. Width is 1/2", length is 26 1/16" metal and 27 1/16" plastic end to plastic end. Aluminum is stamped w/ #2540. Hopefully one of your replacement parts will work for me ?
5 user uploaded images
4 Replies
Bob from SWISCO
Apr 20, 2026 2:55 am
Hey there. This looks like either an S380-26 or S385-26 Channel Balance. The only difference between these two balances is the 'depth' of the bottom shoe. See below. Measure your old balance's shoe depth to see what matches best. For a stamp option choose 2540.
Comparison of the S378, S380 and S385 balance shoes.
Home Owner from Oregon City, OR
Apr 20, 2026 11:28 am
OK - bottom shoe measuring just over 1" so S385 looks to be the one - I'll go with that
Thanks for the help
Peter
Thanks for the help
Peter
Bob from SWISCO
Apr 20, 2026 4:03 pm
That makes sense to me, Peter--if it's any greater than 1", it's gonna be the Series 385 in this instance. Let us know if you have further questions.
