Identifying rollers in sliding doors

Handy Person from Bradenton, Florida

May 2, 2021 3:50 pm

Hi, I have a 3 panel sliding patio door on a lanai. Manufacturer was "Florida Extruders International" and it is a "Series 1000". Each door has two, single roller units on either end.

Looking to find a replacement model.

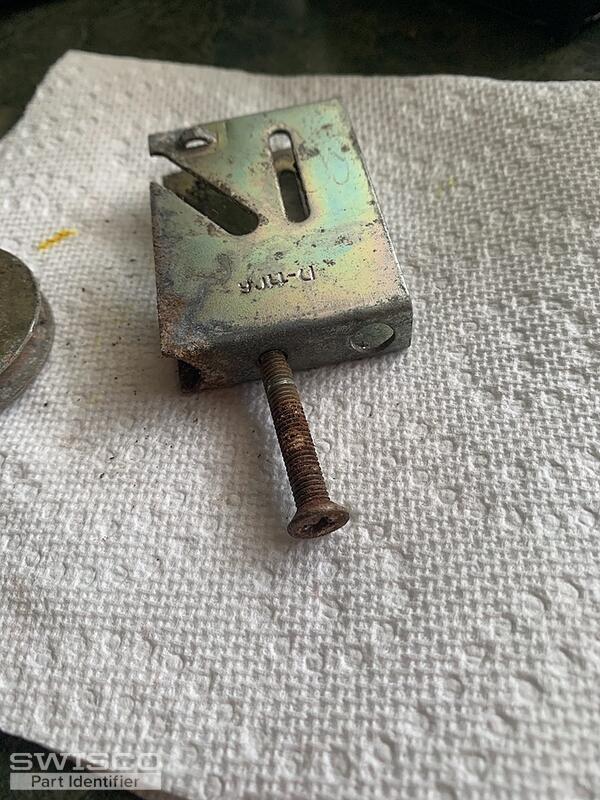

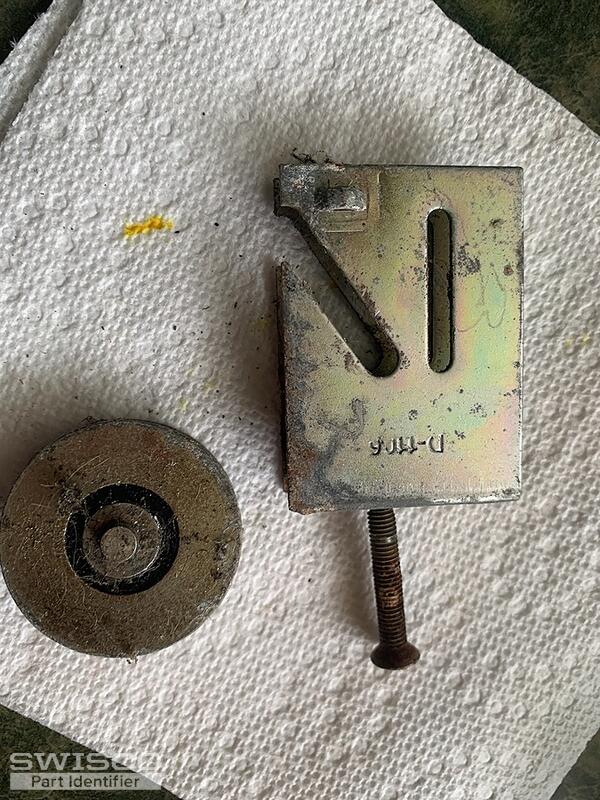

The picture shows the parts I removed. One part has "D-1106" printed on it.

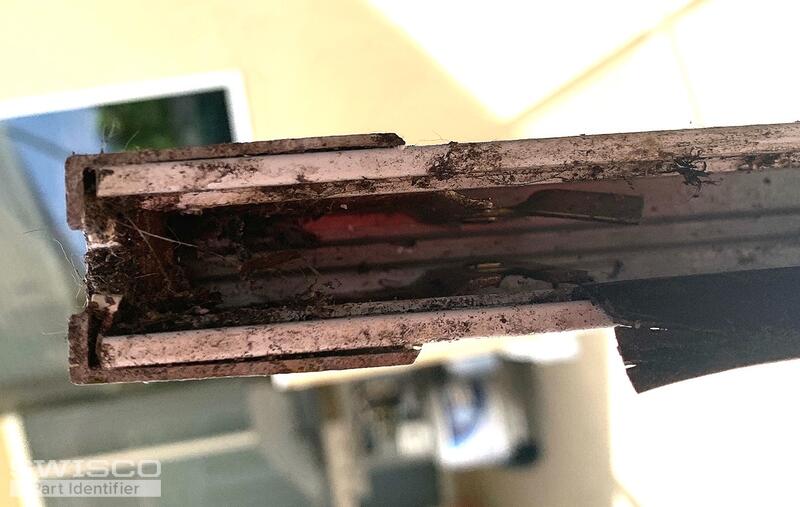

There are parts remaining inside the bottom of the door (I tried to get pic of this). Not sure how that part gets removed, if it is supposed to. Must be a trick to it that I'm missing.

Thanks,

Jerry

3 user uploaded images

7 Replies

Tom from SWISCO

May 5, 2021 1:47 pm

We can definitely supply this roller, but what you're showing me is just the internal housing. The part you see in the door still is the external housing, which is necessary to see to ID. If it doesn't come out after you unscrew it then you may need to top off the bottom rail of the door frame to access it.

Handy Person from Bradenton, Florida

May 8, 2021 1:53 pm

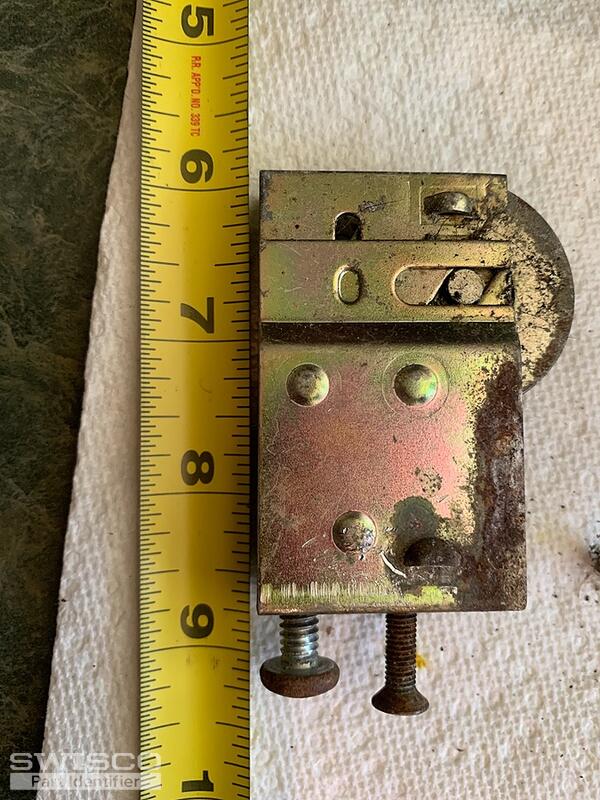

Thanks...I pulled a whole unit from the door.

The external housing is 1-9/16" tall x 2-3/16" long. Also, the roller is 5/16" wide.

Also, the outside width of the exterior carrier is 11/16"

1 user uploaded image

Tom from SWISCO

May 10, 2021 8:54 am

Thank you! The best match we seem to have in our inventory is the 81-245 roller. The dimensions match up almost exactly with one exception: the width on ours is 3/4", not 11/16". Could you double check that dimension to confirm? I'm hoping this is what you're looking for.

Also note the "arch" shaped gap at the bottom of the roller, right under the screw hole.

Alternate image for 81-245

Handy Person from Bradenton, Florida

May 10, 2021 10:02 am

I double checked, and it is 11/16 exactly. I could try this one to see if it will fit. However, one thing I noticed is that the adjustment screw on mine is at the bottom, and the attachment screw is at the top...opposite of 81-245.

Dave Sr. from SWISCO

May 10, 2021 12:23 pm

Thanks for confirming. In that case, take a look at the 81-020 roller. It has the same height and it has the width at 11/16". I also noticed that the adjustment screw is toward the bottom of the housing and the mounting screw is at the top. Looking at your photos the screws look like they are in the same location as yours.

Home Owner from Florida

Jan 2, 2023 1:06 pm

Hoping Jerry can say which model worked out. I have the same doors
