A home owner says:
Hi,
I am planning to place an order for spiral balance and pivot lock shoe

Details i have only those photos.

I am ordering 29" series 600 spiral tilt windows balance 9/16" and pivot shoe 9/16" thick

And spiral charging tool

I don't have the exact measurements

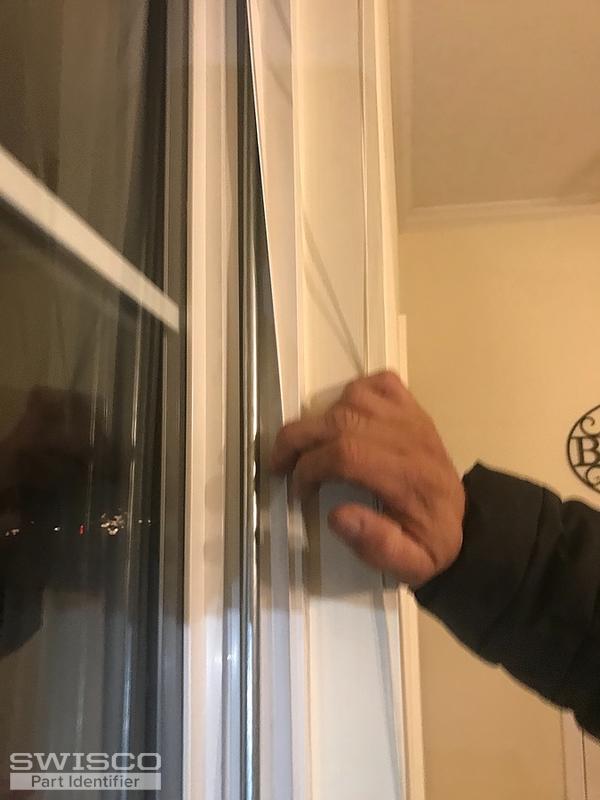

Thumbnail of the uploaded file named D7DF78CB-965D-4BC6-A1F5-48D46CC861C2.jpeg

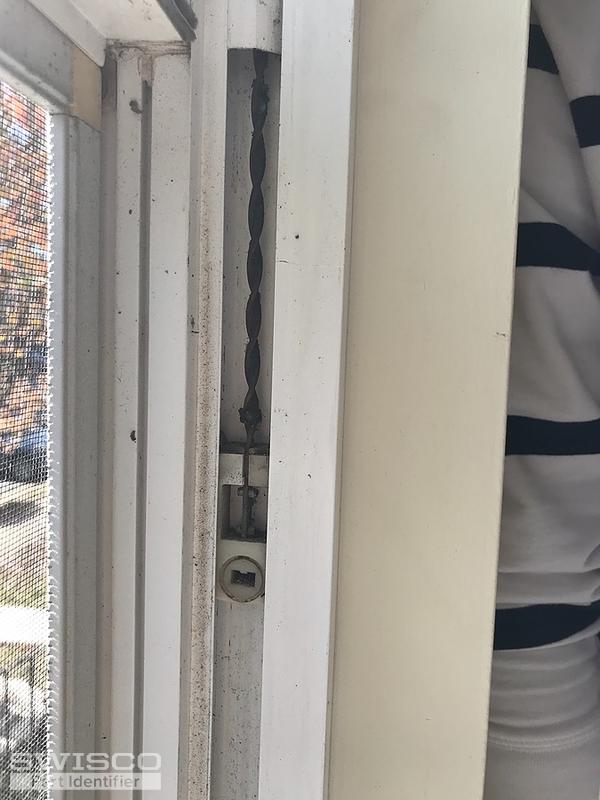

Thumbnail of the uploaded file named C3CA4987-C881-4B69-B1FC-07965B9EC322.jpeg

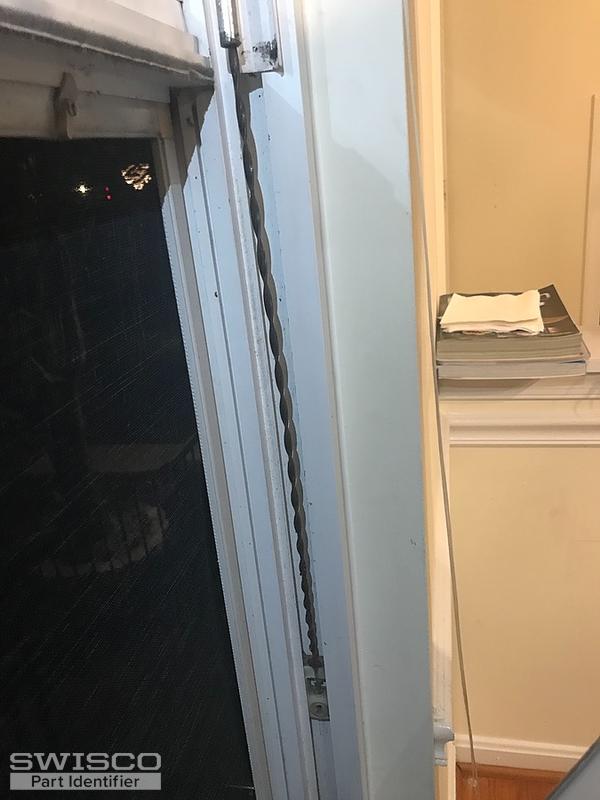

Thumbnail of the uploaded file named B0512788-4BBF-4E5C-A3ED-38735DFA074F.jpeg

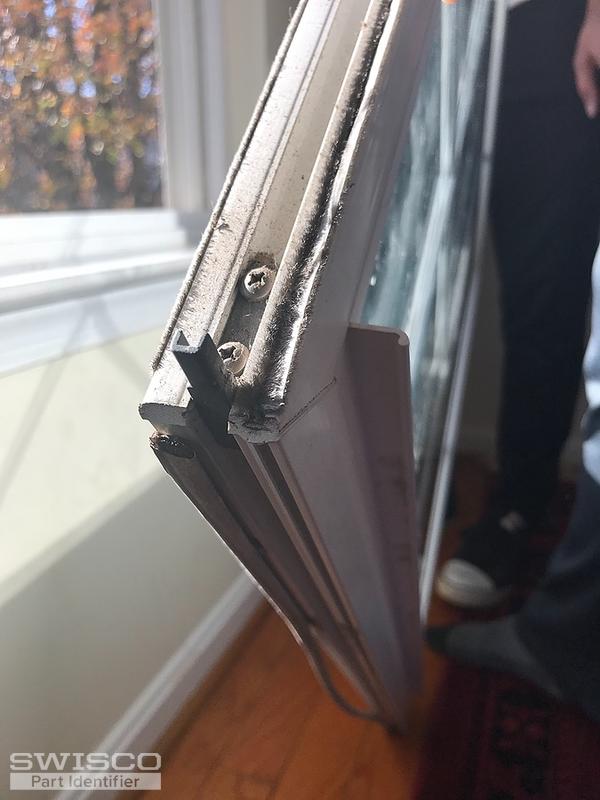

Thumbnail of the uploaded file named AD65BBFE-8647-4AF0-BFEF-2C9202DD4C85.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for posting. The pivot shoe may be our 15-046 , but I'd remove it to confirm the dimensions. See the video below.   All orders can be placed online.  When you find a part you want, simply click "Add to Cart," and then click "Checkout" at the top right hand corner of the screen. Don't forget to set the quantity! Let me know if you have further questions.
