Inside of window channel

Quick Learner from New Jersey

May 9, 2024 8:27 pm

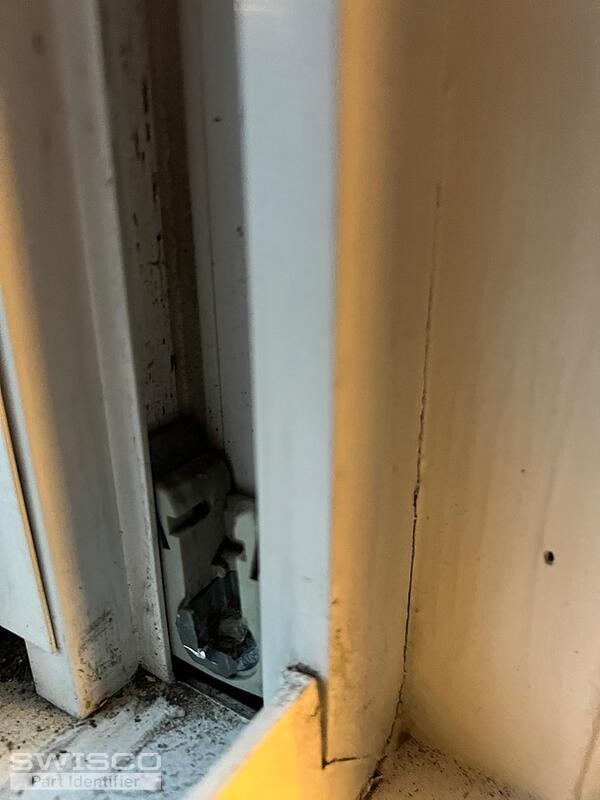

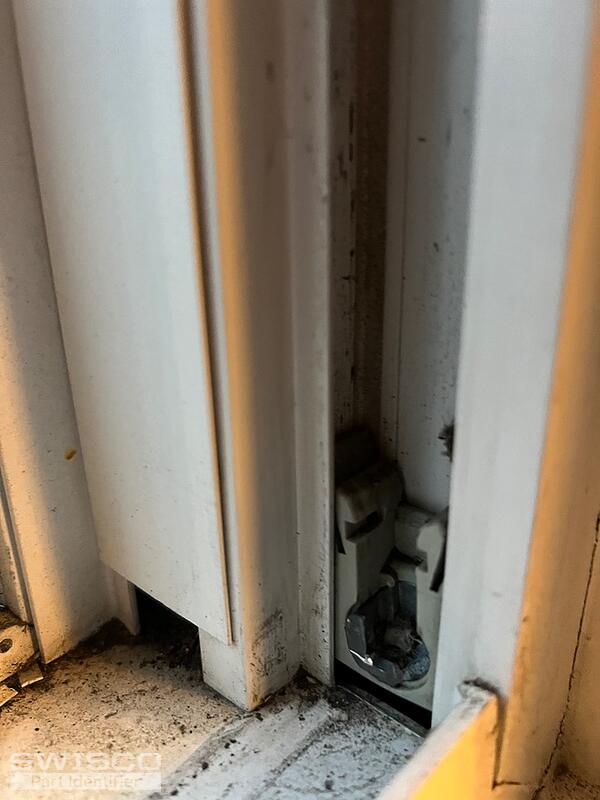

Hi, I'm trying to identify the metal piece that is damaged in my window. It will not stay in as these pieces are broken.

5 user uploaded images

4 Replies

Bob from SWISCO

May 9, 2024 9:28 pm

Thanks for posting. This looks like a 15-177 Pivot Shoe. This shoe connects with Series 152 Coil Balances. The coil balances are tensioned springs that regulate the movement of the window. Check to see if these are broken and need to be replaced. The video below shows how to remove coil springs for a different Coil Balance system, but the principles should apply. Let me know if you have further questions.

Quick Learner from New Jersey

May 9, 2024 9:53 pm

Thank you! I ordered that part and will give it shot. I appreciate hour help!

Bob from SWISCO

May 10, 2024 11:53 am

Awesome, thank you! Please let me know if you had any follow up questions. We're always here to help.
