Inverted Block and Tackle with Tee shoe

A quick learner from Hamilton, NJ says:
September 18, 2020

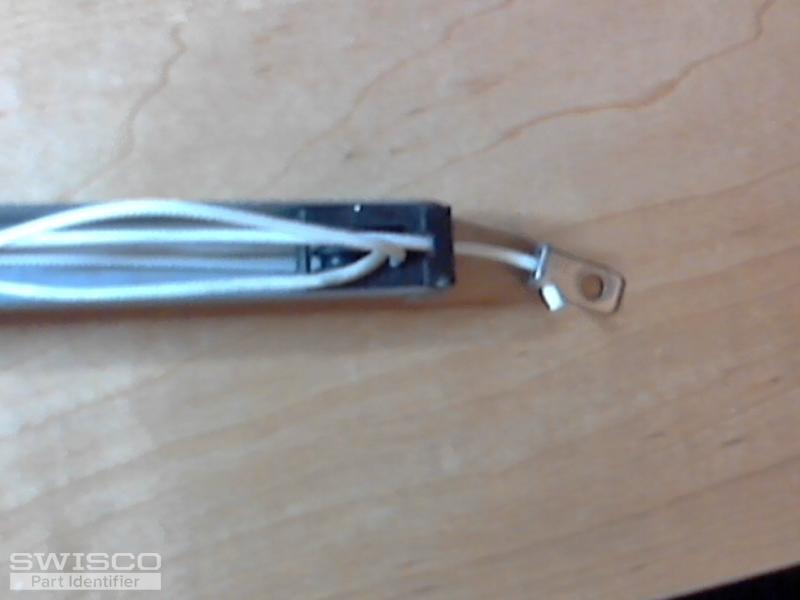

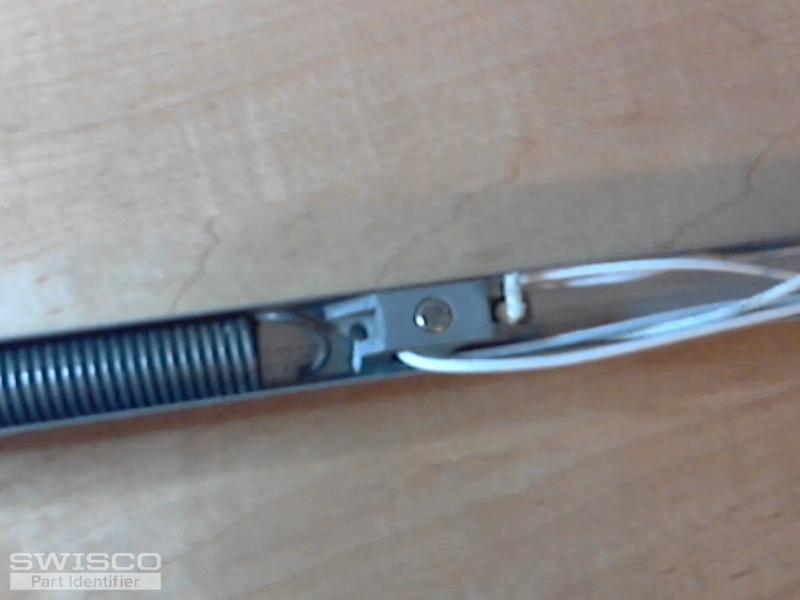

Metal channel is 30" long; 1/2" wide; stamped:

BSIN

RC

30C

Unknown make.

I need 2 (two).

Thank you.

Mike

Thumbnail of the uploaded file named webcam-9/18/2020, 3:39:35 PM.png
Thumbnail of the uploaded file named webcam-9/18/2020, 3:40:00 PM.png
Thumbnail of the uploaded file named webcam-9/18/2020, 3:40:10 PM.png
Thumbnail of the uploaded file named webcam-9/18/2020, 3:40:29 PM.png
Thumbnail of the uploaded file named webcam-9/18/2020, 3:40:47 PM.png
Profile picture of Bob
Bob from SWISCO responded:
September 23, 2020

Hey Mike. This looks a lot like our Series 795 to me, but that bottom T-Lock Shoe is a bit unusual. I'm forwarding this discussion to one of my senior colleagues just to make sure there's nothing off here, and I'll get back to you as soon as we can with more insights.
A quick learner from Hamilton, NJ says:
September 23, 2020
Thank you Bob. Look forward to what you find out
Profile picture of Paul
Paul from SWISCO responded:
September 24, 2020

The manufacturer of your window balance has gone out of business. When I was replacing these balances, I would use Series 795. You would need S795-30 with a stamp option of 30C. Your bottom T-Lock shoe looks to be 1" wide, so you will also need the 15-194, sold separately. The video below shows how to install this shoe.
30" Series 795 Channel Balance
30" Series 795 Channel Balance
S795-30
$13.87
Tilt Sash Pivot Bar, 2-1/2"
Tilt Sash Pivot Bar, 2-1/2"
26-360
$1.97
1" T-Lock Balance Shoe, Closed Cam
1" T-Lock Balance Shoe, Closed Cam
15-194
$2.05
