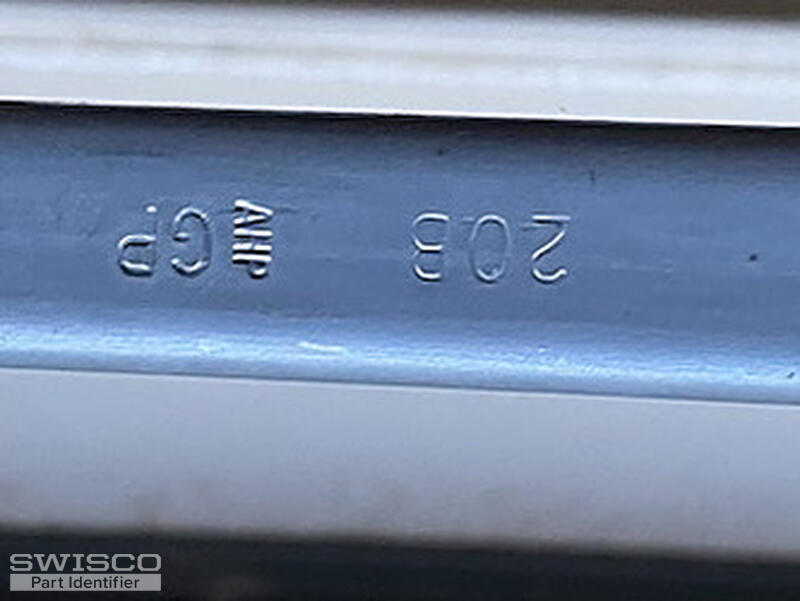

Inverted Tilt Balance 20B GP and shoes - need replacements

Home Owner from Morristown, TN
May 13, 2024 5:36 pm
Need 8 sets of replacements for the balances and shoes please.

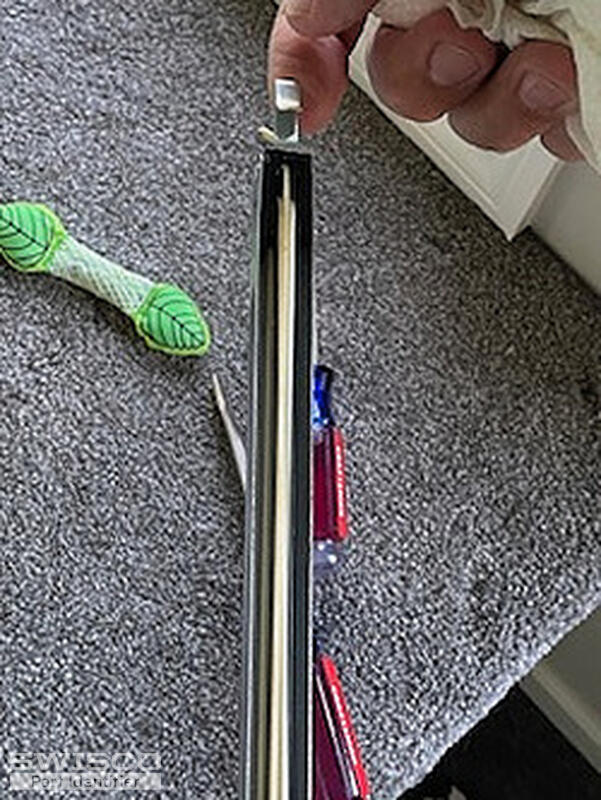

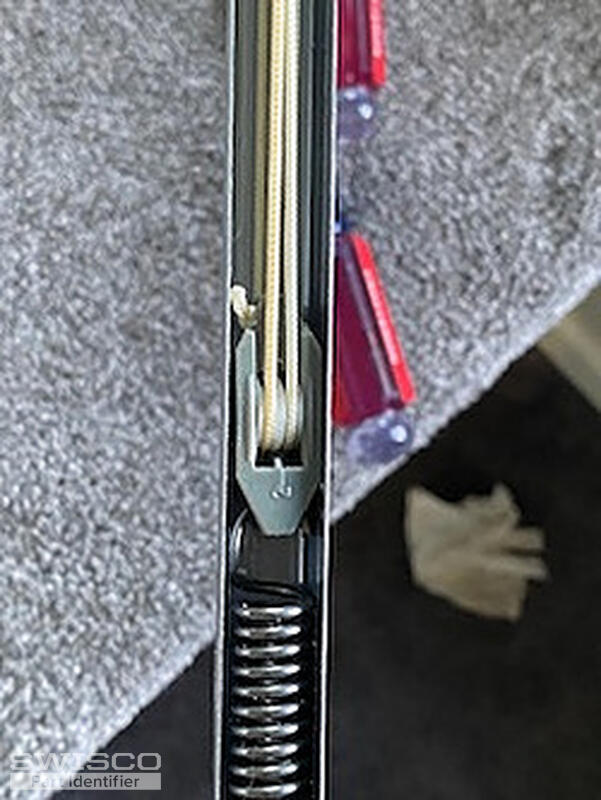

IMG_1627 IMG_1626 IMG_1625 IMG_1624 IMG_1623
5 user uploaded images
1 Replies
Tom
Tom from SWISCO
May 16, 2024 1:32 pm
SWISCO
EXPERT

Thanks for reaching out to us. We can supply this balance, but it will have to be a custom order due to its configuration. What you have here is a match for our Series 795 balance but with a hook installed at the top instead of a screw-tab. That's something we can make for you in our warehouse before we ship it out.

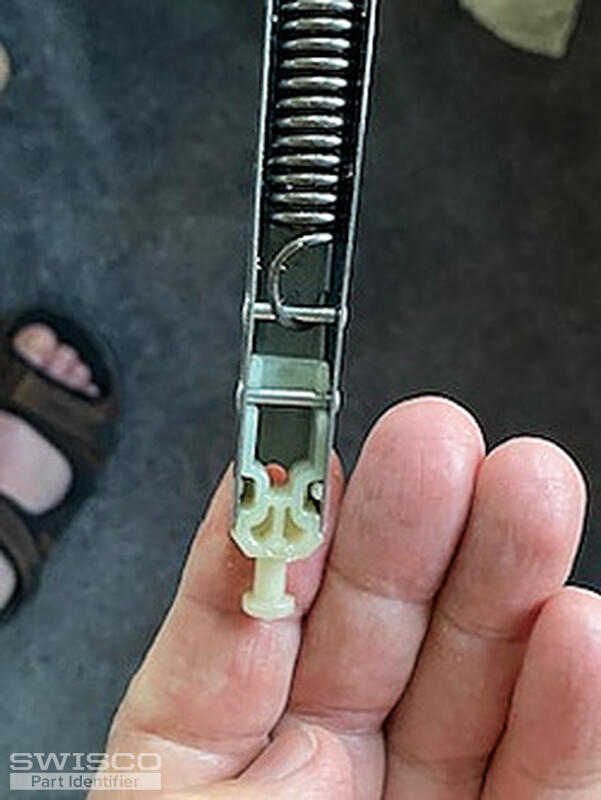

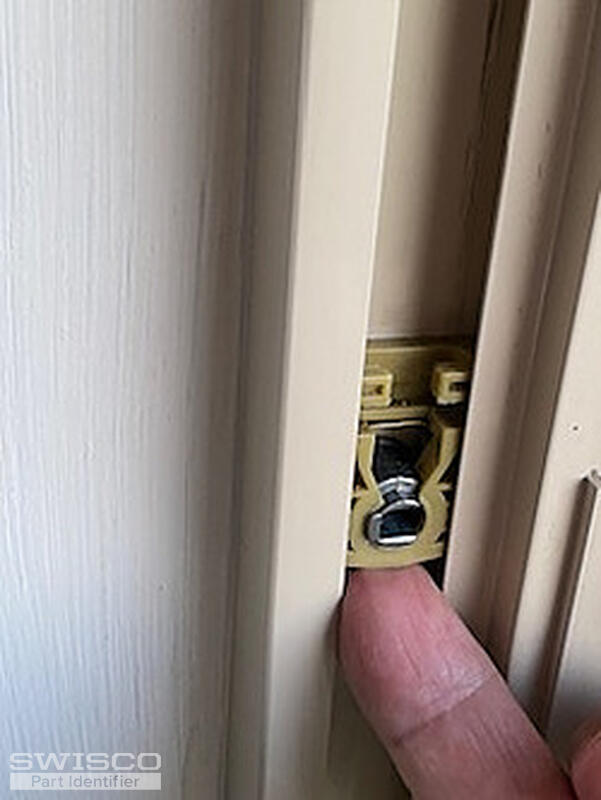

In addition to that, you'll need a handful of other components that are sold separately. Start with the 15-224 inverted link: this will need to be swapped out with the "T" lock shoe that comes with our balance by default. These pop on and off very easily so it can be done by hand. You can also reuse the original if it's in good condition. You will also need the 15-216 pivot shoe, but as above you can reuse the original if it's in good condition.

Otherwise, both the shoe and inverted link are sold separately, so if you want to buy them don't forget to add them to your cart!

What I'll do now is email you a purchase link and price quote that will let you add 8 individual balances to your cart. You may the checkout as normal.

If you had any questions or if you wanted to change the quantity, let me know and I'd be happy to assist you.
