Inverted window balance broken

Quick Learner from Tennessee

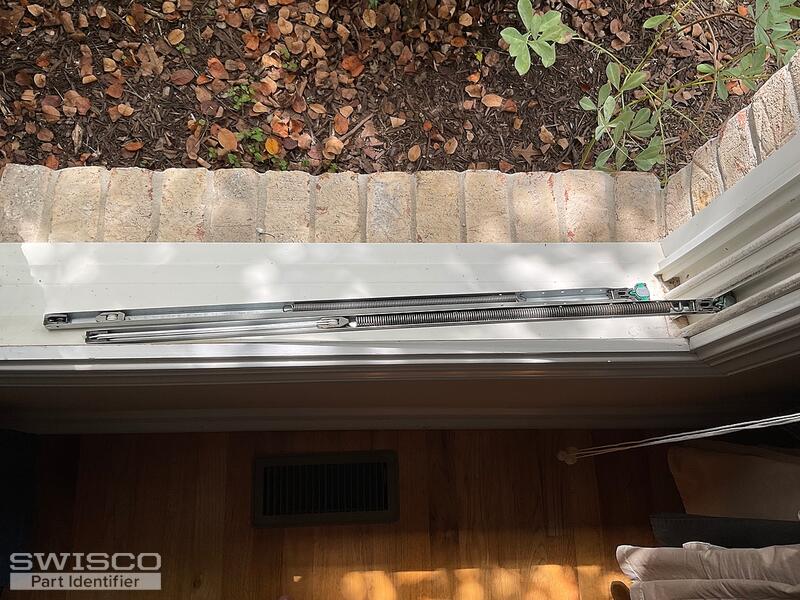

I need to replace the inverted window brackets on a tilt double hung window. The stamp on the brackets is 26B. The shoe is 1' wide. Please see pictures.
4 user uploaded images
6 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. It looks like you might have an S795-26, stamped 26B, with a 1" 15-194 shoe. The 15-194 is sold separately, but it's an easy matter of swapping it out with the 1-1/4" shoe that comes by default with this balance. The video below explains the process.

One final detail to consider however: how does your balance attach at the top of the window track? At the end of the nylon cord there should be either a screw clip, or a hook like the 15-198. Check an undamaged balance to verify. If it uses the screw clip, go ahead and order the S795-26 (26B) as well as the 15-194 shoe; however if it uses the 15-198, please let us know, as this is not a stock item, but we'll be able to construct it for you.

Quick Learner from Tennessee

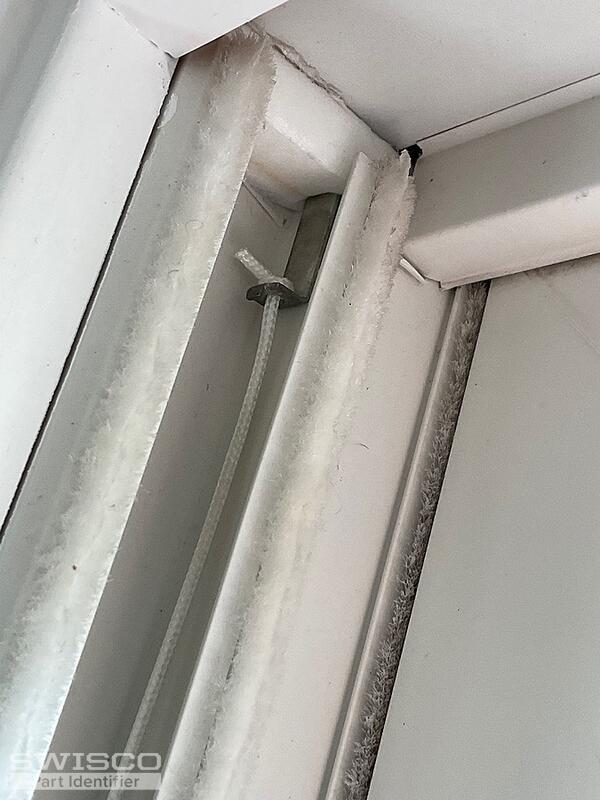

Thanks for the quick response. I believe it uses the 15-198 hook. I am attaching another picture to verify.
1 user uploaded image
Bob
Bob from SWISCO
SWISCO
Expert

Thank you! I appreciate you verifying.

In that case, this will have to be a custom order. To reiterate from the top what we'll be making, it would be an S795-26 channel balance with a 26B stamp, 15-194 bottom shoe, and 15-198 top hook.

If that looks good to you, please just let me know how many you wanted to buy. Once I have that count, I'll email you a purchase link and price quote that you can use to place an order on our site.

Quick Learner from Tennessee
I would like to order two (one for each side of the window.
Bob
Bob from SWISCO
SWISCO
Expert

Sounds good! I'll email you that custom order link right now.

Please let me know if you had any other questions and I would be happy to assist you.
