Is this the 15-177?

Start a new Discussion

Quick Learner from Staten Island

May 16, 2020 8:41 am

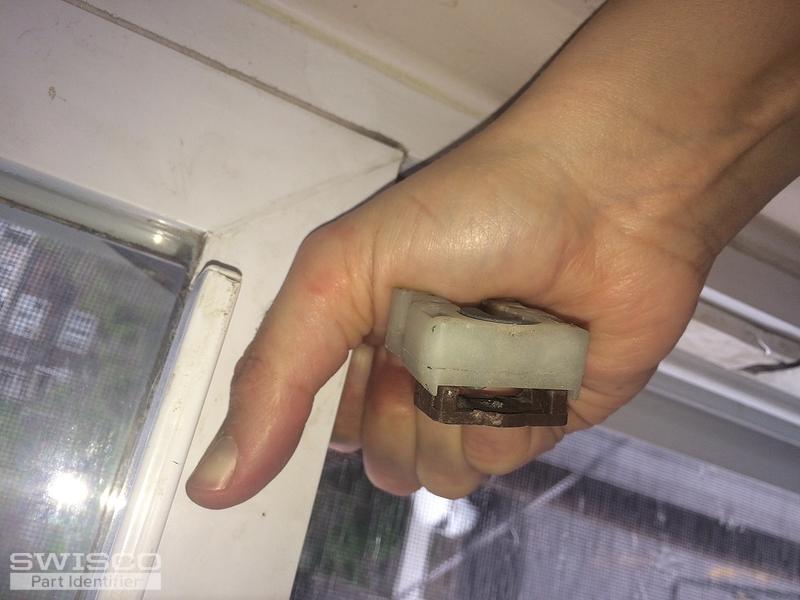

15-177?

If yes, do you have instructions on how to replace? The coil is still working and is a struggle to deal with.

4 user uploaded images

4 Replies

Tom from SWISCO

May 19, 2020 10:19 am

That's not our 15-177. I think a better match would be the 15-175.

As for replacement, we have a couple of videos that you may find helpful. I will link them below.

Quick Learner from Staten Island

May 20, 2020 11:16 am

Great! Thanks!

What is the best way to dig a shoe "up" when it's slipped to the bottom of its track and won't budge? The fastener is broken so I can turn it to unfasten. Bottom of shoe is ALL the way down so I can't wedge a slot driver under the base to start upward movement. Ideas?

Photos are too fuzzy. I have a video if there is a way to submit that.

Paul from SWISCO

May 20, 2020 12:19 pm

I would first try spraying WD-40 on the entire pivot to see if that loosens it. If not, go to the top and carefully unscrew the coil spring. Be very careful, though; use locking pliers on the coil spring to hold it firmly in place since it is under tension. If you aren't careful it will shoot out of your grip and you could damage the window or even hurt yourself. Make sure to wear gloves and goggles.

Once you have a grip on the coil spring, try pulling up on the pivot shoe. See if that gets it out of position.
