Jeld Wen lock for patio doors

Handy Person from Clearwater,florida

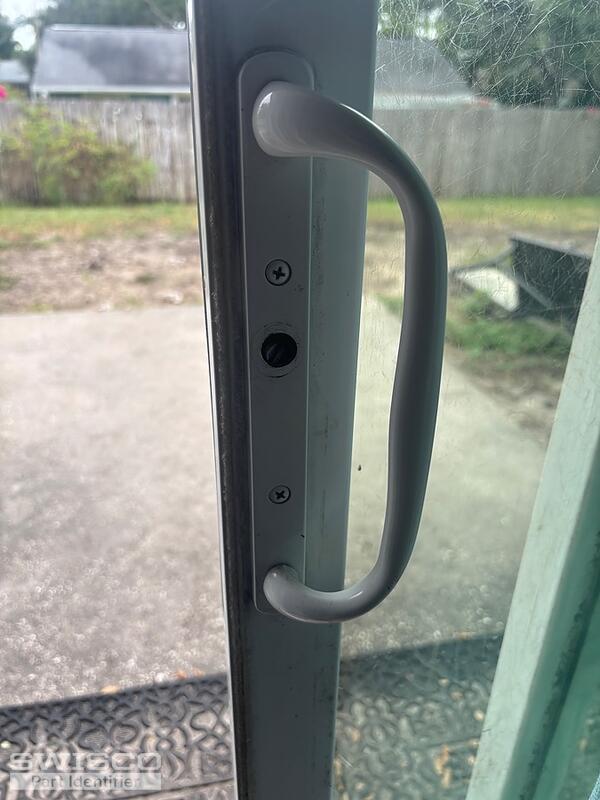

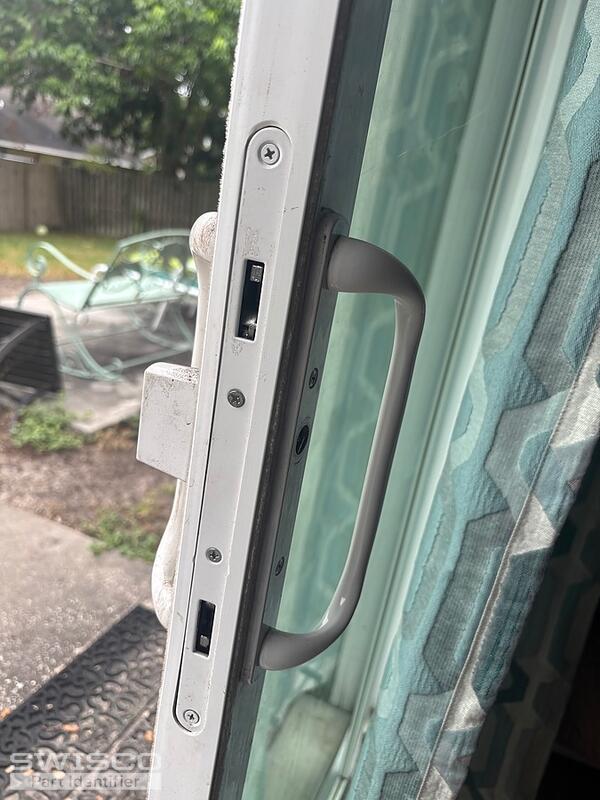

The lock lever broke. This unit has a double lock - approx 11 3/4 length, 3/4 inch width. Do you sell a repair kit for the lock lever
5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hello there. For a new thumb lever, see the 82-107. Make sure the mortise lock did not fail and was the cause of the lever breaking. To find out, try manually 'throwing' the lock with a slotted screwdriver. If it doesn't budge, then you know it needs to be replaced. See the 82-265 and 82-249 keeper.

Reply to Thread
Current Photos:
