Jeld Wen patio door lock

Question

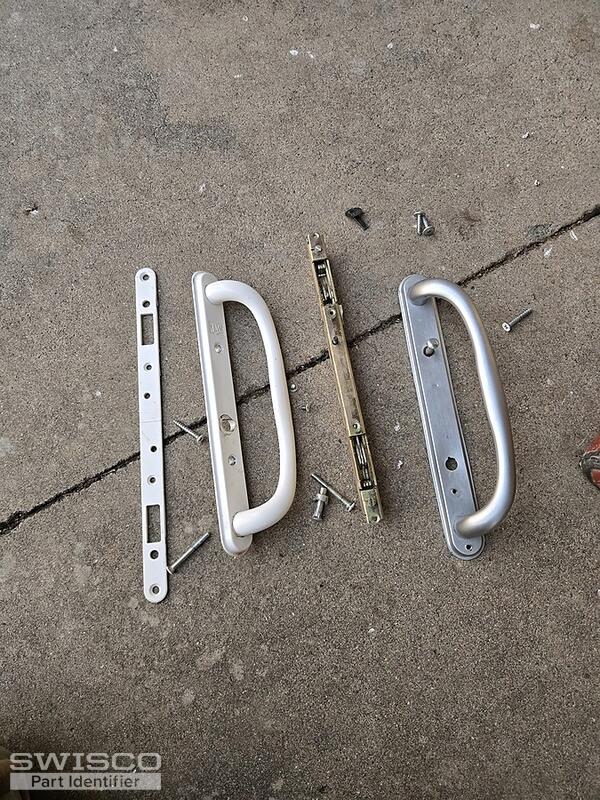

This is from a Jeld Wen vinyl patio door. I did not find any markings on the handle. The interior screw placement is 3 - 15/16". The screw placement on the mortise plate on the side of the door is 11". The handle itself Is 10 tall. I have more pictures if that would help. I would like to get a handle that has a keyed exterior lock if possible. At the very least I need a new interior and exterior handle.

Jasmine · Accepted Answer

Thanks for posting! This patio door set can be replaced with the 82-089 Legacy Handle Set. The keyed version is the 82-086. We also have these available in other finishes, tagged below.

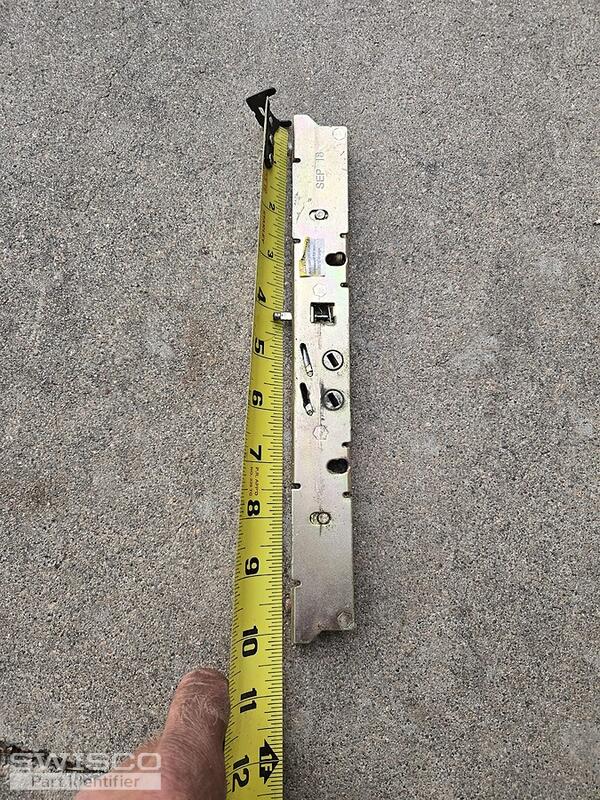

The mortise lock is sold separately from the set. Yours appears to be a match for the 82-265 Multi-Point Mortise Lock. To determine if this might work for your repairs, carefully look over the specifications.

You may also need to replace the keeper with the 82-249. There is a chance your may not be compatible with our lock.

The dimensions for each of these parts can be viewed directly on the website.
