Jeld Wen w2500 Patio Door Lock

A quick learner from Medford says:
I need two lock levers for my jeld wen w2500 clad sliding patio doors.in black or brass
Profile picture of Casey
Casey from SWISCO responded:

Hello,

We'd be happy to look into this for you but we would need to see detailed photos of the lock assembly that you need to compare to our inventory. Written-out dimensions would also help us narrow down your options. Thank you!

A quick learner from Medford says:
Black or brass

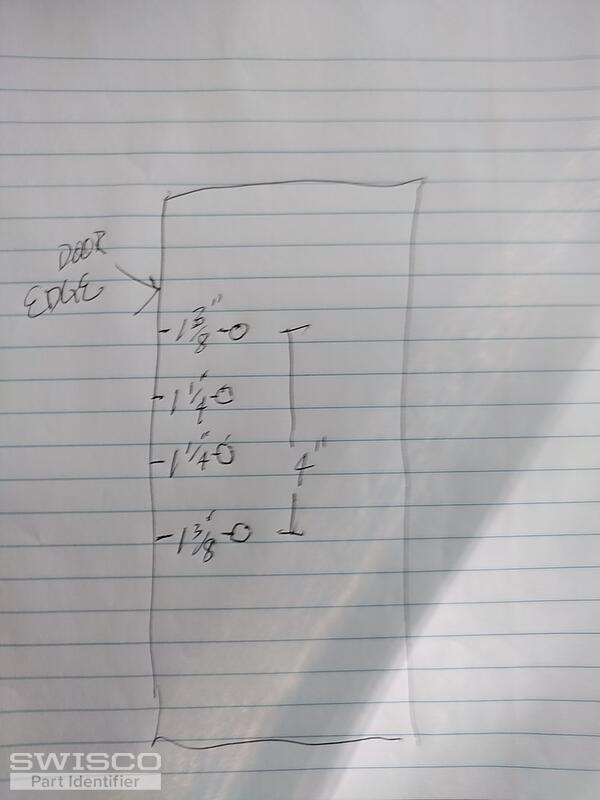

Thumbnail of the uploaded file named 16970424543605075607954575394223.jpg

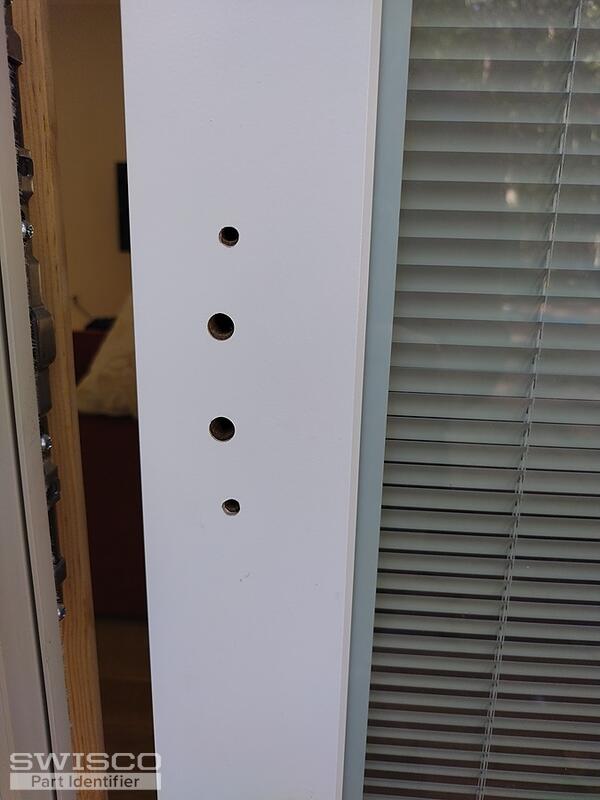

Thumbnail of the uploaded file named 1697042516416258150586483782948.jpg

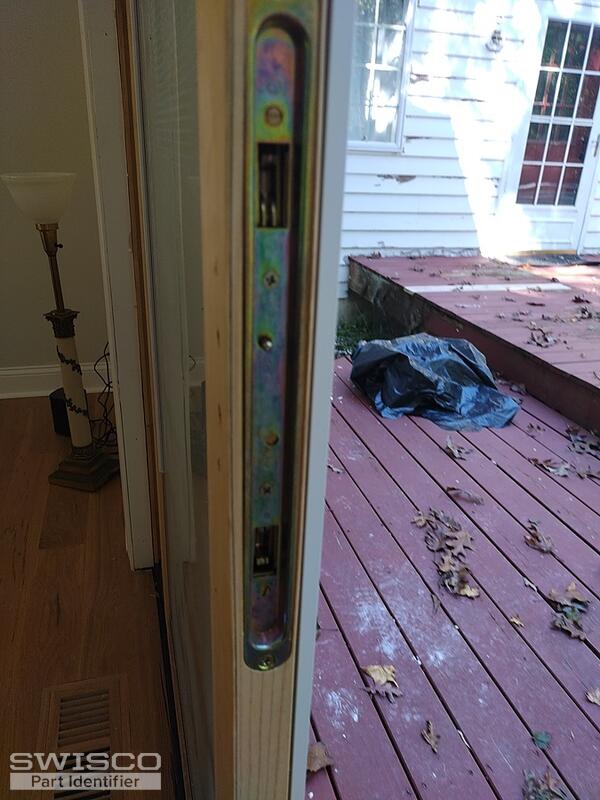

Thumbnail of the uploaded file named 16970425392183553383999308773959.jpg
Thumbnail of the uploaded file named 16970425601585904541846502611357.jpg
Profile picture of Casey
Casey from SWISCO responded:

Thanks for getting back to us. Your hardware resembles the 82-260 mortise lock and 82-249 keeper.

Alternate image for 82-260
Alternate image for 82-260

Alternate view of 82-260
Alternate view of 82-260

Alternate image for 82-249
Alternate image for 82-249

These parts are commonly used with the 82-030 handle set with 3-15/16" hole spacing. We also offer the 82-030B keyed version with an offset latch. Review the specifications below to confirm if these parts could work for your repair.

Hole center dimensions for 82-030
Hole center dimensions for 82-030

Dimensions for 82-030
Dimensions for 82-030
