Jeld-Wen window crank

Start a new Discussion

Home Owner from Metter, Georgia

May 22, 2025 2:51 pm

Greetings

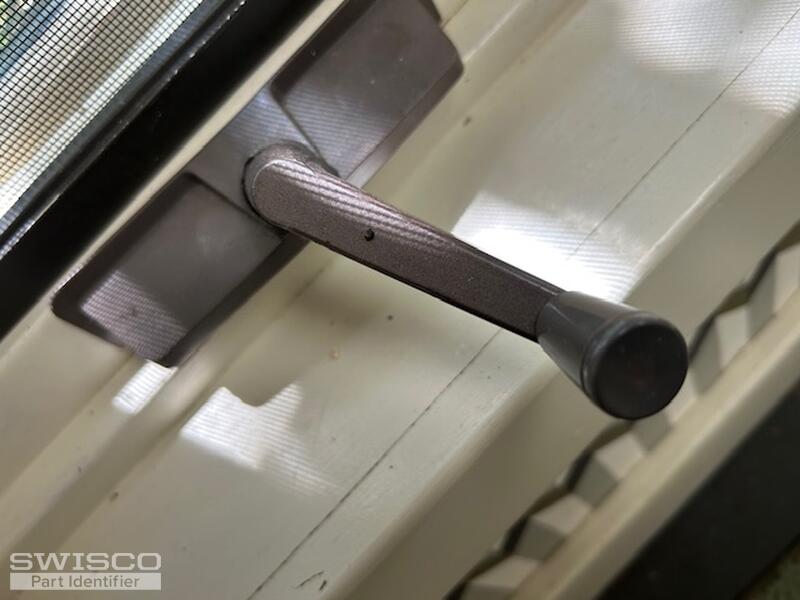

I have some windows that have been in the house for about 20 years. They are fine but the cranks have been striped. People tried to open them WITHOUT releasing the lock!!!!

I m sending pictures in the hope that. you can recognize my need.

I look forward to hearing from y ou.

Thank you

Lydia

4 user uploaded images

4 Replies

Emily from SWISCO

May 27, 2025 11:15 am

Hi there Lydia.

Thanks for reaching out to us. We should be able to help with this. We'll just need additional information to ID your operator. Can you open the window and show us the arms that move the window sash?

Home Owner from Metter, Georgia

May 28, 2025 9:49 am

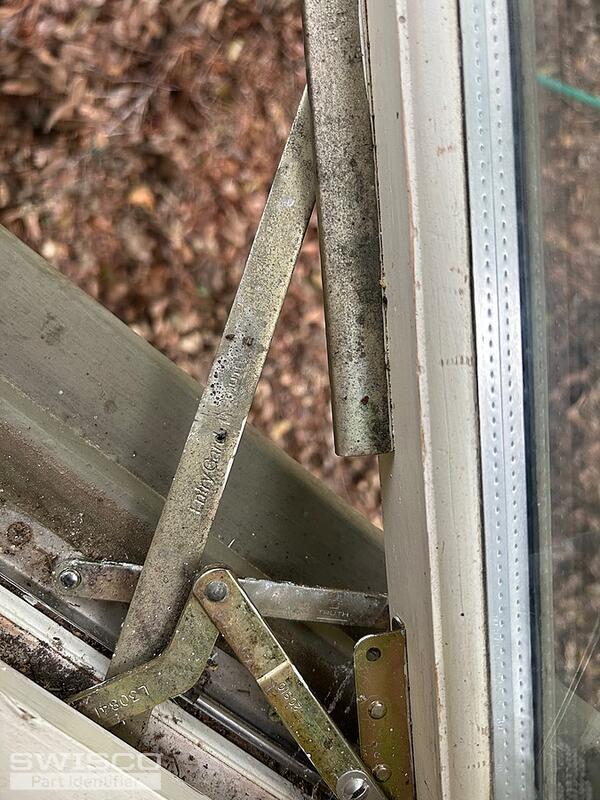

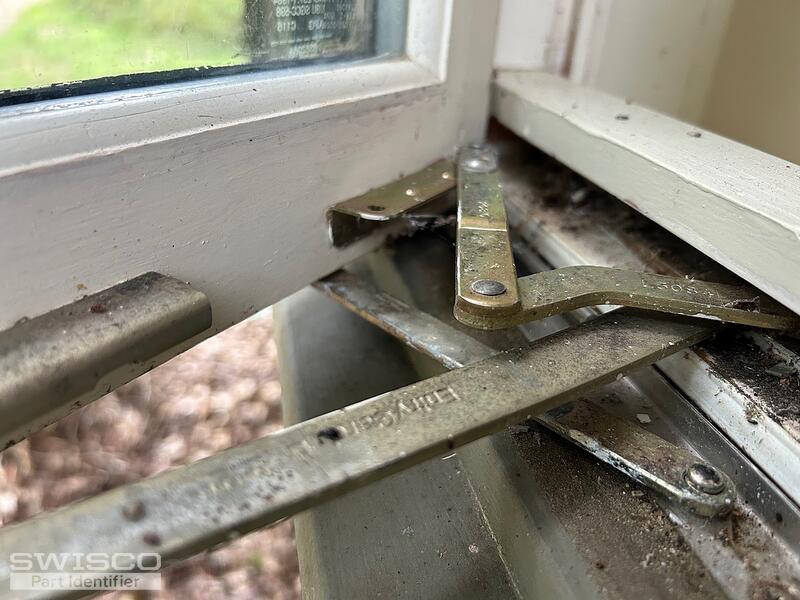

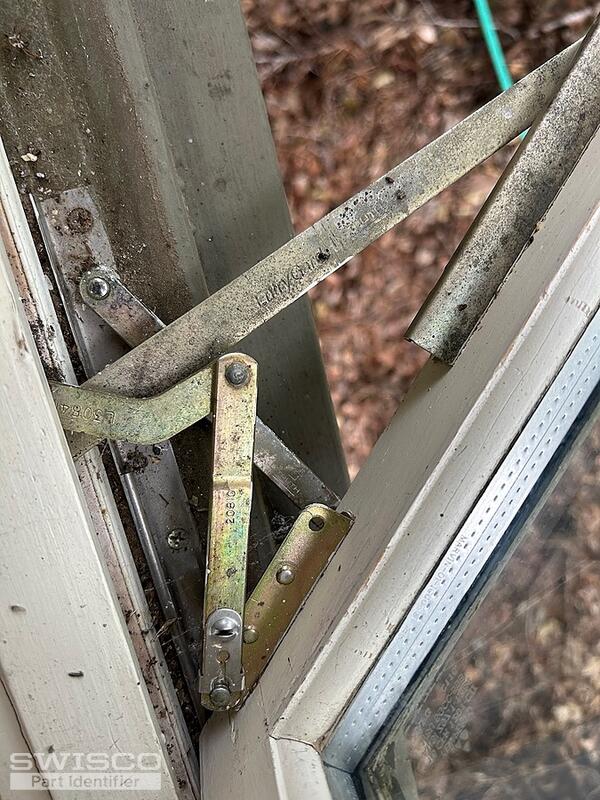

Per your request. I hope these help you identify my hardwear . Thanks lydia

3 user uploaded images

Emily from SWISCO

May 28, 2025 12:40 pm

Thank you, Lydia! I recommend having a look at the 39-031 with a 4-7/16" long link arm and the 39-155 with a 3-13/16" long link arm. Review the specifications and see if one of these parts matches up with your old assembly.

Dimensions for 39-031

Dimensions for 39-031

Dimensions for 39-155

Dimensions for 39-155
