Jeld-wen Window Tilt Bars & Tilt Latches

Professional from Yulee, FL

Aug 19, 2026 10:18 am

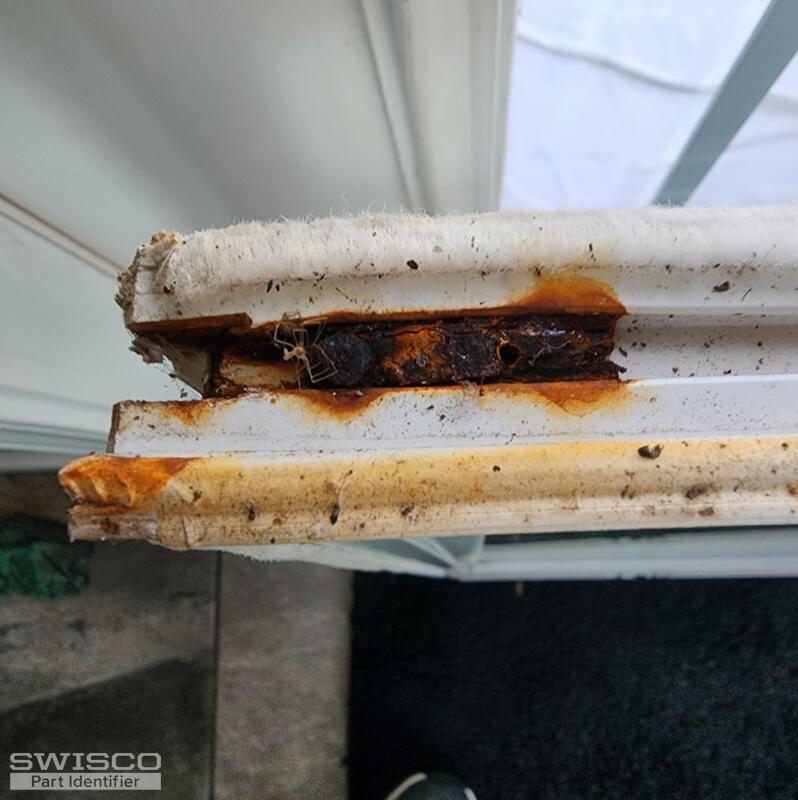

Tech notes attached w/ photos for reference on what exactly we need plus sizes and location of screw. Please let me know if you need any additional information.

4 user uploaded images

4 Replies

Bob from SWISCO

Aug 24, 2026 1:05 am

Thanks for posting. See the 26-243A and 26-244A tilt latch pair and the 26-040 Pivot bar. See if these parts match what you seek.

Dimensions for 26-243A

Dimensions for 26-040

Professional from Yulee, FL

Aug 25, 2026 8:56 am

Hi Bob, the tilt bar you've shown doesn't match up to my tech notes. He has that the bar is 2-1/2" long with the screw hole being 1-3/8 in from the end of the bar. Do you have something closer to those measurements?

Bob from SWISCO

Yesterday 1:48 pm

Sure, our 26-083 sounds like a much better option for you. This meets your size criteria exactly. Look it over and reach out if you had a follow up question!

Detail of 26-083
