Jeldwin patio door latch

Question

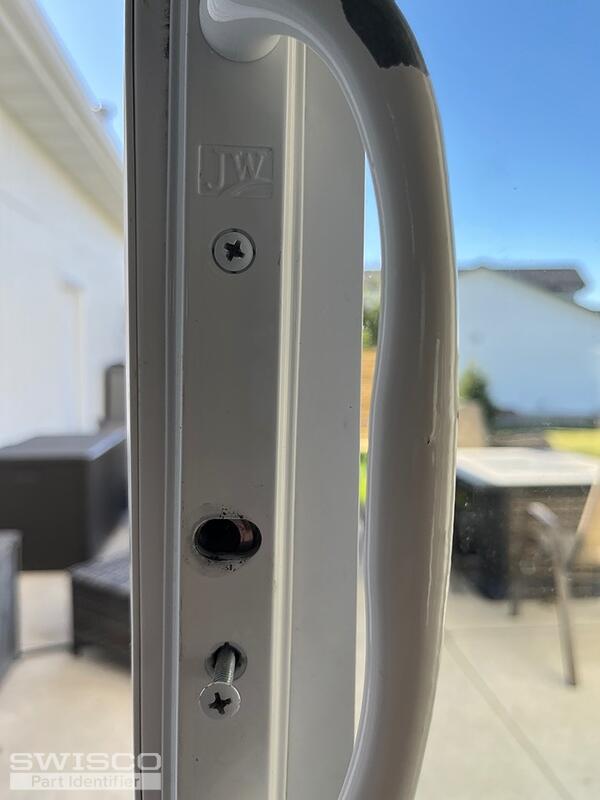

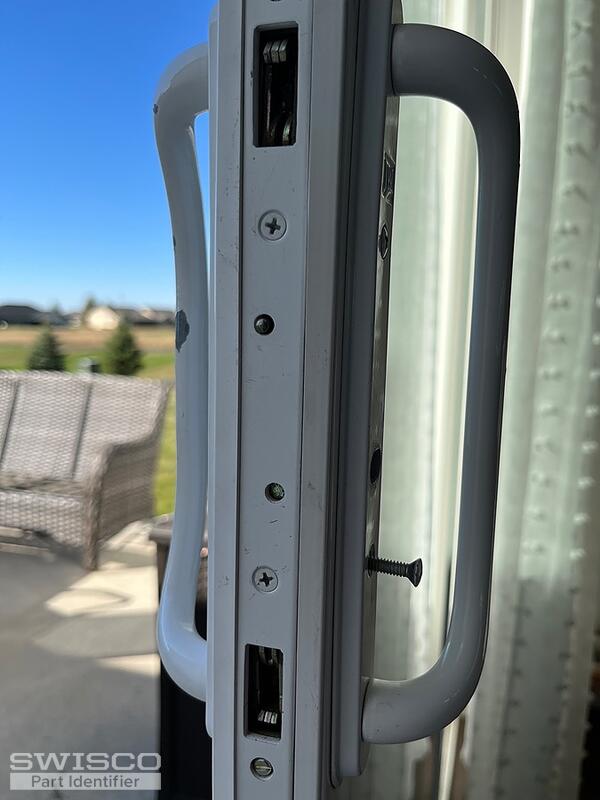

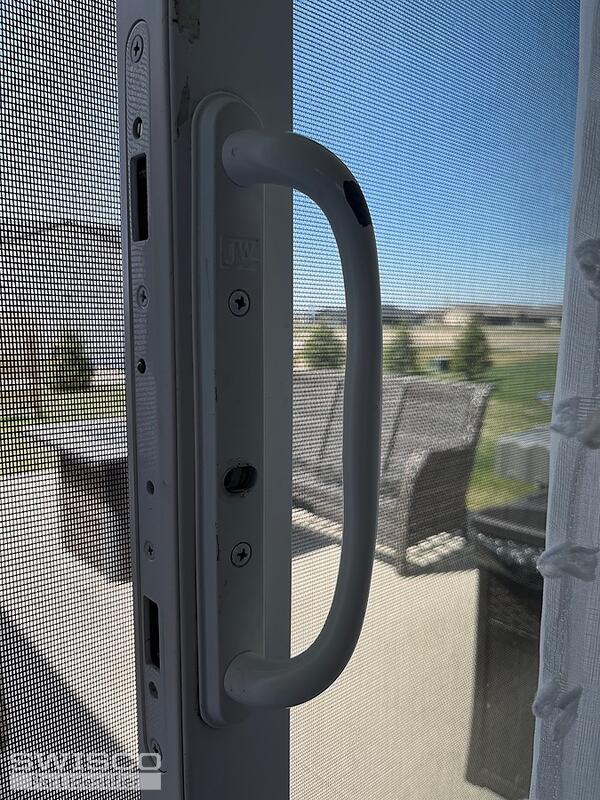

The thumb lock broke on this patio door latch. I believe there are some parts that broke inside the strike bolt mechanism on the edge of the door. to describe the parts the side handle is 22 inches long and 1 1/4 inches wide at the base. The door piece on the edge of the door is 11 11/16 long and three-quarter inch wide. Enclosed are four photos. I believe I will need the thumb locking latch and the part that slips into the edge of the door.

Jasmine · Accepted Answer

Thanks for writing in! I believe the latch you'll need is the 82-107 Sliding Door Lever Latch Kit. This is typically used with our 82-089 Legacy Handle Set, which is not an exact match for this handle set but I'm certain it would be the right fit for the door. The keyed version of this set is the 82-086.

Dimensions for 82-107

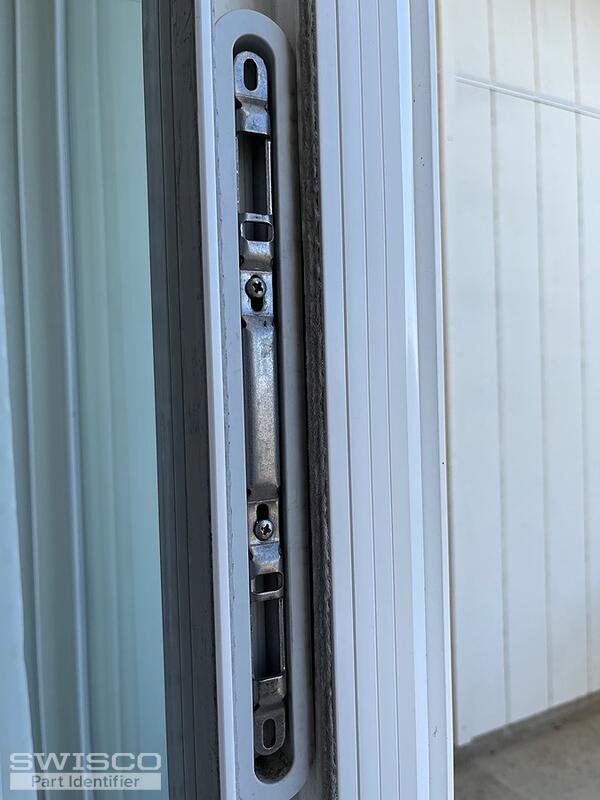

The mortise lock is sold separately from the set. It can be replaced with the 82-265 Multi-Point Mortise Lock. The compatible keeper is the 82-249 Sliding Glass Door Multi-Point Keeper.

Alternate image for 82-265

Alternate image for 82-249
