Jordan window channel balance?
Home Owner from thousand oaks ca
Aug 31, 2016 1:56 pm
Need to put a channel balance back into a window on my new house. I need to figure out the part numbers for everything I'll need, as all the parts that can be taken off, seem to have been removed by the previous owner. I have another window that's identical, save for the width, and the balance is marked "2420" which seems to mean it's 25" long, but I don't know which series replacement to buy for it, and I also nee the nylon guides and the retainer clips. Thanks in advance for the help!

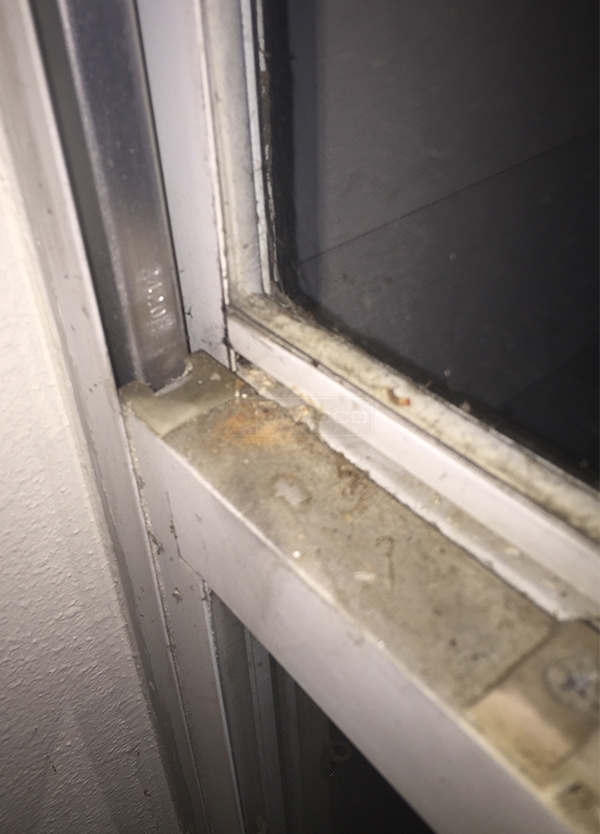

Sorry for the terrible pictures, took them at midnight last night and lighting was a little less than ideal.
Sorry for the terrible pictures, took them at midnight last night and lighting was a little less than ideal.
4 Replies
Tom from SWISCO
Sep 1, 2016 12:09 pm
Actually, there's a good chance you only need to replace one part, which is the top sash guide. It looks like that broke, probably due from age, allowing the balance to shoot up. As long as the balance wasn't damaged when this happened, I see no reason why you couldn't reuse it.
Watch the video below for more information on what happened, and what you can do. I cannot tell exactly what your top sash guide is based on this picture, but you can see our entire section here.
Watch the video below for more information on what happened, and what you can do. I cannot tell exactly what your top sash guide is based on this picture, but you can see our entire section here.
Quick Learner
Sep 1, 2016 2:22 pm
I think I mis-typed, that's the balance from another window in the house. The main offender here is missing both balances, the sashes and the snap-in pieces that prevent the window from going too far up (the ones you remove when disassembling the window)
I ll look through the sashes and see which one I need, any advice on how to determine what balances I need?
I ll look through the sashes and see which one I need, any advice on how to determine what balances I need?
Tom from SWISCO
Sep 1, 2016 3:19 pm
Ah, I see. In that case, you will need to match up the nylon attachments on your balance with those we carry on our site. That's the only way to determine what Series it is you have. I recommend that you look at our Channel Balance Home Page to start out. If you cannot find yours, please take a picture of the nylon attachment on each end for us to see.
