Junco Mark 50 windows balance replacements
Thanks in advance
Barbara
Hi Barbara. It looks like you have either our Series 351 or Series 390 Channel Balance. The only difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement, so compare both with your old hardware to see what matches best. See the diagram below for reference.

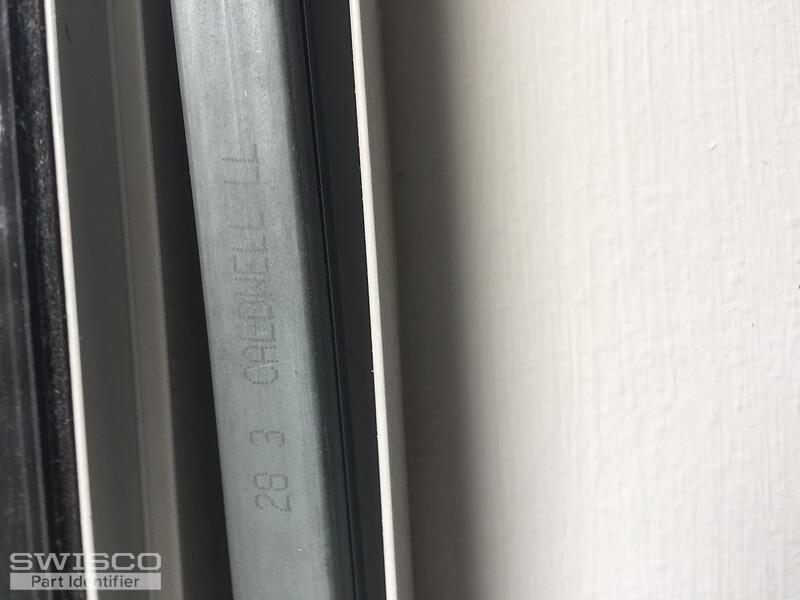

Next, you need to determine the length of the balance needed. Measure the metal channel to determine this. Do not include the end fittings in this measurement; measure only the metal channel. Finally, you have to choose a stamp option. This indicates the strength of the balance, or the weight range it is designed to support. Look for a stamp on your old balance that indicates the option to choose. If there is none, or you are uncertain, send us a picture of the stamp, and we can point you in the right direction.

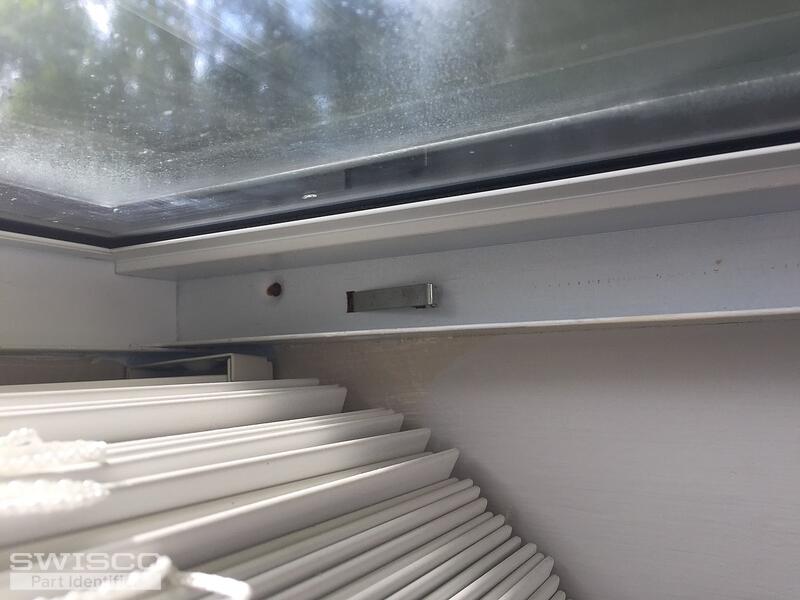

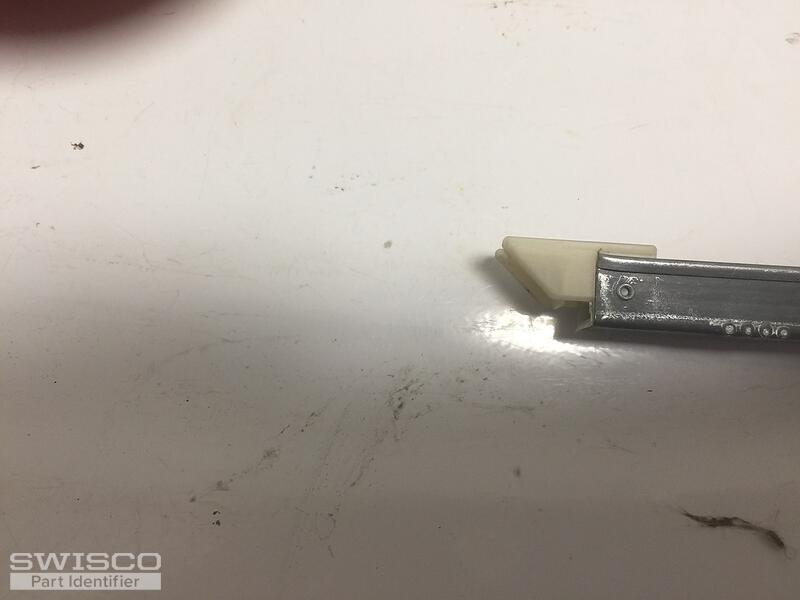

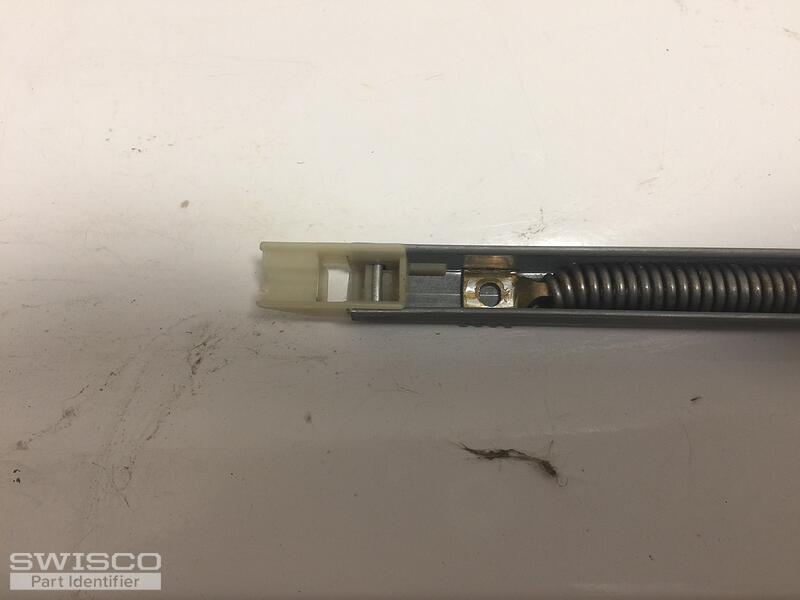

I also need a clip that is at the top of the window for the balance to clip in to. I am sending pics
Take a look and compare the specifications of the 16-002 take-out clip shown below to your part. Once you're ready, the S351-29 (2830) balances and clips can be purchased directly on our website or you are welcome to give our customer service team a call at (888) 991-1929. Thanks for posting.
