Keyed door lock replacement for patio sliding door

Start a new Discussion

Quick Learner from Mississippi

Jun 24, 2023 7:46 pm

Need to replace my sliding patio door

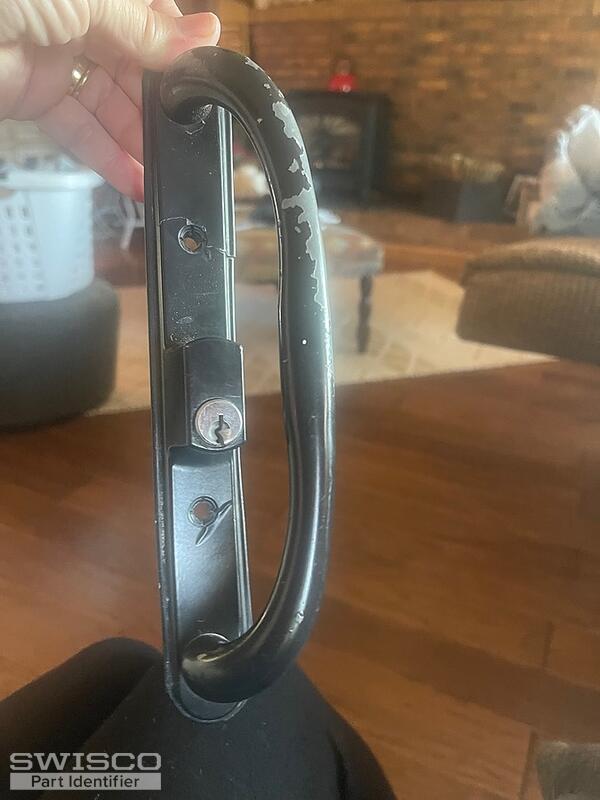

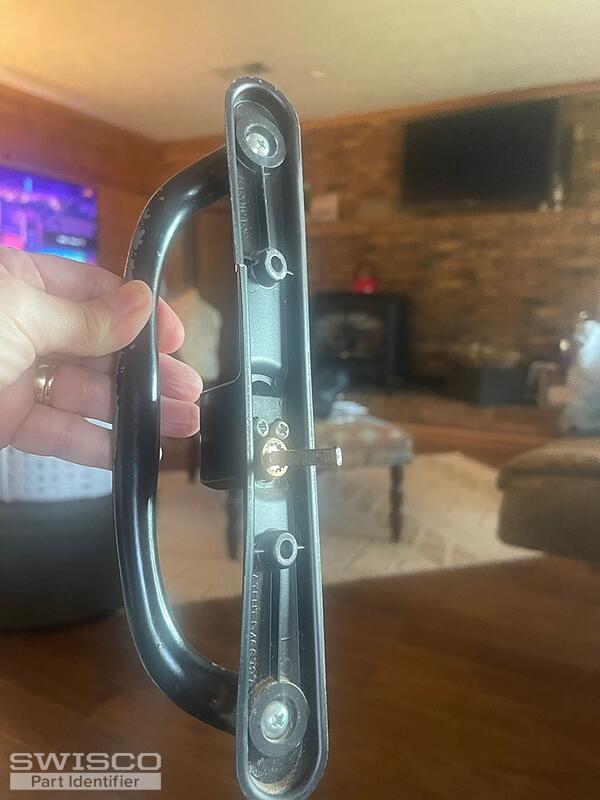

Handle is patent D-466787

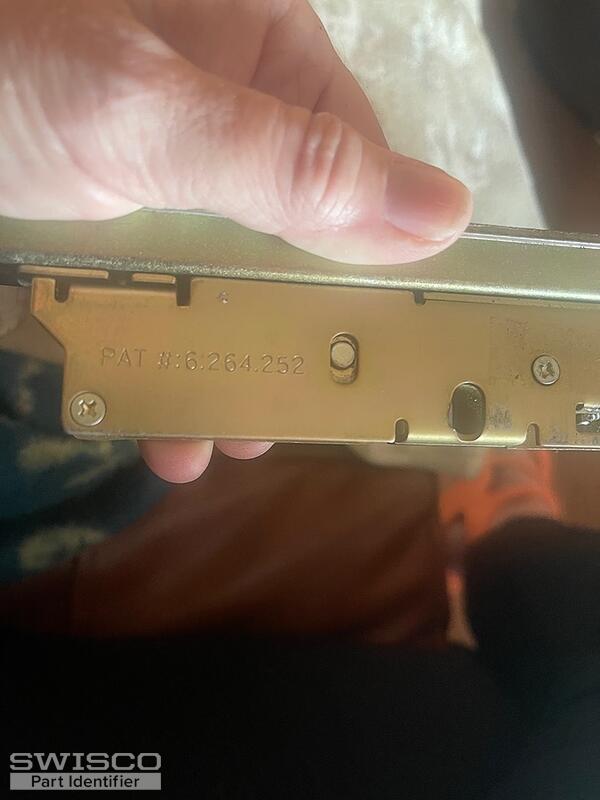

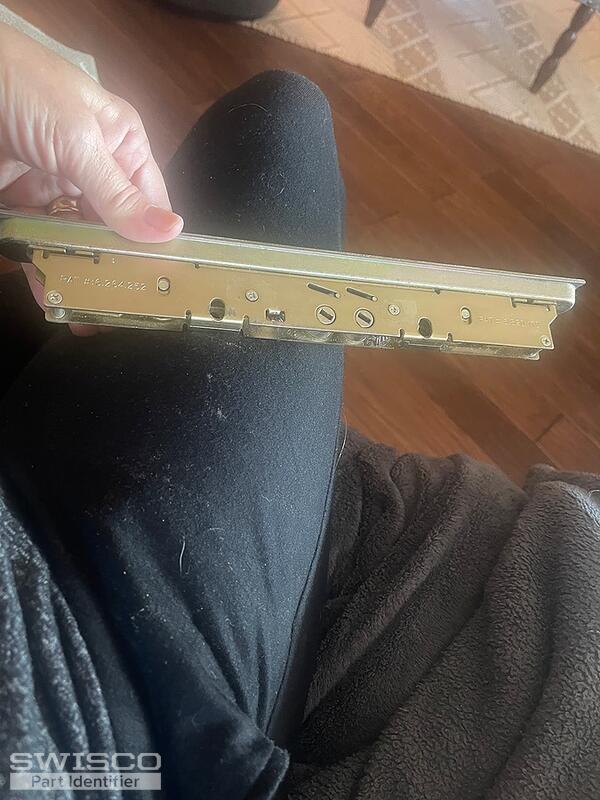

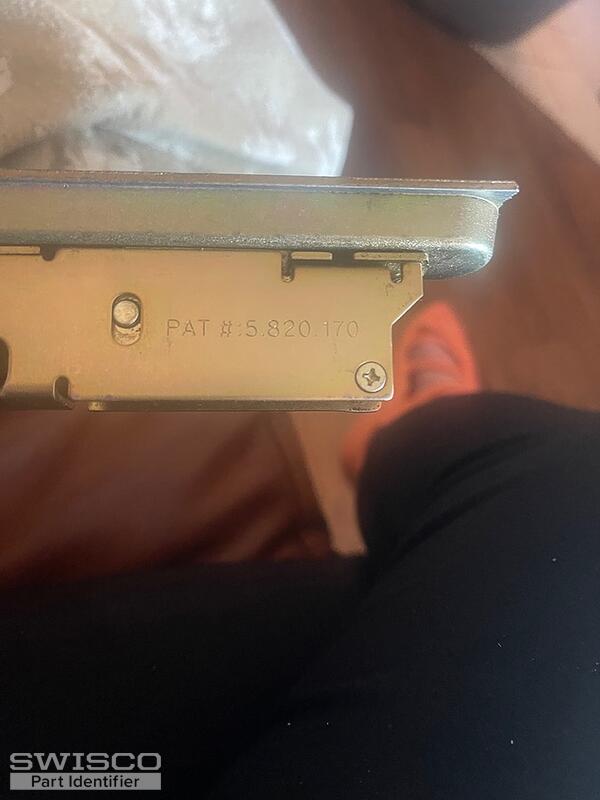

The insert part is patent 6 264252 and 5 820170

5 user uploaded images

4 Replies

Bob from SWISCO

Jun 24, 2023 9:24 pm

Thanks for writing in. The mortise lock resembles our 82-260. Compare with the diagrams below to ensure this matches what you need. For the handle set, see our 82-086 Keyed set. Let me know if you have further questions.

Alternate image for 82-260

Alternate view of 82-260

Quick Learner from Mississippi

Jun 25, 2023 3:33 pm

Ye, that is the match. Measurements are the same. I am going to order.
Thank you.

Bob from SWISCO

Jun 27, 2023 10:33 am

Awesome, thank you! We appreciate the business, it means a lot.

Feel free to reach out if I can be of any further assistance.
