Kinco Window Balance

A contractor from 29445 says:
Do you have this balance in stock?

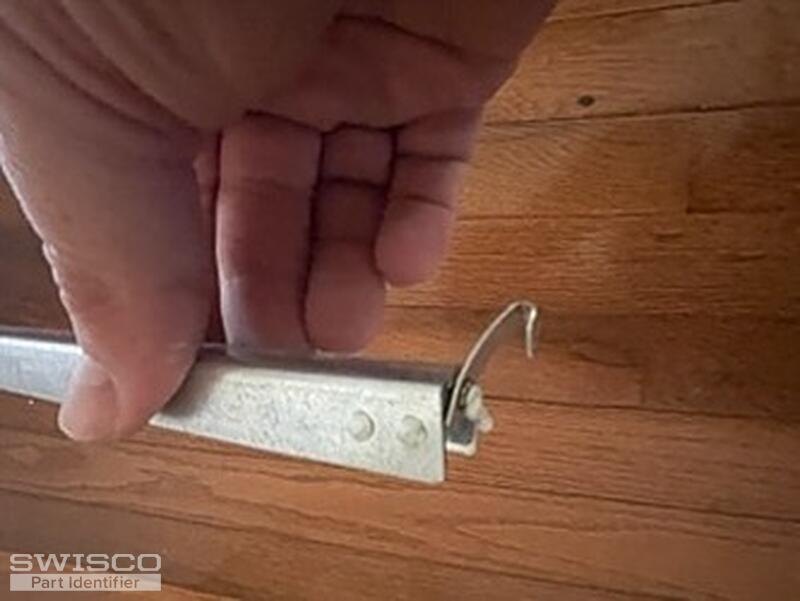

Kinco series tw-1 sh

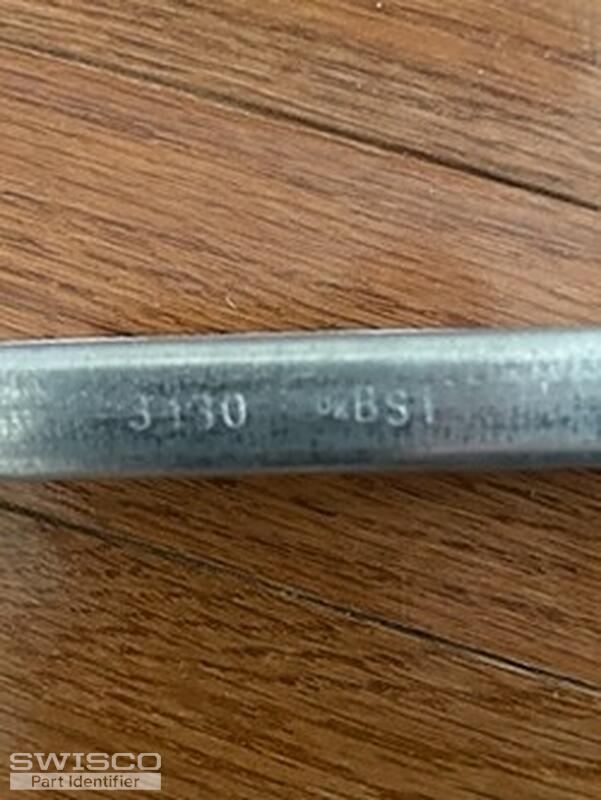

Balance had the number 3130.

36" Lengths and 29" Lengths
Thumbnail of the uploaded file named balance 1.jpg
Thumbnail of the uploaded file named balance 2.jpg
Thumbnail of the uploaded file named balanace 4.jpg
Thumbnail of the uploaded file named balance 3.jpg
Thumbnail of the uploaded file named balance 6.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

Take a look and compare the specifications of the 15-105 pivot shoe to yours. This is designed to work with an older style balance that is also technically not made anymore.

The good news about that is that we can configure one of our newer models to work the same way but it will need to be a custom order. We would use our S770-32 as a base and swap out the bottom clip for the 62-105 hook.

Before we can move forward, we'll need you to confirm your exact sash weight to determine the necessary spring strength needed to support the window. We'll also need to confirm the number of balances that you need, with the minimum order being two, and we can go from there. Thank you!
