Kinro replacement channel balance

Question

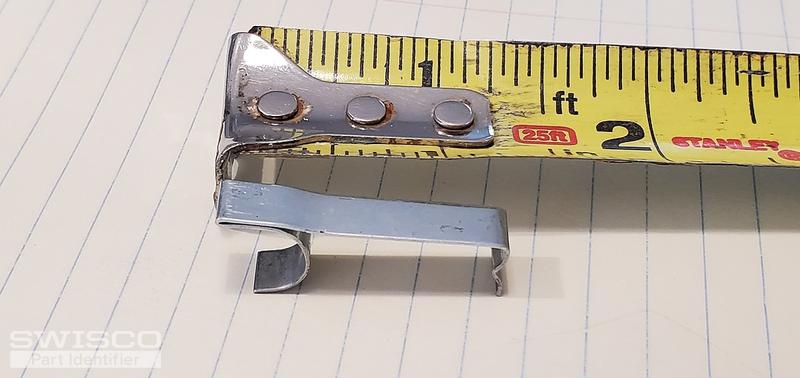

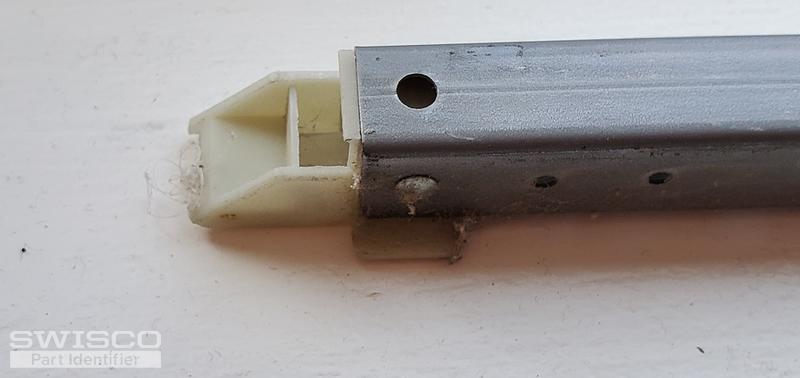

I need to replace eight balances labeled 26-3 and two balances labeled 26-4.  Every channel measures 27" long (metal length).  I also need 4 take-out clips.  Photos will accompany this post.  I'll be glad to supply any additional information you need.

Bob · Accepted Answer

Hello there. Looks like you need either S380-27 or S385-27 Channel Balances. The only difference between these two balances is the depth of the bottom nylon shoe, or 'heel-to-toe' measurement, so compare both with your old hardware to see what matches best. The diagram below shows the difference. For the balances stamped 26-3, use a stamp option of 2630. For the balances stamped 26-4, use a 2640 stamp option. Let me know if you have further questions. For new Take-Out clips, see our 16-002.

Comparison of the S378, S380 and S385 balance shoes.
