Window balance plastic piece on rod end has broken through and will not hold spring tight. I cannot find a matching window balance anywhere. Not sure if a spiral balance will work or not. Any idea what kind of balance this is?
Thank you
Kitchen window, 25 lb bottom pane 45.5" x 31.5"
Quick Learner from Nebraska
Apr 13, 2023 2:49 pm
1 user uploaded image
7 Replies
Quick Learner from Nebraska
Apr 14, 2023 11:22 am
I've since learned this is an old style block and tackle window balance. How do I measure to replace it with a spiral tilt window balance?
Casey from SWISCO
Apr 14, 2023 2:47 pm
Hello,
You are correct that your rod-style balance is no longer made but we do not recommend using a spiral balance as a replacement. You should be able to use one of our channel balances for your repair but we would need to see the bottom fitting attached to an undamaged version of your rod balance to confirm the correct replacement. From there, we should be able to guide you more effectively. Thank you!
Quick Learner from Nebraska
Apr 14, 2023 6:34 pm

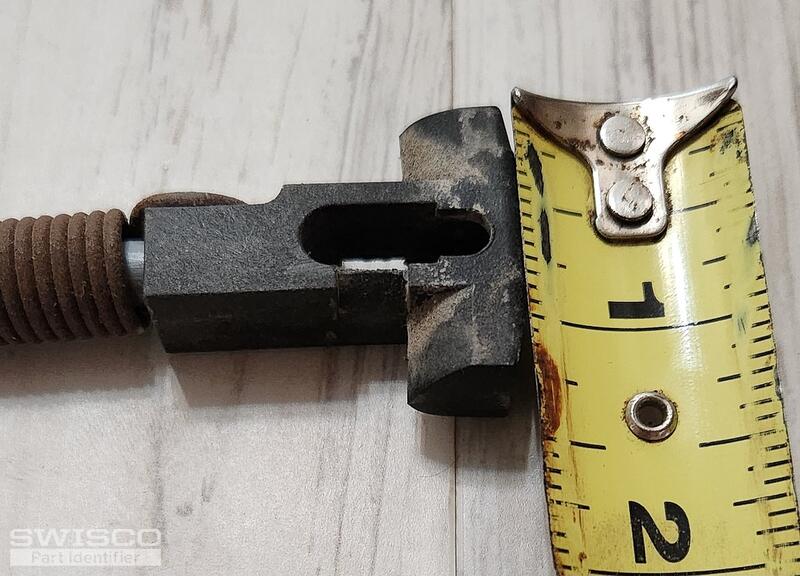

Here are some pictures with the foot/slide attached
3 user uploaded images
Casey from SWISCO
Apr 17, 2023 8:40 am
Thanks for getting back to us! Take a look at the video below which shows the process of converting your crossbow-style rod balances to our Series 795 channel balances. Before you place an order, I would recommend confirming that the spring of your balance measures 1/2" in diameter. If so, you should be good to go.
Quick Learner from Nebraska
Apr 18, 2023 11:08 am

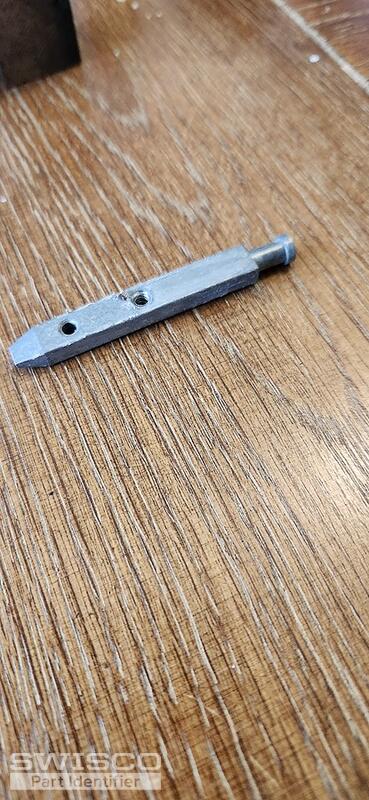

Thank you. Yes the spring is 1/2 inch. The crossbow balance is 30.5" long, the T is 1.25" wide. The window is 25lb. The pivot bar looks to match the 26-021. See attached photo.
So, I think I can order
Balance S795-30 (30D) x 2,
pivot bar 26-021 x 2,
T-lock balance shoe 15-195 x 2
Does that sound right?
Thank you
So, I think I can order
Balance S795-30 (30D) x 2,
pivot bar 26-021 x 2,
T-lock balance shoe 15-195 x 2
Does that sound right?
Thank you
1 user uploaded image
