Quick Learner from Wisconsin

Jul 23, 2024 6:48 am

Looking to find what hardware I need as our handle does not turn the "auger" to open of close the window. No clue what I need to order.

3 user uploaded images

9 Replies

Emily from SWISCO

Jul 24, 2024 1:01 pm

Hi there!

It sounds like your operator may be stripped. We're happy to help determine a replacement but we'll need more information. Can you open the window and show us a clear photo of the arms that move the window sash?

Quick Learner from Wisconsin

Jul 24, 2024 1:16 pm

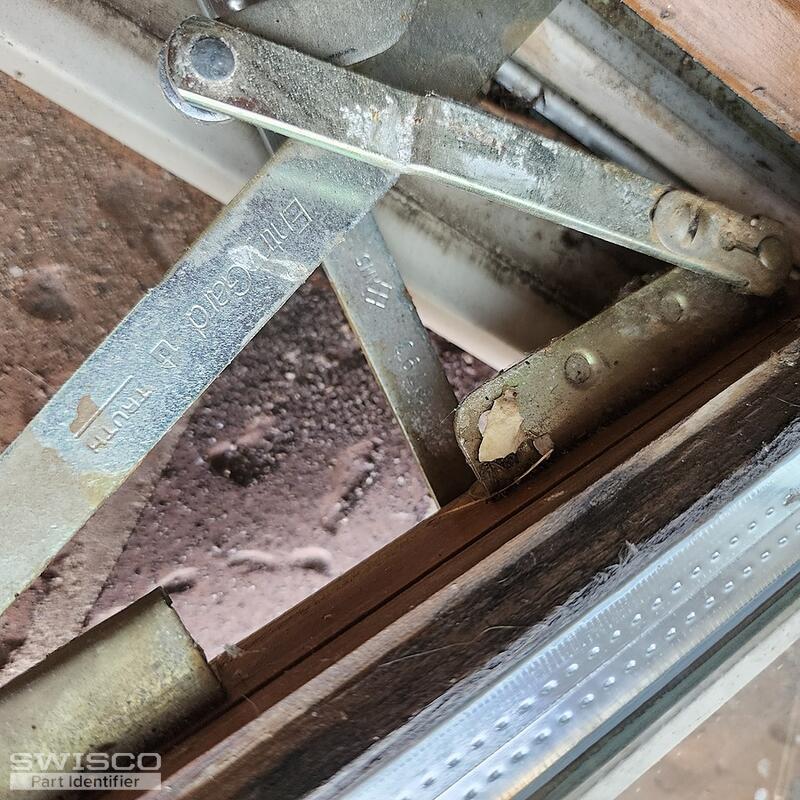

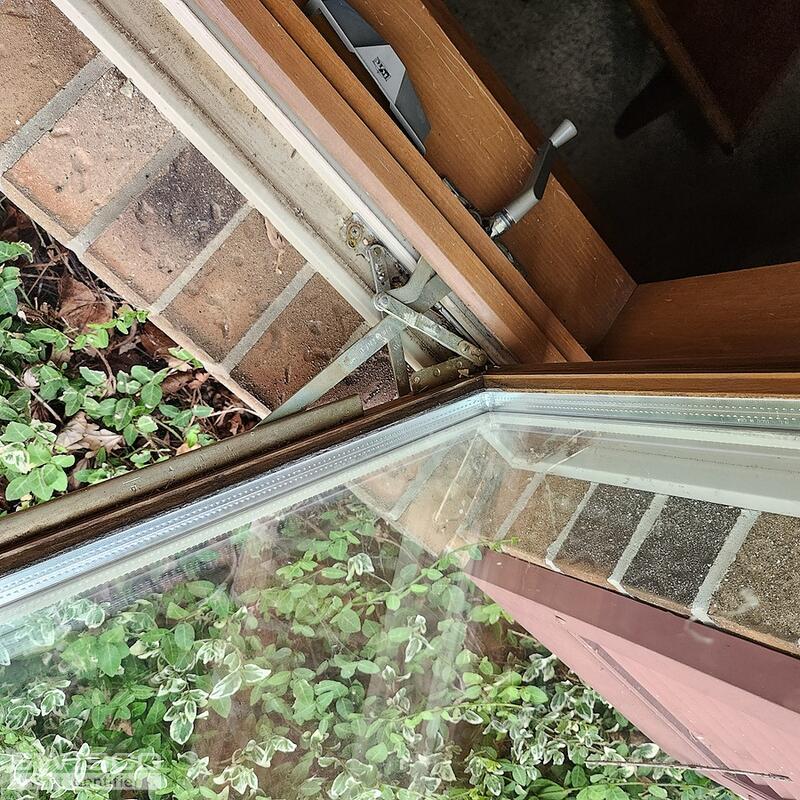

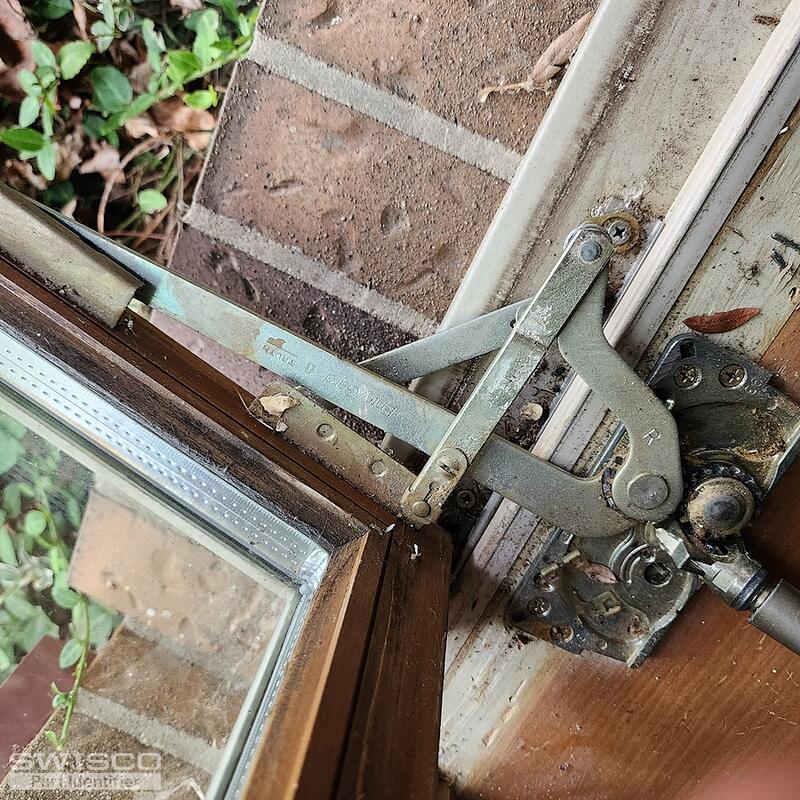

pics from outside looking in and with sash removed.

3 user uploaded images

Emily from SWISCO

Jul 25, 2024 8:34 am

Thank you kindly! This looks like it could be the 39-032 or 39-156. Review the specifications for each and see which one matches up best with your old assembly.

Dimensions for 39-032

Dimensions for 39-156

Quick Learner from Wisconsin

Jul 25, 2024 9:01 am

I just heard back from kolbe.. the part is 5054390 and 5057010 right and left

Emily from SWISCO

Jul 25, 2024 9:20 am

I'm afraid we couldn't cross-reference these part numbers. The two operators I mentioned appear to be our best options though. You'll just have to measure yours to see if one of them aligns with your old operator.

Quick Learner from Wisconsin

Jul 25, 2024 9:30 am

Ok when I get home from work I will measure

Quick Learner from Wisconsin

Jul 26, 2024 8:15 am

3 and 13/16

Emily from SWISCO

Jul 26, 2024 8:33 am

The 39-155 has a 3-13/16" long link arm. The 39-156 is the opposite-handed version. You can place an order directly on our website at your convenience.
