Lock Replacement

Handy Person from Colorado

Aug 2, 2019 6:19 pm

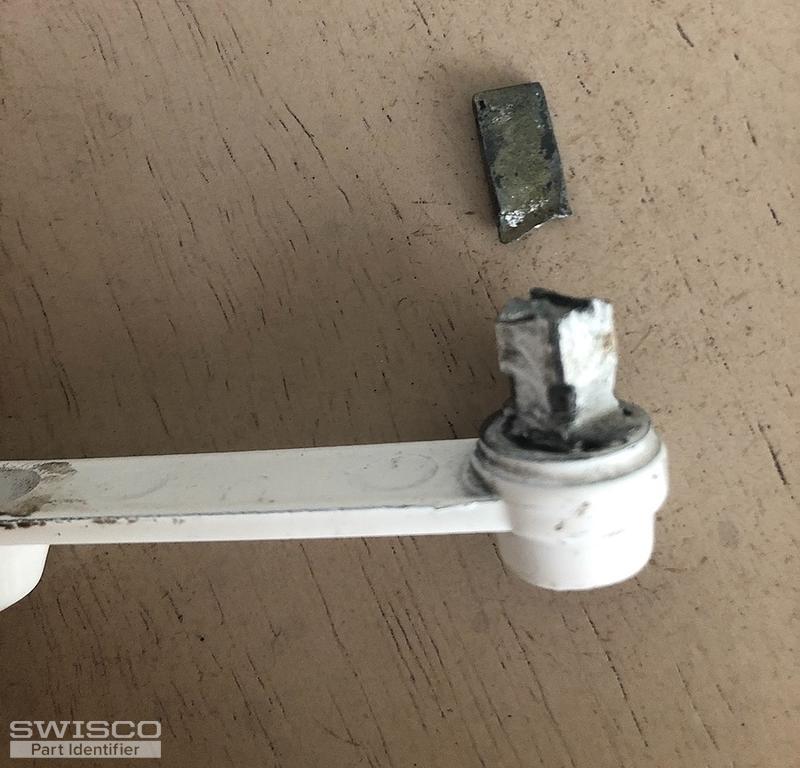

Hello, I have a sliding glass door lock that broke and needs to be replaced. I have been looking everywhere but can not locate it. I ordered the item # 82-240 "Roto Multi-Point Mortise Latch Lever" but the actual grey metal lock part was too long and the round white circle on the top of the lock was too short. I appreciate your help! -Audrey

4 user uploaded images

6 Replies

Bob from SWISCO

Aug 7, 2019 2:35 pm

Thanks for writing in. Hm, I'm not sure why you the 82-240 didn't work for you; it looks like a match to me. Can we see the handle set from which this was removed? That might give us a clue as to what you need. Many thanks.

Handy Person from Colorado

Sep 2, 2019 7:02 pm

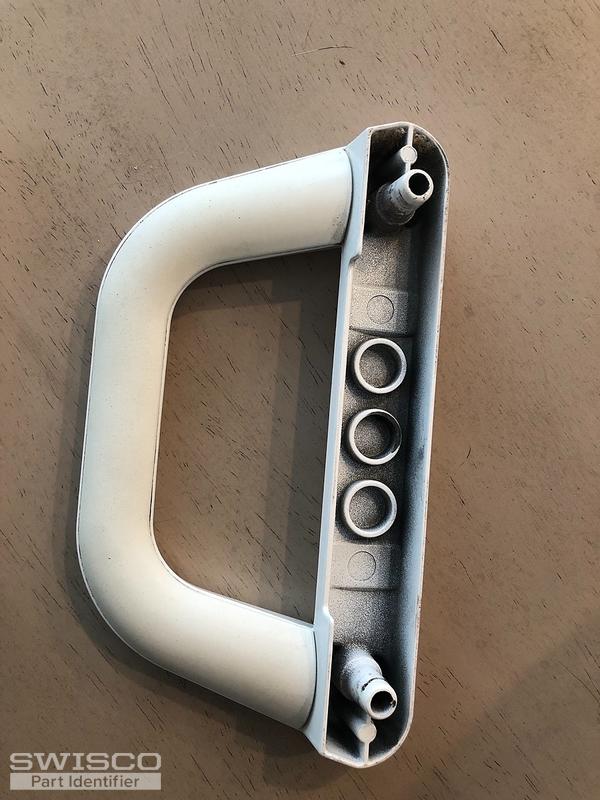

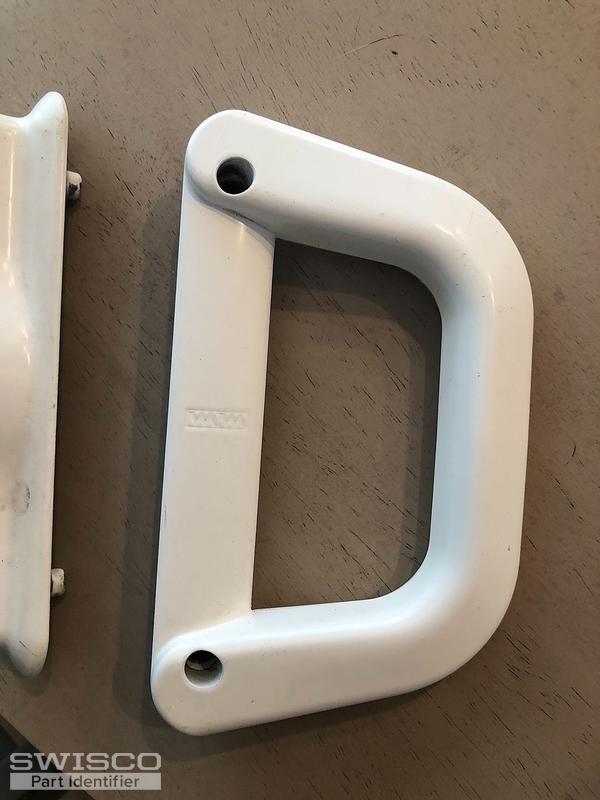

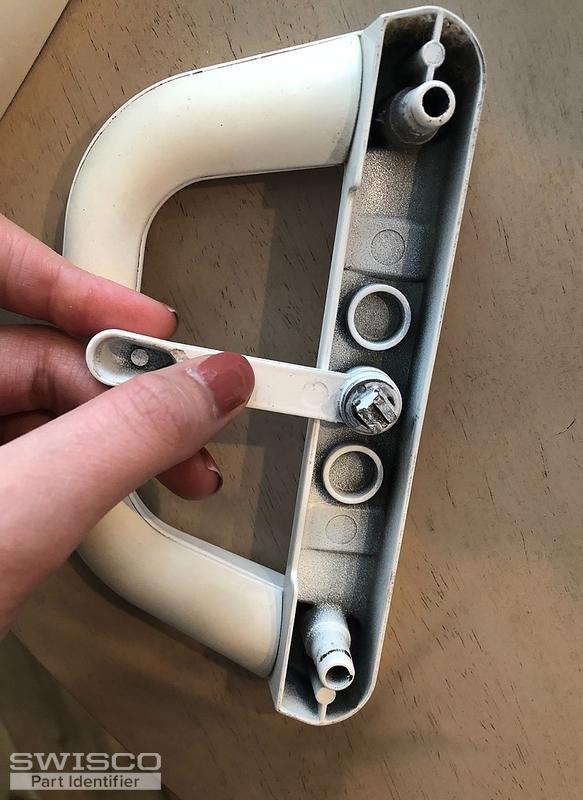

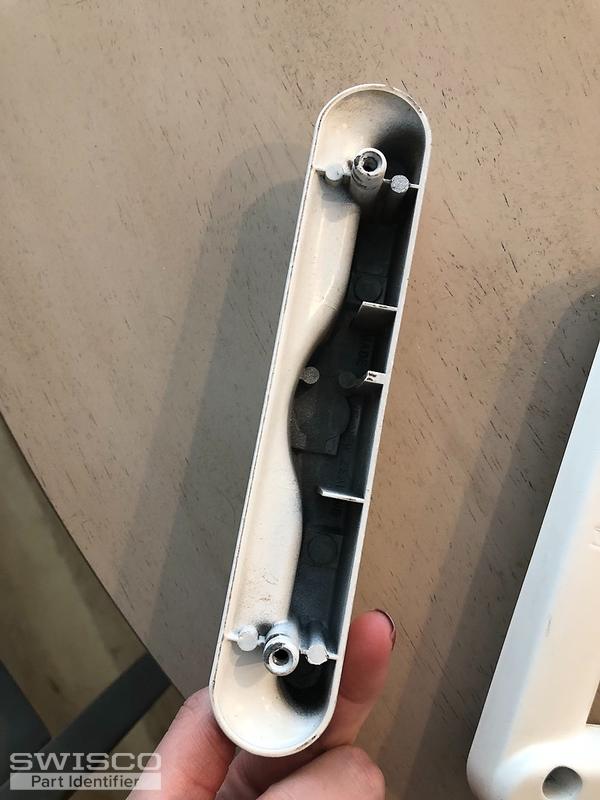

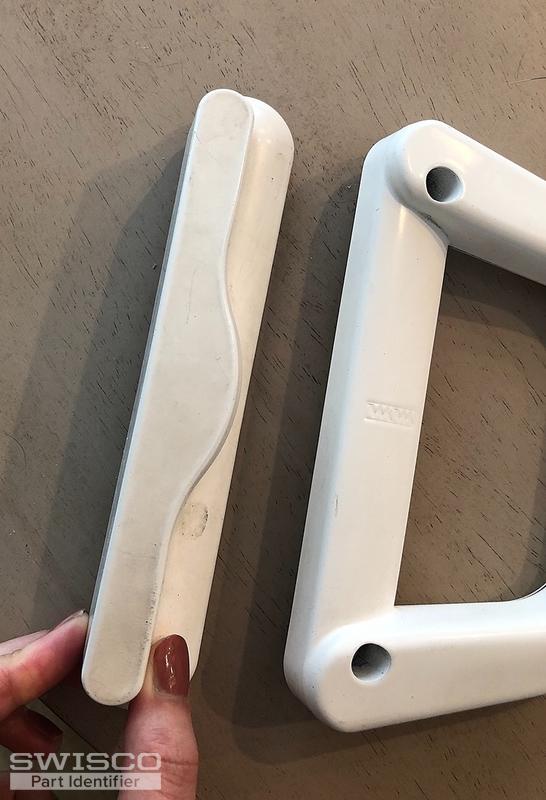

Hello, here are some pictures of the handle. I appreciate your help!

5 user uploaded images

Bob from SWISCO

Sep 3, 2019 7:24 am

Hm.... I think I might see the problem. The lever you bought was designed to work with mortise locks like our 82-238. These have a large square hole to accommodate the tail of the lever.

Now, I wasn't entirely sure at first if your tail worked the same way, since it's broken, but looking at your handle I think that you need something that accommodates a flat tail, instead. Consider something like our 82-106, instead. This is meant to work on mortise locks like our 82-218 or 82-239. Look this hardware over and see if perhaps they match what's in your door a little more closely.

Quick Learner from Talent, Oregon

Apr 6, 2021 1:33 pm

I have the same problem and the identical broken lever. Did the handy person find an answer?

Thanks,

Roland

Bob from SWISCO

Apr 6, 2021 1:58 pm

We haven't heard back from the handy person from Colorado yet. If you can show us your latch as well as the handle set and mortise lock it works with, I should be able to confirm if you have the same solution.
