Lock and Handle for Arcadia sliding door

A handy person from Corvallis, OR says:

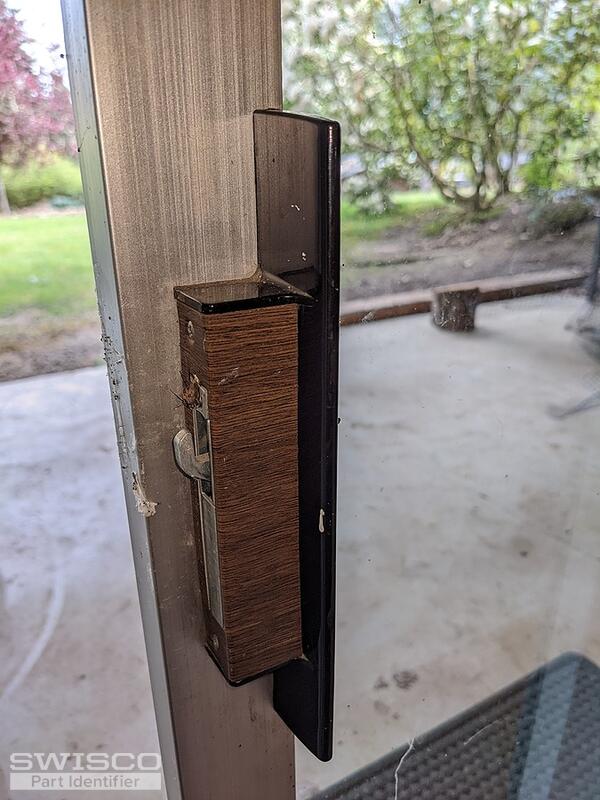

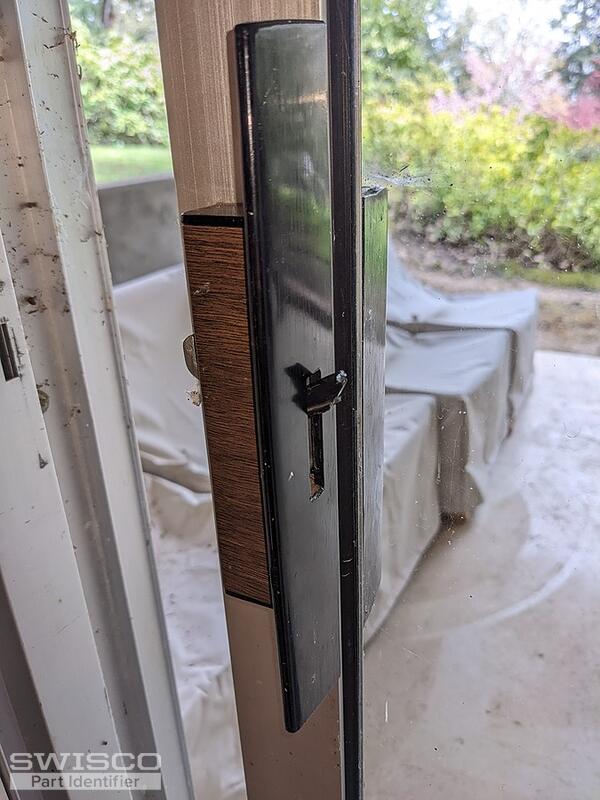

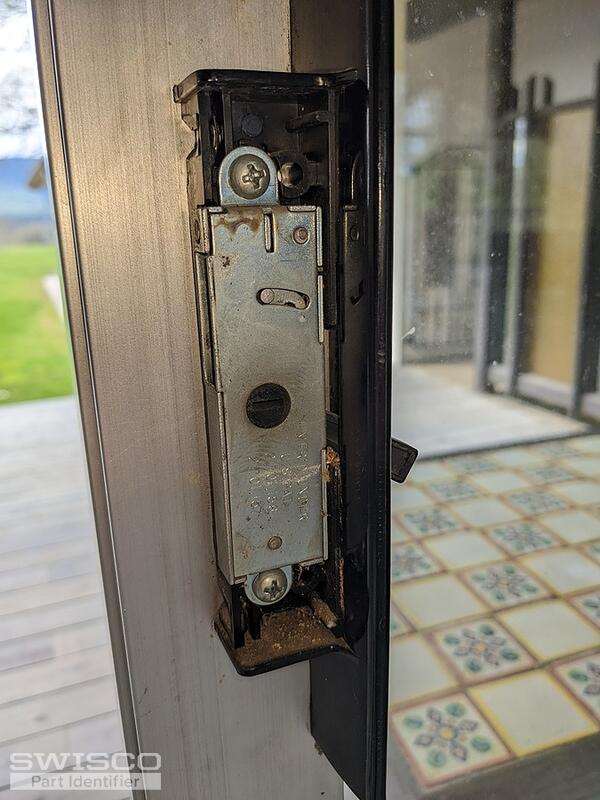

I'm looking to replace the lock and handle for my Arcadia sliding patio door. It has a sticker mentioning "Series 600".

Also the rollers if these are standard.

Thumbnail of the uploaded file named PXL_20220428_222243082.jpg
Thumbnail of the uploaded file named PXL_20220428_214258834.jpg
Thumbnail of the uploaded file named PXL_20220428_214304826.jpg
Profile picture of Tom
Tom from SWISCO responded:

Hello! Your door handle is a very old model, but it is similar in function to our 82-005. I think this is worth considering as a replacement but you should look over our specs and see what you think.

Alternate image for 82-005
Alternate image for 82-005

Profile view of the 82-005 handle set
Profile view of the 82-005 handle set

The rollers for this door are likely very far from standard, unfortunately. In my experience the only way to identify rollers is to take them out ahead of time. I know that's a lot of work just to see if you can even get the part, but it is necessary.

In the meantime, you can see our 81-074, 81-051, and maybe even our 81-082. All of these have been known to work on Arcadia doors but that is no guarantee. You really do have to remove the originals to determine what you need to buy. That's the only way to be sure.

A handy person from Corvallis, OR says:
Thank you, Tom, I think I can make one of those work.

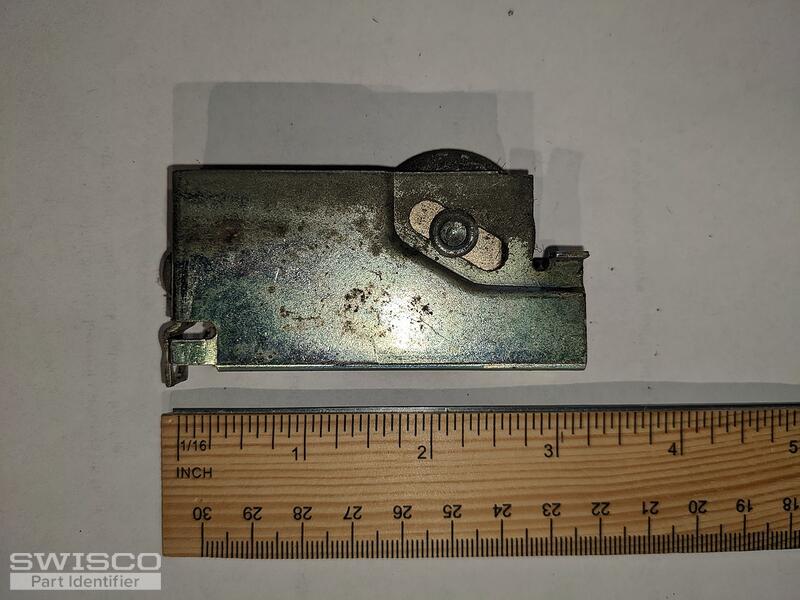

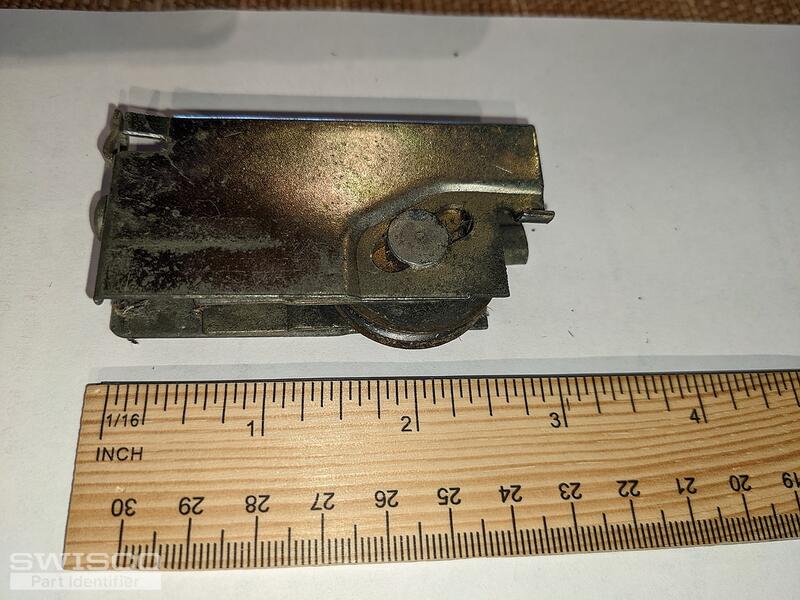

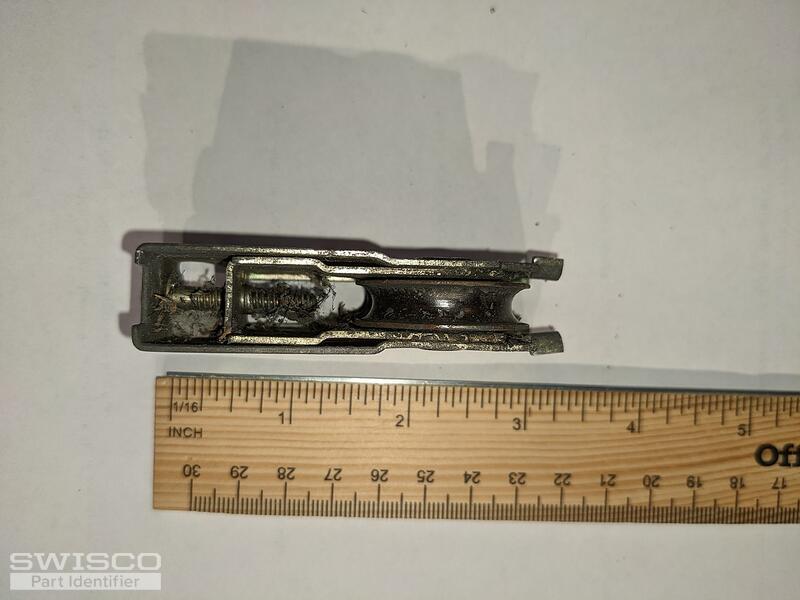

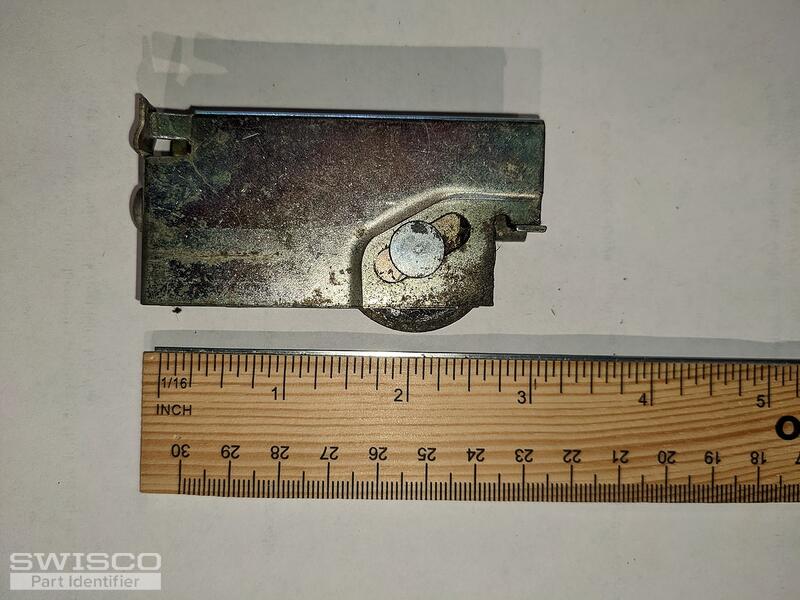

Here are some pictures of my roller.
Thumbnail of the uploaded file named PXL_20220506_170424432.jpg
Thumbnail of the uploaded file named PXL_20220506_170402471.jpg
Thumbnail of the uploaded file named PXL_20220506_170418281.jpg
Thumbnail of the uploaded file named PXL_20220506_170407275.jpg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

Hey there! I recognize this roller. This actually isn't made anymore, but the manufacturer recommends using the 81-256 as a replacement.

Please keep in mind that I haven't used this myself, so I can't be 100% sure how well it works a replacement, but it is what they suggest using. Look it over and see what you think.

Alternate image for 81-256
Alternate image for 81-256
