Locking Handle for Silver Line 5800 Sliding Glass Patio Door

Home Owner from Pittsburgh, PA

Mar 7, 2019 8:49 pm

I have what I believe to be a Silver Line 5800 Sliding glass door. It currently has a handle that is not keyed on the outside. I would like to replace the handle with a externally keyed locking handle. Do you have a part that would work for this? Would I need to replace the multi-point mortise lock and keeper to accept the new handle?

Thank you!

16 Replies

Bob from SWISCO

Mar 8, 2019 8:17 am

Thanks for posting. Unless your mortise lock isn't operating correctly there will be no need to replace it. If you could show us pictures of your existing handle set, we'll be able to identify the right options for you. Many thanks.

Home Owner from Pittsburgh, PA

Mar 11, 2019 9:46 am

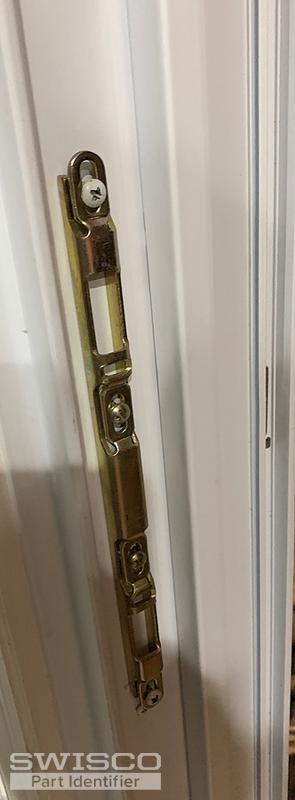

Thank you for getting back to me so quickly. Here are pictures or my current hardware. I hope this helps.

5 user uploaded images

Bob from SWISCO

Mar 12, 2019 10:05 am

Thank you! I recommend our 82-044 outside handle and 82-315 key lock. This should work well for you.

Home Owner from Newark, NJ

May 26, 2020 5:37 pm

I do have to replace the mortise lock for the same lock above. Which keeper and mortise lock would you recommend?

Tom from SWISCO

May 28, 2020 2:46 pm

The mortise shown in the photos above looks similar to our 82-265, which is compatible with the 82-249 keeper. You should double check to make sure all dimensions match up, though.

Home Owner from KS

Aug 2, 2021 4:21 pm

I to have a 5800 series sliding door with a non keyed lock

i would like to put a key lock on it, what do i need

Mike

Bob from SWISCO

Aug 5, 2021 10:03 am

Hey Mike. Can you show us pictures of your existing hardware? There's a lot of variation with handle sets that are irrespective of the door code or brand, so pictures is the best way to narrowing down what you need. Many thanks.

Quick Learner from Mahopac

Sep 6, 2023 8:03 am

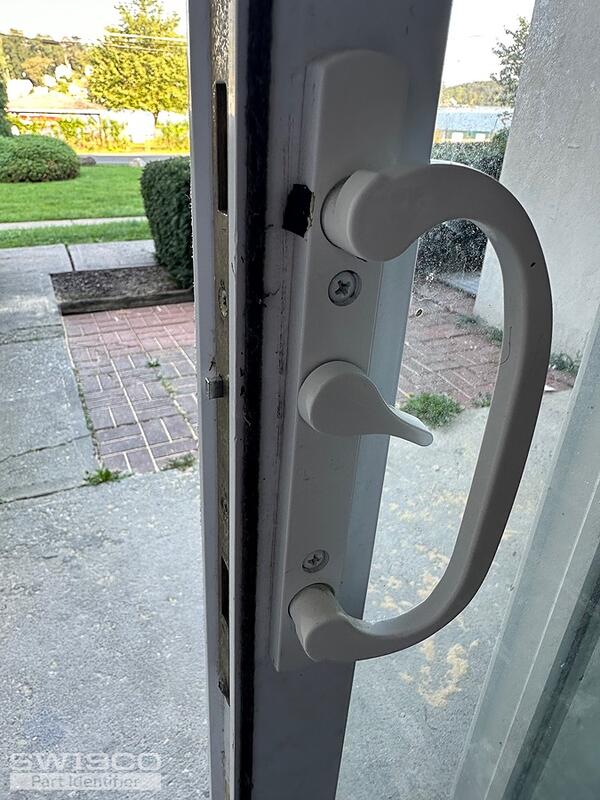

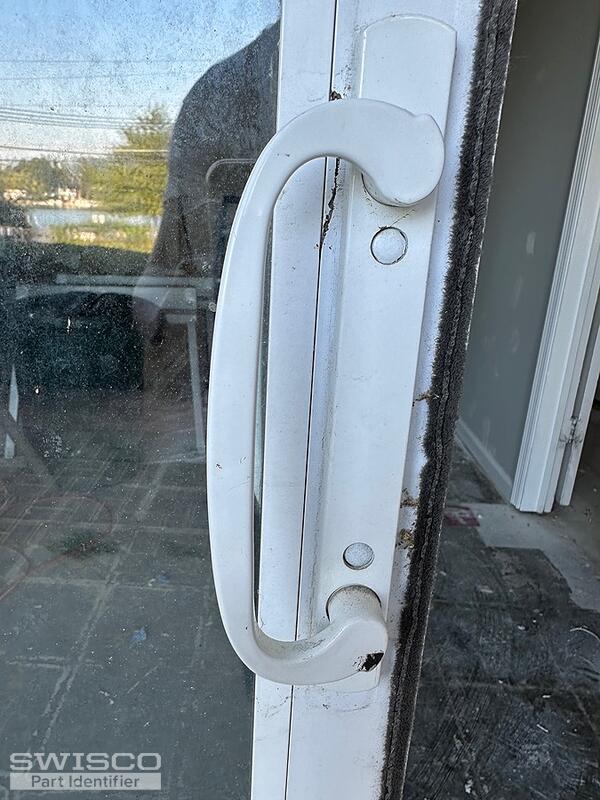

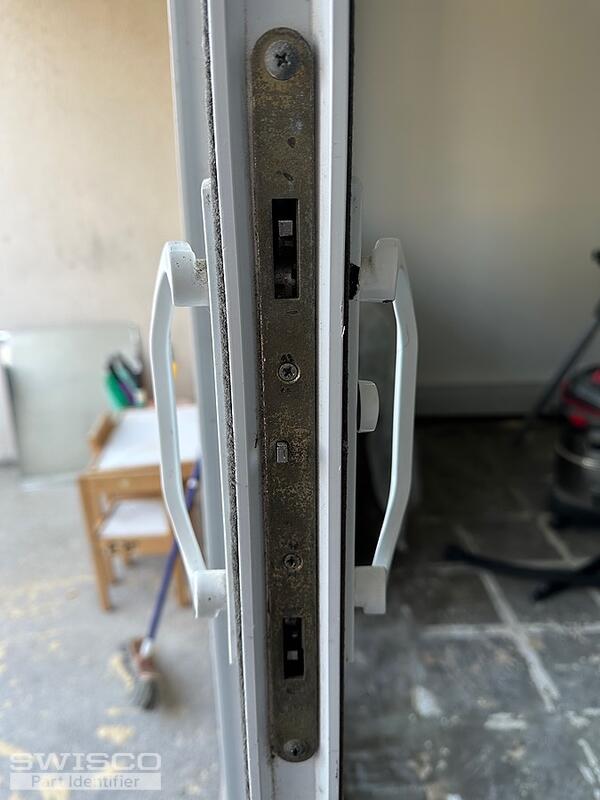

Hi just want to add an outside key lock for this thanks

3 user uploaded images

Tom from SWISCO

Sep 6, 2023 2:43 pm

Sure! My recommendation would be to just replace the full handle set with our 82-086. This is the same style as you original, but with an exterior key lock already built into the outside handle. I feel very confident that this will work for your application.

Home Owner from Naugatuck CT

Sep 24, 2023 3:50 pm

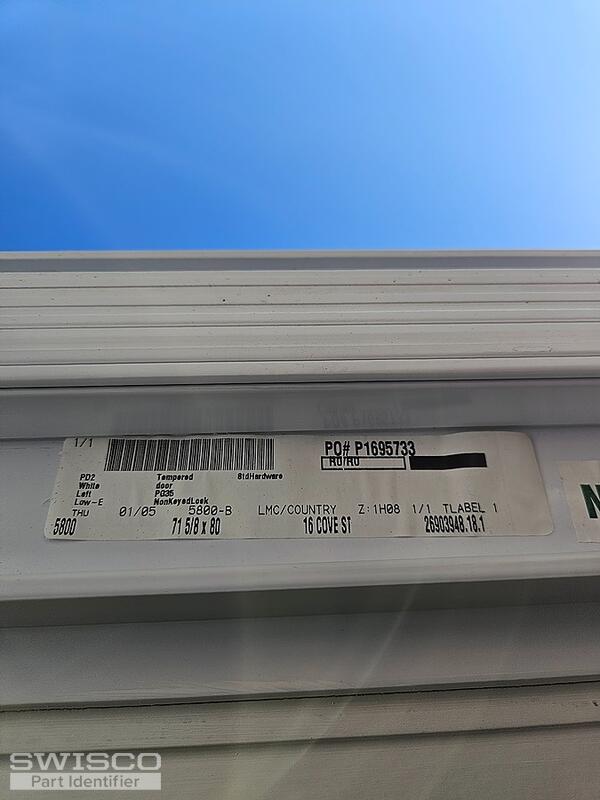

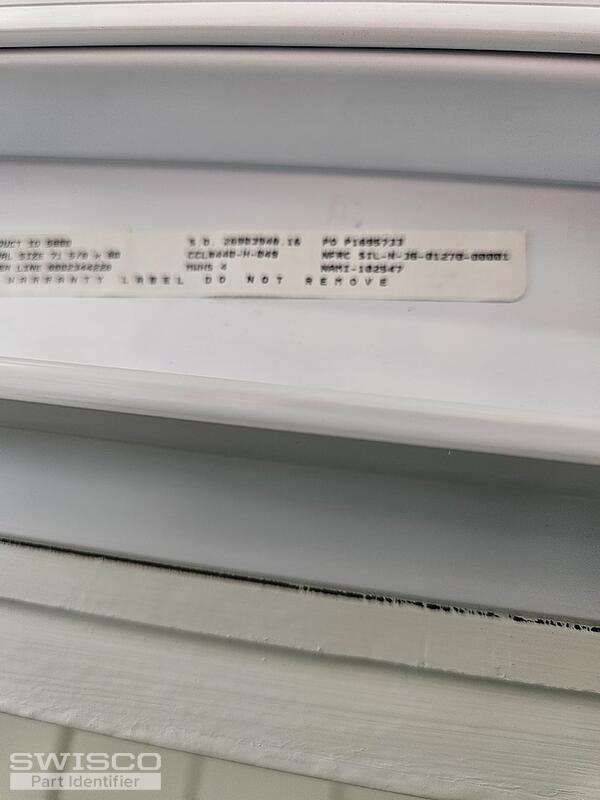

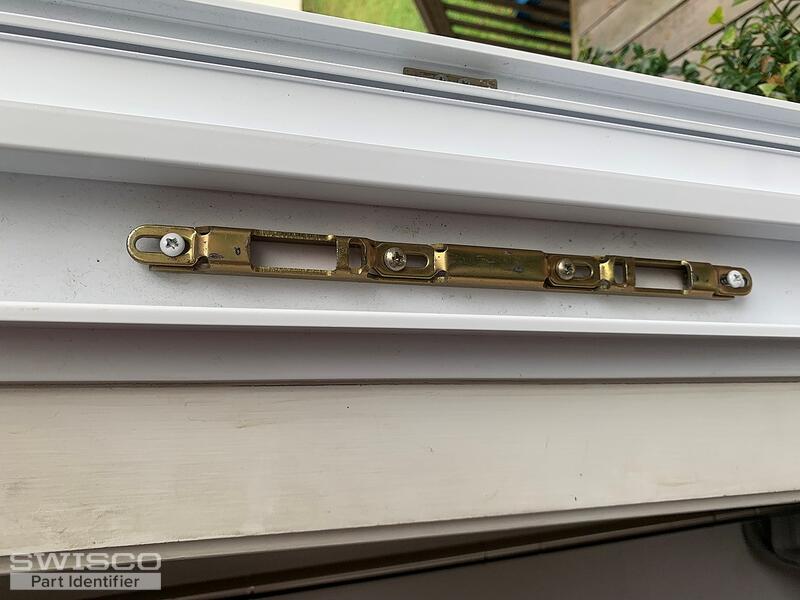

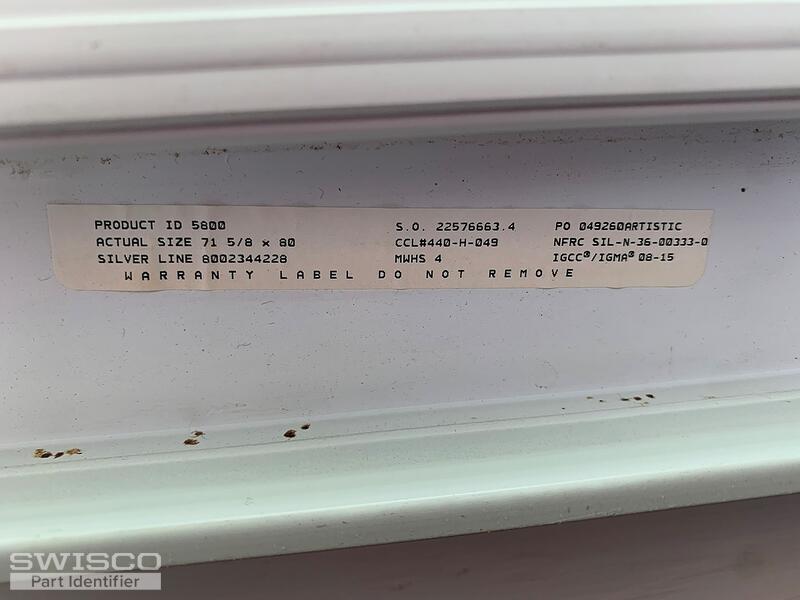

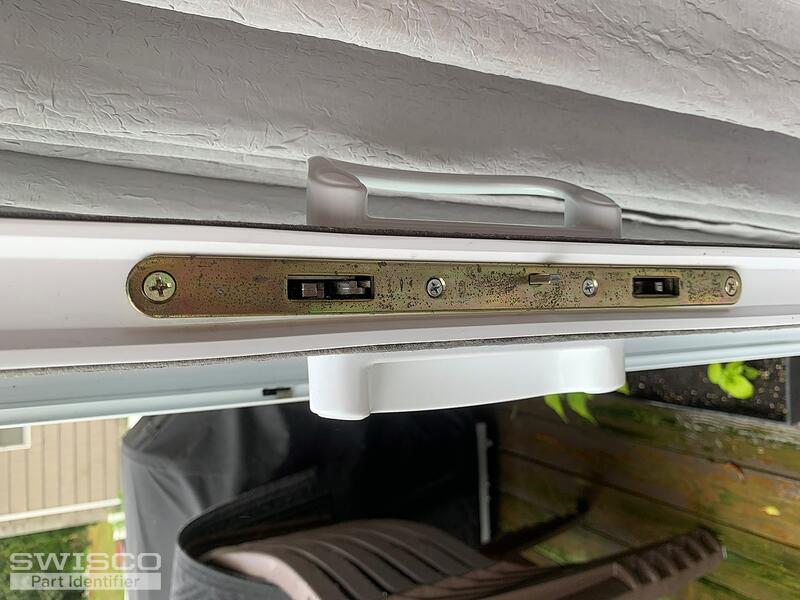

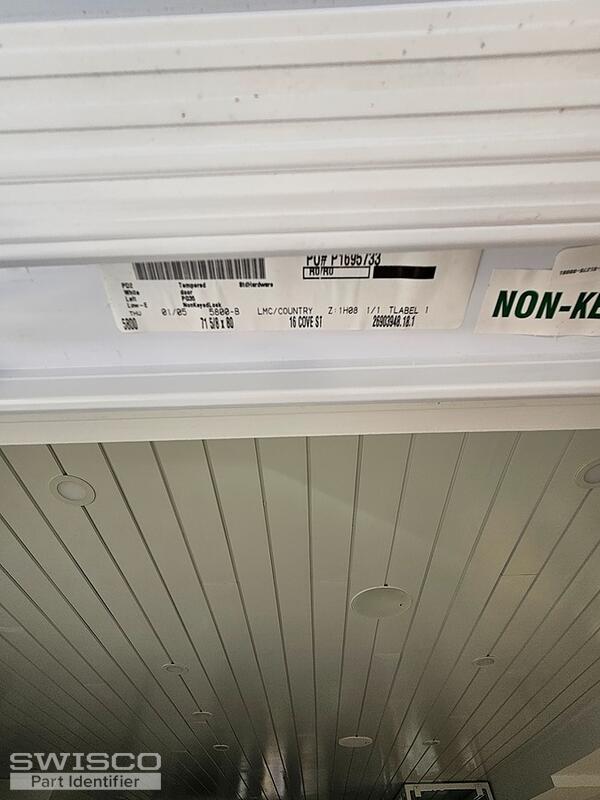

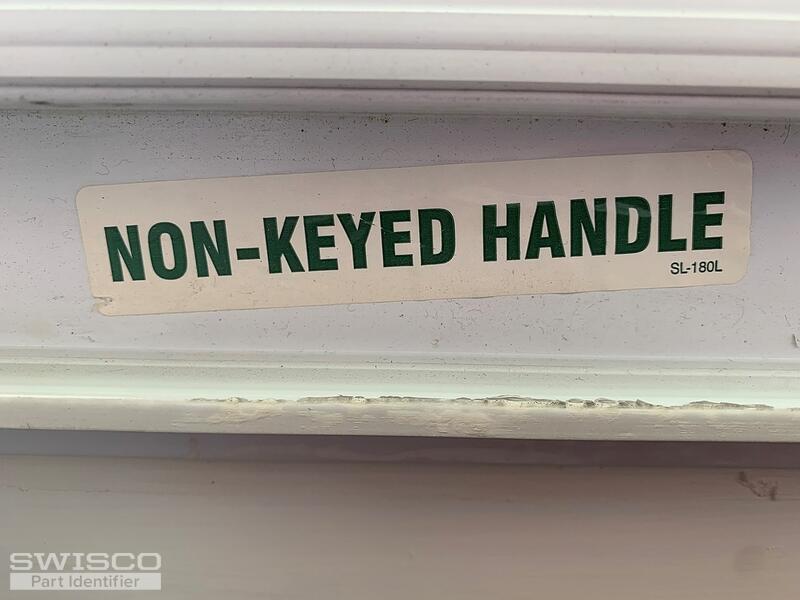

I do have to replace the mortise lock. Which keeper and mortise lock would you recommend? Also screen door lock.
I will be sending pics also

5 user uploaded images

Bob from SWISCO

Sep 24, 2023 5:10 pm

Hello there. This looks like the 82-265 Mortise Lock and 82-249 Keeper. Please compare. Let us know if you have further questions, and we'd be happy to help!

Professional from Connecticut

Sep 26, 2023 6:32 am

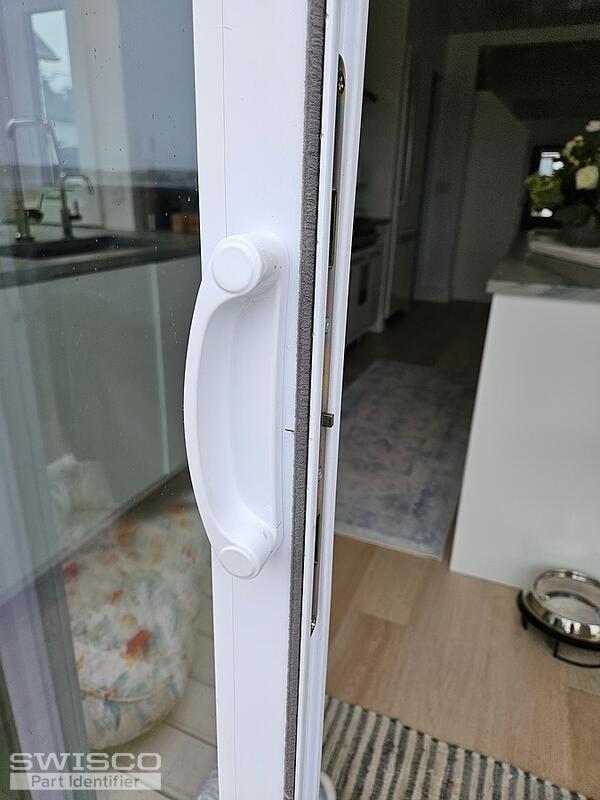

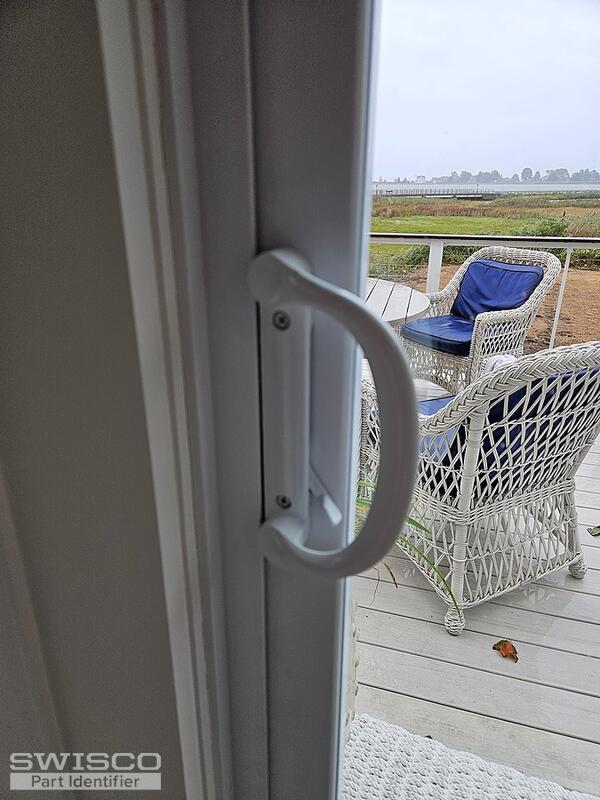

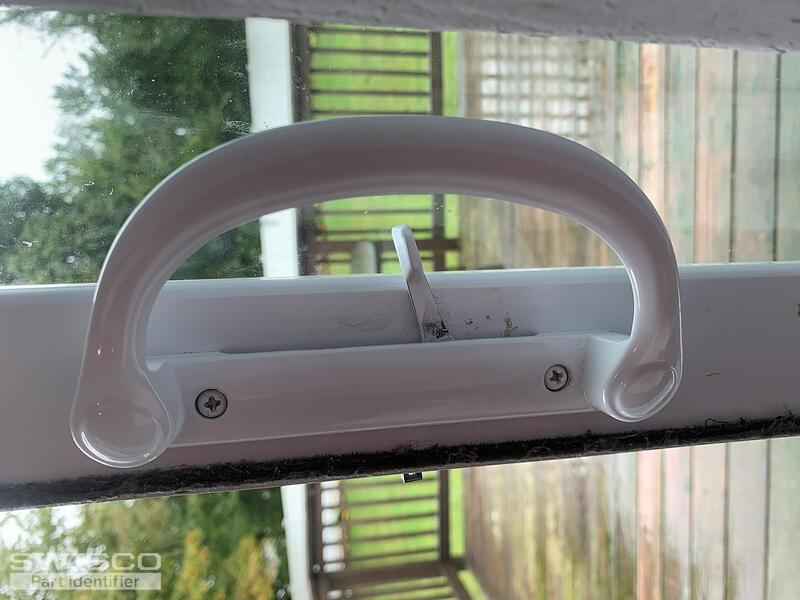

Hello I'm looking for a keyed outside handle for this silverline patio door lock my customer has. The center to center screw measurement is 3-7/8 or 3-15/16

5 user uploaded images

Tom from SWISCO

Sep 26, 2023 11:59 am

Thanks for reaching out to us! It looks like your thumb lever is in the lower most position on your handle; with that in mind, I'd suggest the 82-030B. This comes with an exterior key lock set in the lowest position and is available in white, black, or beige.

If you have any doubts as to the position of your thumb lever, I'd be happy to assist. I'd just need a photo of the door with the handle removed and I can tell you which position is best.

Quick Learner from Shepherdstown, WV

Jul 30, 2024 12:59 pm

My handles look like the OP. I see that 82-044 : Outside Pull Handle, 3-15/16" is discontinued. Can you suggest an alternate? I would like to add a key entry to my door.

Tom from SWISCO

Jul 30, 2024 1:30 pm

If your handle set is the same as the original post at the top of this thread, then the only option for a keyed exterior entry we can offer in recent years is the 82-081. This is the complete handle set, rather than just the exterior pull, but it does come with a key lock on the exterior side.
