Looking for 2 whole assembles

Question

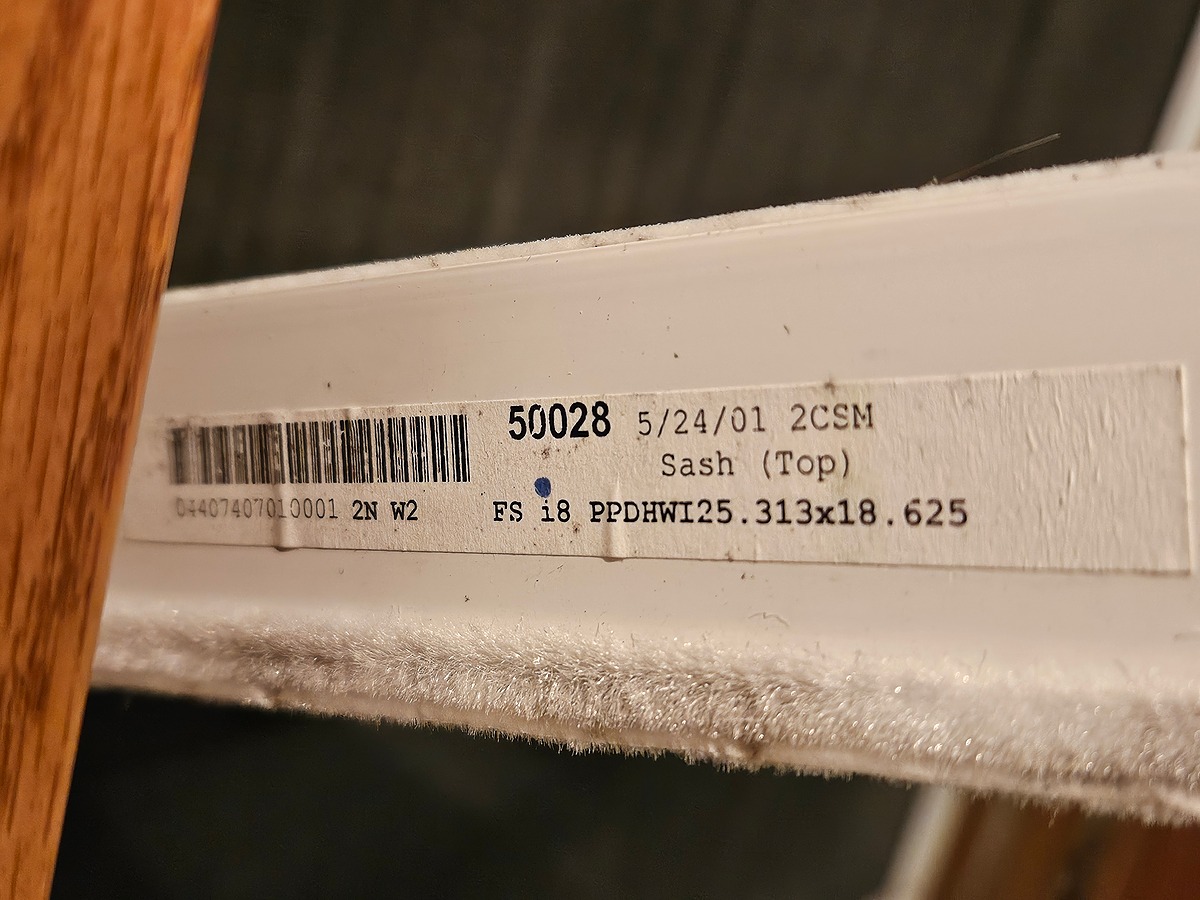

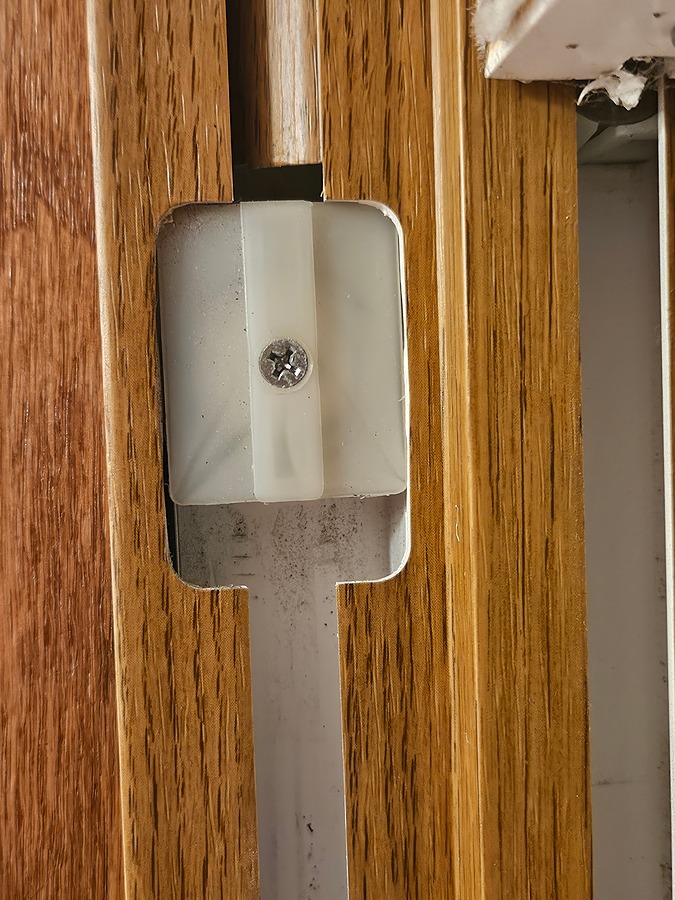

The coil spring says 407 J stamped on it.   The label included into photos is of the upper window since lower window stick is wore off so hope it helps getting correct parts.

Jasmine · Accepted Answer

Hello,

Thanks for your post! This appears to be a Simonton balance assembly. This is no longer made but the 15-259 Coil Balance Pivot Shoe should work to replace it. The existing pivot bar will not be compatible with this shoe, so you'll also need the 26-083 Pivot Bar. The specifications for these parts can be found on the website.

The compatible coil spring is the Series 159 Coil Balance. Since your existing spring is marked with a 407, you'll need the S159-07. To replace the cover, take a look at the 15-255 Coil Single Support.
