31 3 Channel Balancer in Photos

Question

Hello,

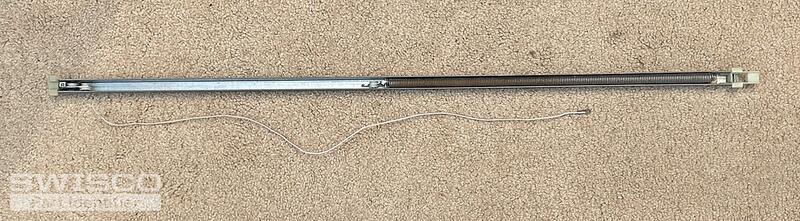

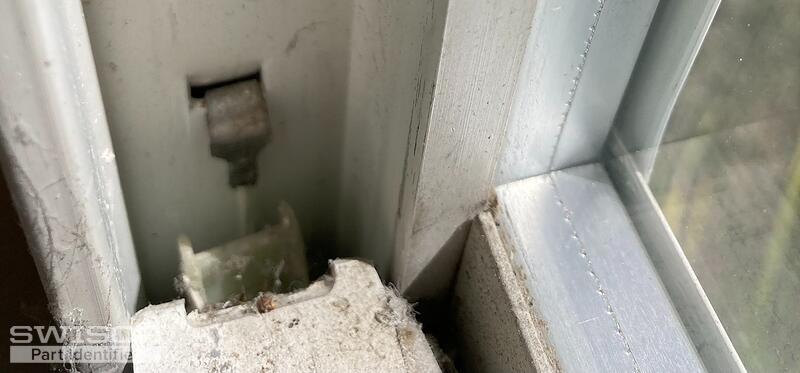

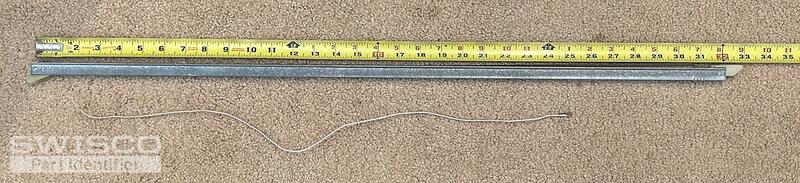

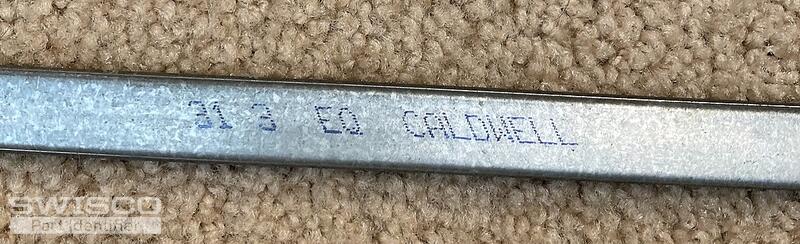

The nylon wire has popped in a couple of my balancers, so I would like to replace them; however, I don't know the part number of either the wire (assuming it's field-replaceable) or the whole balancer assembly. I also need the clip in the window channel that can be seen in image 6024 attached (maybe it comes with the balancer assembly?). Finally, I'm confused about the marking seen in image 6020. The "31" would indicate to me the length of the balancer, but as you can see in image 6019, its length is 32 inches.

Thanks in advance for your assistance.

Casey · Accepted Answer

Hello,

Unfortunately, the cord cannot be replaced and it should not be attempted since the balance is under considerable tension, which can lead to injury or further damage. With this combination of attachments, you could have either an S380-32 or S385-32 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

As you've already deduced, you'll also need 3130 spring strength options for your 32" replacement balances. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
