Looking for Window Pivot Bar and Sleeve
Home Owner from NYC
Dec 19, 2023 10:51 am
Hi. I can't a pivot bar carrier with the same dimensions as the picture above or the pivot bar. Can anyone help me out please. I've tried the pivot bars and carries 26-398, 26-405, 26-237, and 26-236 but none match hole placement in my windows.
3 user uploaded images
12 Replies
Casey from SWISCO
Dec 20, 2023 11:08 am
Hello,
Unfortunately, we do not carry an exact replacement for your pivot bar assembly but the housing resembles the 26-458 except that the pivot bar that comes with it is a different style. We also offer the 26-224 and 26-352 depending on how the specifications compare to yours. We can't make any guarantees but look over these parts to see if you might be able to adapt them to work for your application. Thanks for posting!
Dimensions for 26-458
End view of the 26-226 pivot bar
Alternate image for 26-352
Alternate view of 26-352
Casey from SWISCO
Dec 20, 2023 11:32 am
If you need new coil balances as well, we would need to see your original balance hardware removed from the window to compare to our inventory since our pivot bars are compatible with a number of different pivot shoes.
Home Owner from NYC
Dec 20, 2023 11:51 am

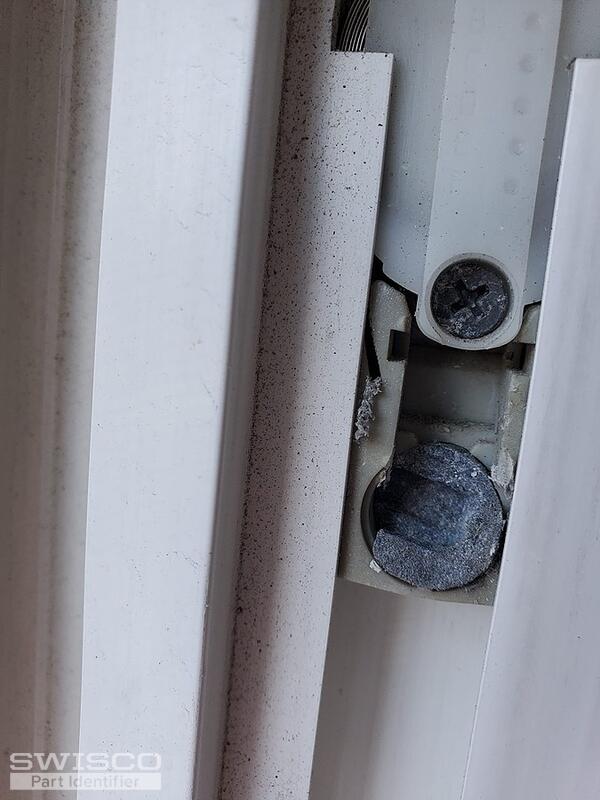

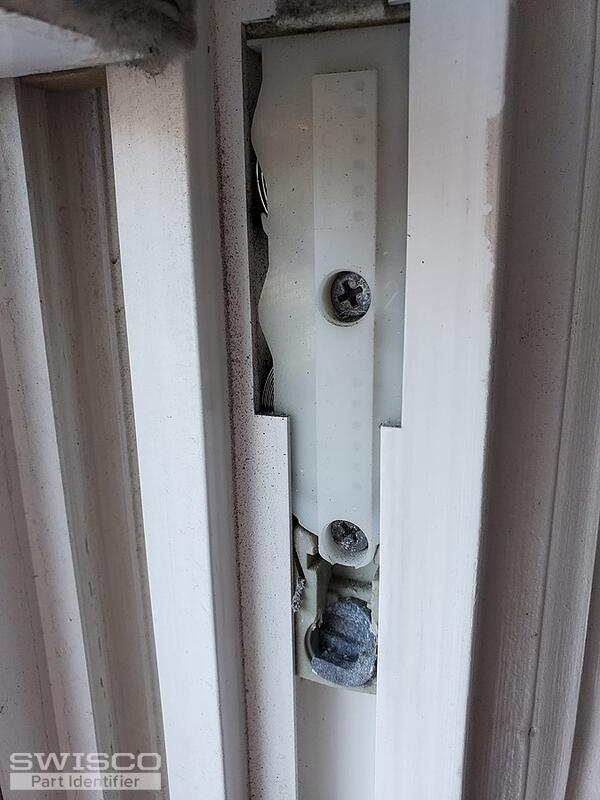

I'm unable to remove the coil balance right now. I do know that S140-12 fits perfectly and I have a few spare from Swisco, but not sure if the pivot bars your mentions, 26-458 and 26-352, would fit it. I have attached a picture of the coil balance still installed and the show is broken, if it helps at all.
2 user uploaded images
Casey from SWISCO
Dec 20, 2023 12:06 pm
I can't be positive with the hardware still installed but your pivot shoe resembles the 15-177, which uses the S152 coil springs. Both of our pivot bars should fit the metal cam but you will need to compare the backset of the installation holes to ensure that you'll be able to install it in the sash frame.
Alternate image for 15-177
Home Owner from NYC
Dec 20, 2023 12:46 pm

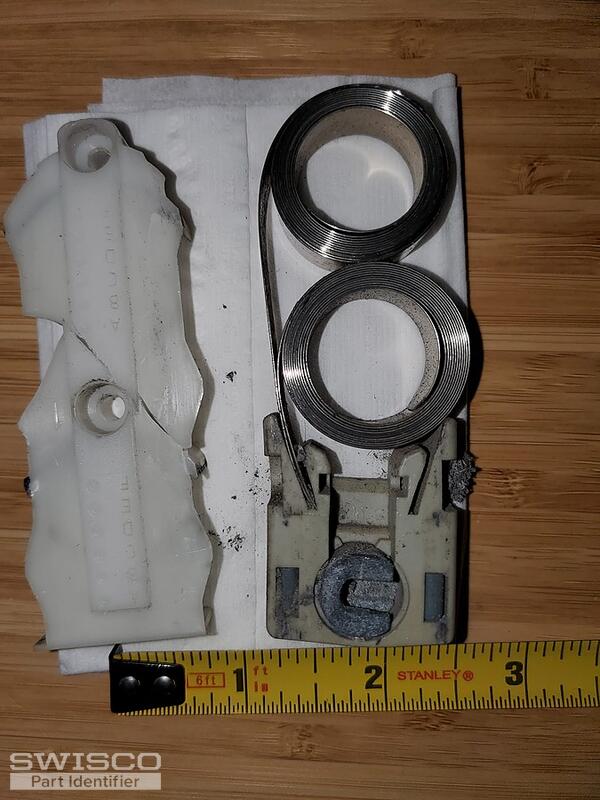

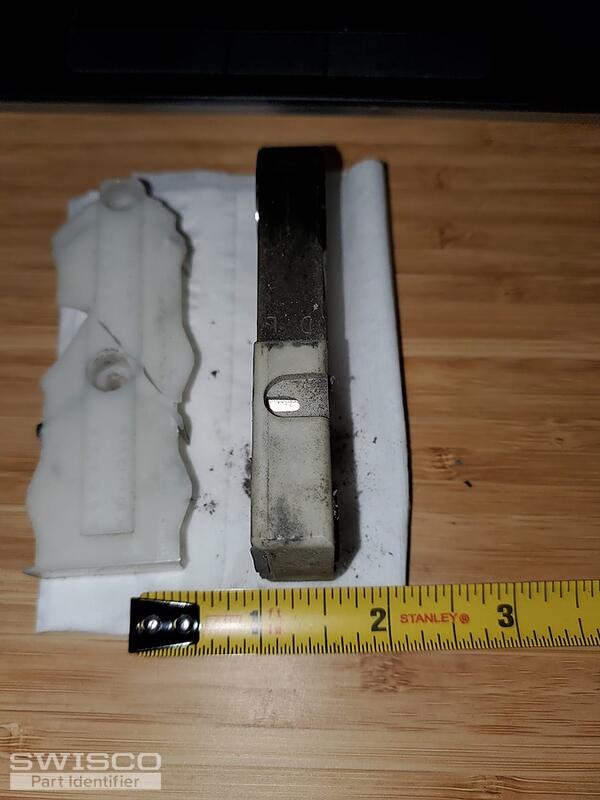

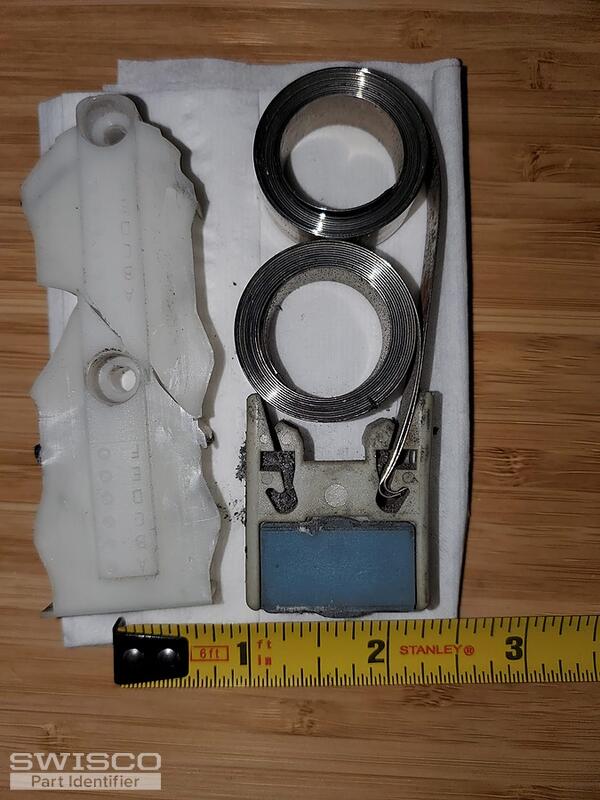

I was able to remove the coil balance after some convincing. It does look similar to the parts you mentioned before. The coil has a bend at the end where it attaches to the shoe.
3 user uploaded images
Casey from SWISCO
Dec 20, 2023 1:20 pm
We do not carry your coil springs with the same curved ends, unfortunately, but the Series 152 springs will work with the 15-177. The springs are attached to the side of the shoe with a screw instead of hooking onto it.
Home Owner from NYC
Dec 20, 2023 1:34 pm
Thank you so much. We really appreciate your help. I'll order these parts today.
Casey from SWISCO
Dec 20, 2023 2:05 pm
Great! We're happy to help and please let us know if you need anything else.
Home Owner from NYC
Dec 31, 2023 2:41 pm
Hi. I just received the parts and all looks good. For the Series 152 springs and 15-177 shoe which type of screw is recommended to ensure the spring stays in place?
