Quick Learner from Illinois
Jul 25, 2024 7:19 pm
Looking for a replacement coil the spring broke off and I tossed the metal out but still have the plastic part in the window seal

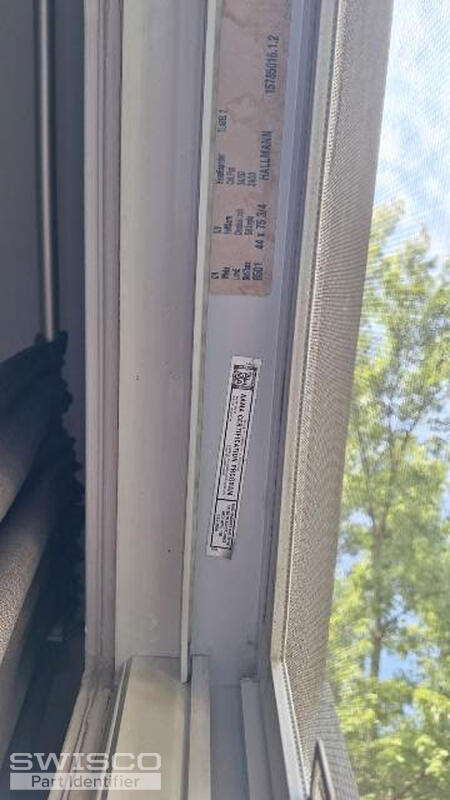

2 user uploaded images
1 Replies
Hello, thank you for posting,

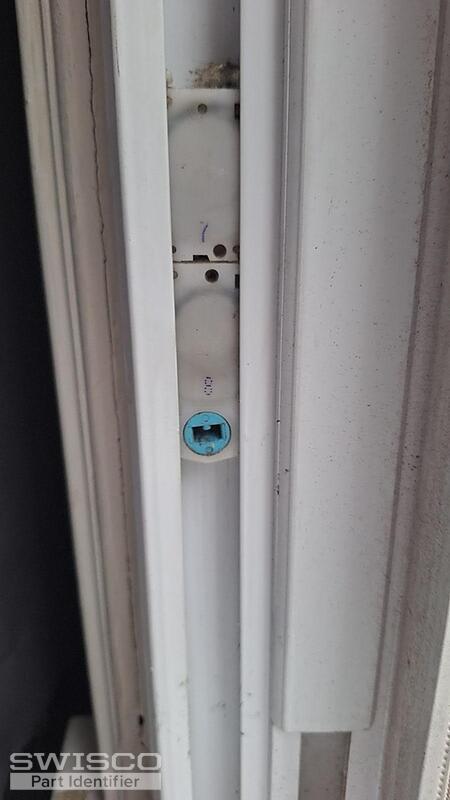

Your coil balance assembly resembles the 15-087 pivot shoe that is compatible with the Series 180 coil springs. Compare the dimensions below to confirm a good fit!
Based on the numbers stamped on the original housings, you will need to stack a S180-08 coil and a S180-07 coil along with using the 15-086 tandem coil housing.
I cannot see the bracket in your pictures, but if a new one is needed, please start by reviewing the 16-031 or 16-024 to see how they compare.
Let us know if you have any additional questions!
