Looking for correct replacement parts for +20 year old patio door

Home Owner from Virginia

Apr 16, 2019 12:10 pm

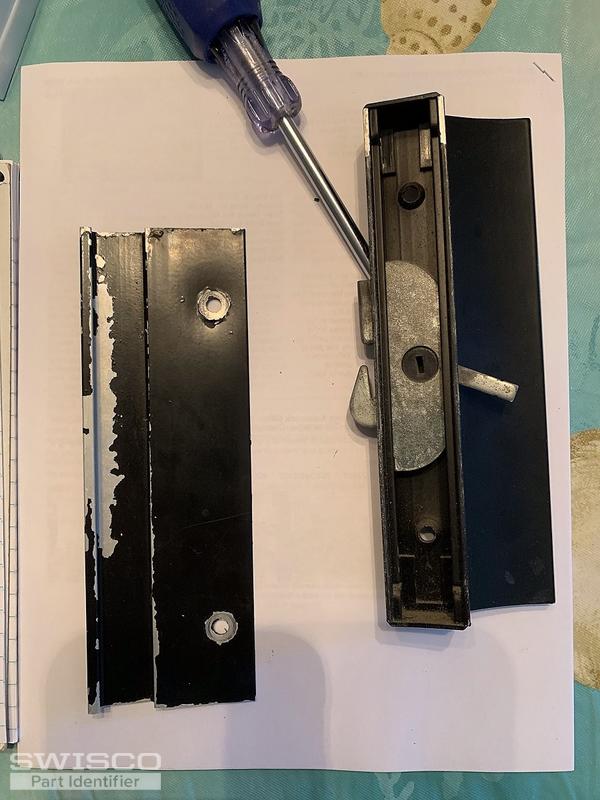

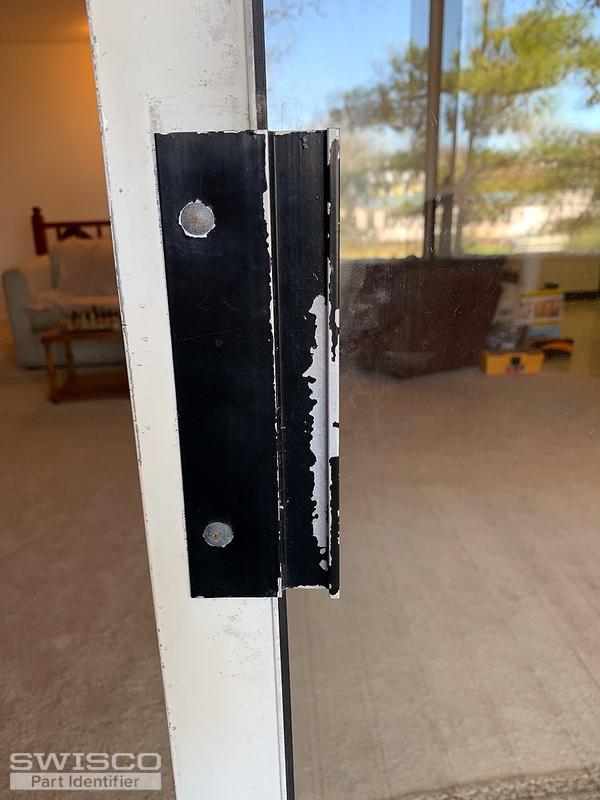

Screws appear to be 4 3/4 inch apart, center to center. Door is 1 inch thick. Locking mechanism is loose and will not stay in one place.

5 user uploaded images

4 Replies

Casey from SWISCO

Apr 16, 2019 3:42 pm

Hello,

It looks like the 82-005 surface mounted handle is the closest we have to yours but the mounting holes measure 4-15/16" on the centers. You may want to double check the distance between the mounting holes from center to center to see if this might work for you. Thank you!

Home Owner from Virginia

Apr 16, 2019 6:20 pm

Thanks for the reply. The screw holes may be closer to 4 7/8ths or 4 15/16ths.

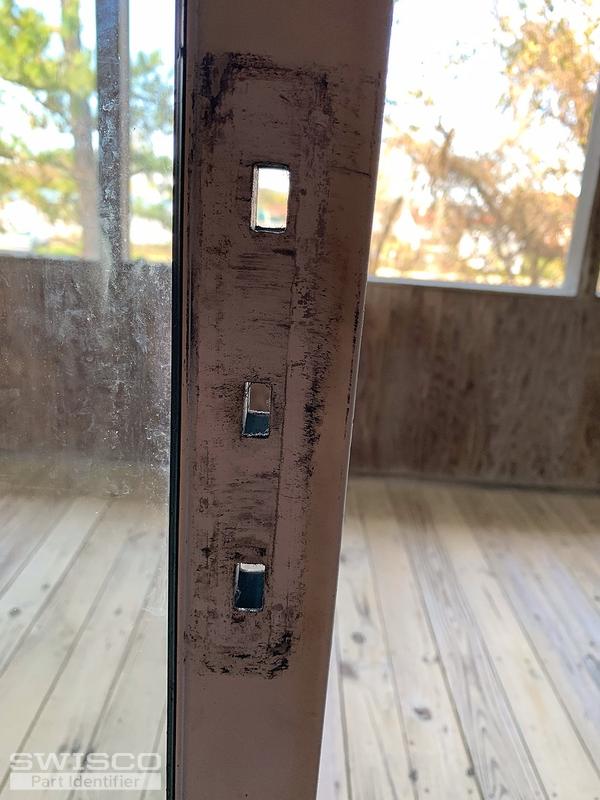

Actually, as you can see from the door frame picture attached, there is some room to maneuver on the placement of the screw holes. I will give yours a try!

1 user uploaded image

Bob from SWISCO

Apr 17, 2019 7:37 am

Sounds good. Certainly if it's 4-15/16" that should work with the 82-005. But let us know how it goes!
