Looking for counter balance spring

Handy Person from San Juan Capistrano, CA

Oct 8, 2025 8:45 pm

Customer says that the company that he bought these windows from is no longer in business. Currently the windows can stay open unless we place an object underneath it. Looking for a way to get replacement springs

4 user uploaded images

6 Replies

Bob from SWISCO

Oct 13, 2025 2:37 am

Hello there. I think we can help, but can you show me the pivot shoe further down the sash that the springs connect to? The identity of the sash shoe will determine the spring identity.

Handy Person from San Juan Capistrano, CA

Oct 14, 2025 10:27 am

Ok I'll get a pic when I set up an appt with client

Bob from SWISCO

Oct 14, 2025 1:00 pm

Sounds good. We will be here when you can get back to us.

Handy Person from San Juan Capistrano, CA

Oct 31, 2025 7:17 pm

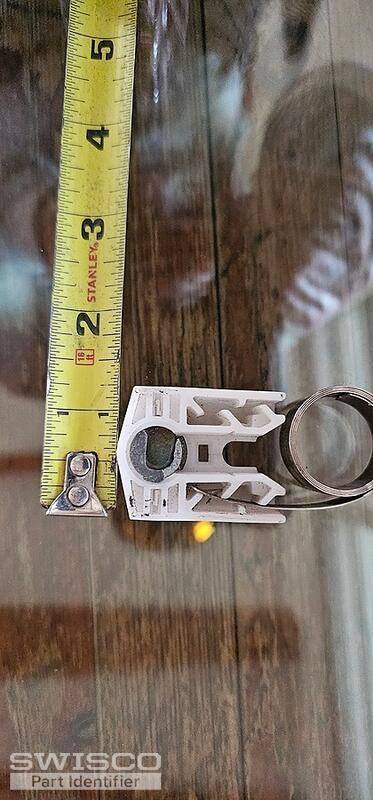

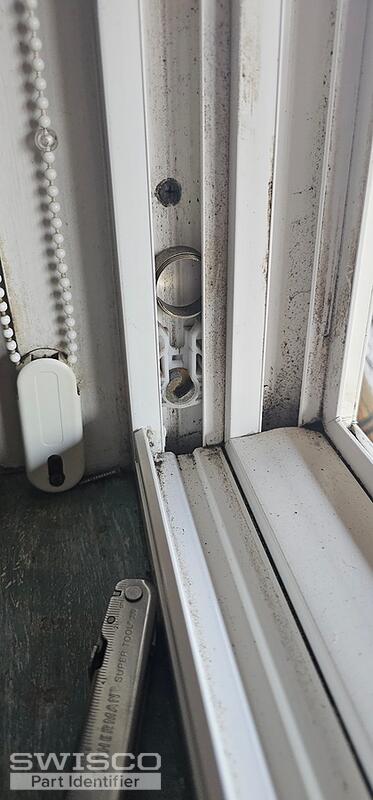

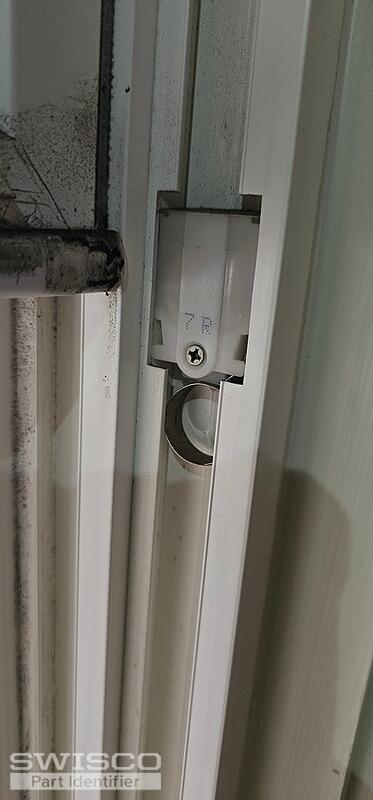

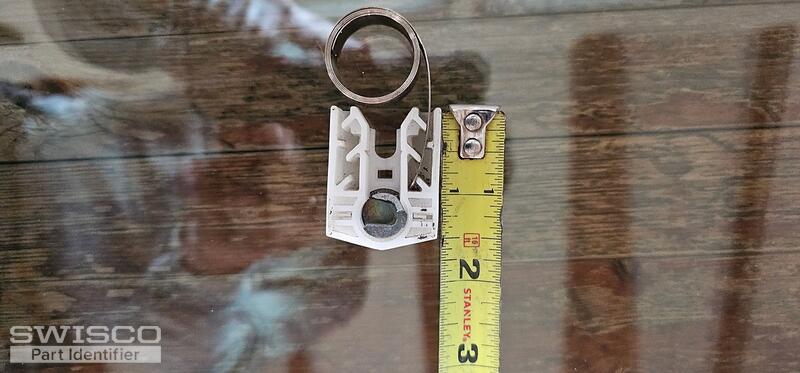

Hi Bob, I was able to get the additional pics you requested. Hopefully we have enough data to ID the correct replacement counter balance.

3 user uploaded images

Bob from SWISCO

Nov 2, 2025 11:25 am

This is perfect, thanks. What you have here is a Series 140 Coil Balance system. For any housing stamped '7', that means you can use the S140-07 7 pound system. Let me know if you have further questions.
