Looking for couple parts for 2000 Simonton window

Home Owner from Hartford, WI

Aug 20, 2022 3:21 pm

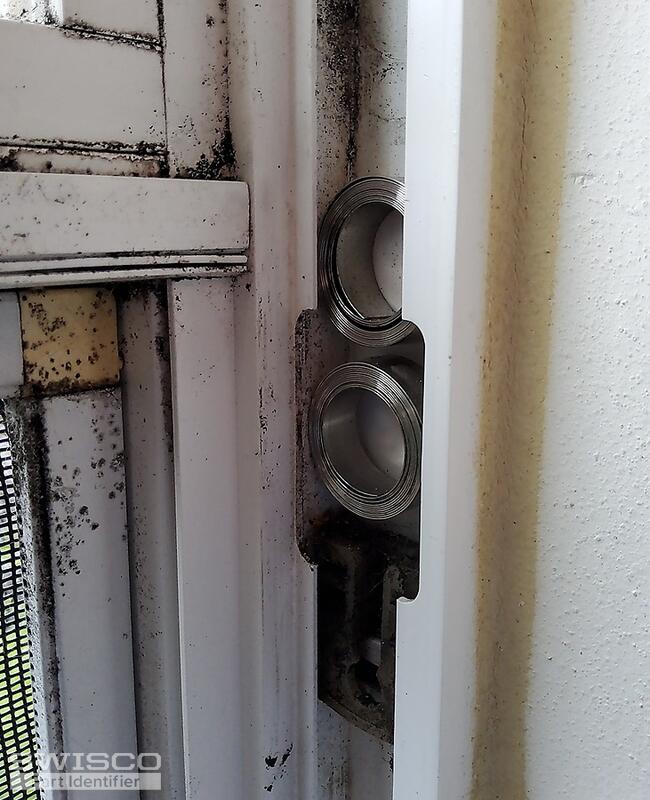

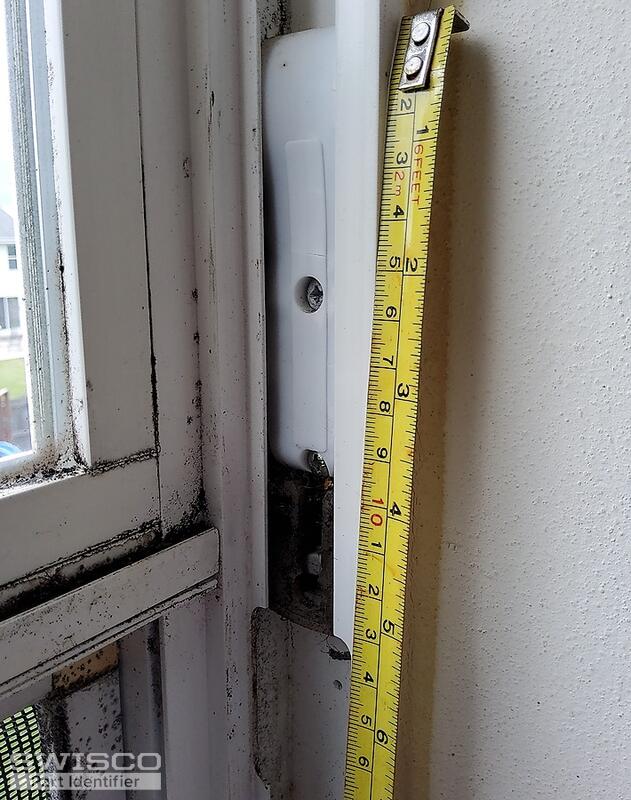

Believe this is a dimension 1 model. Side shoe has damaged cover and needs replacement. Pictures are from undamaged side. Springs are 1mm wide and 3mm in diameter.

Also need window latches.

5 user uploaded images

4 Replies

Casey from SWISCO

Aug 22, 2022 4:06 pm

Hello,

Your pivot shoe resembles the 15-199, which uses either the Series 160 or Series 165 coil springs, depending on the width of your original coils.

As for your tilt latches, take a look and compare the dimensions of the 26-244 and 26-243 to yours. Thanks for posting!

Home Owner from Hartford, WI

Aug 22, 2022 5:33 pm

Thanks. What about the plastic covers that go over the springs?

Casey from SWISCO

Aug 23, 2022 8:17 am

You can find the compatible covers under the related items section of the S160 and S165 product pages, depending on which option matches your original coils.
