identifying a sash lift
Quick Learner from Michigan
Jul 10, 2024 7:42 am

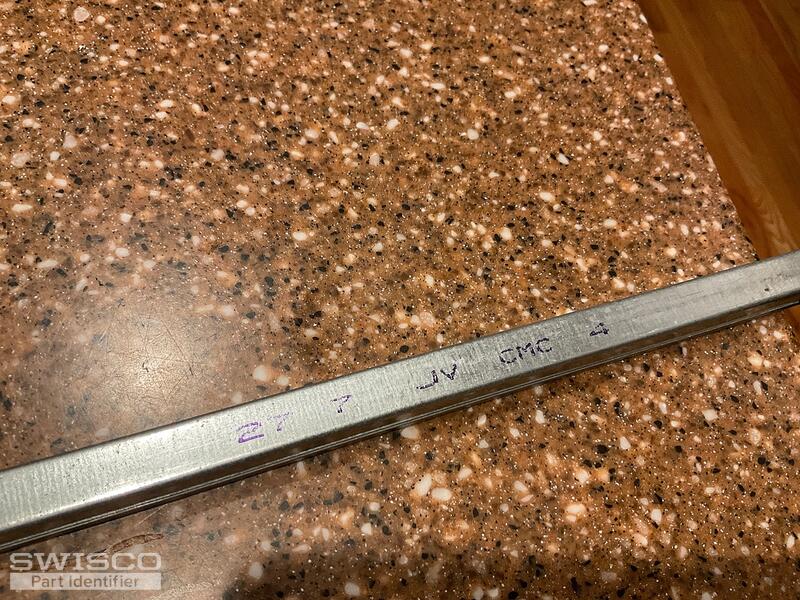

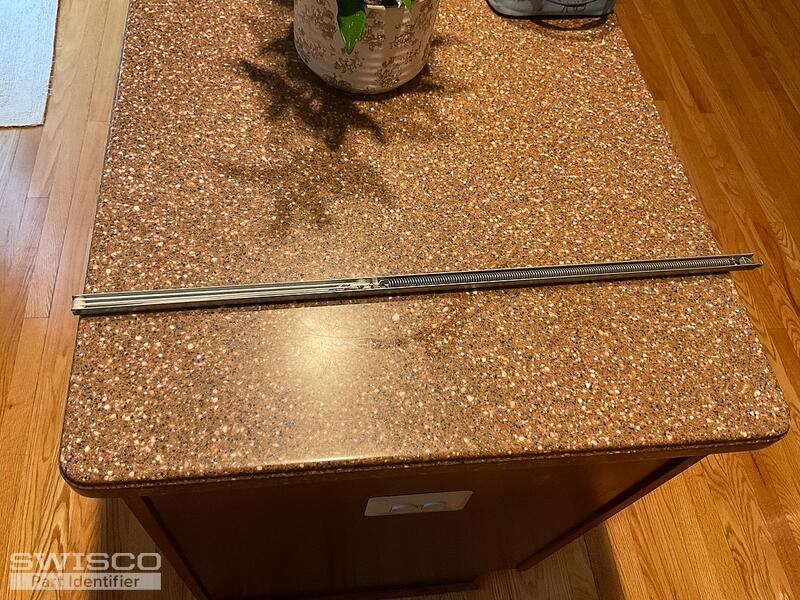

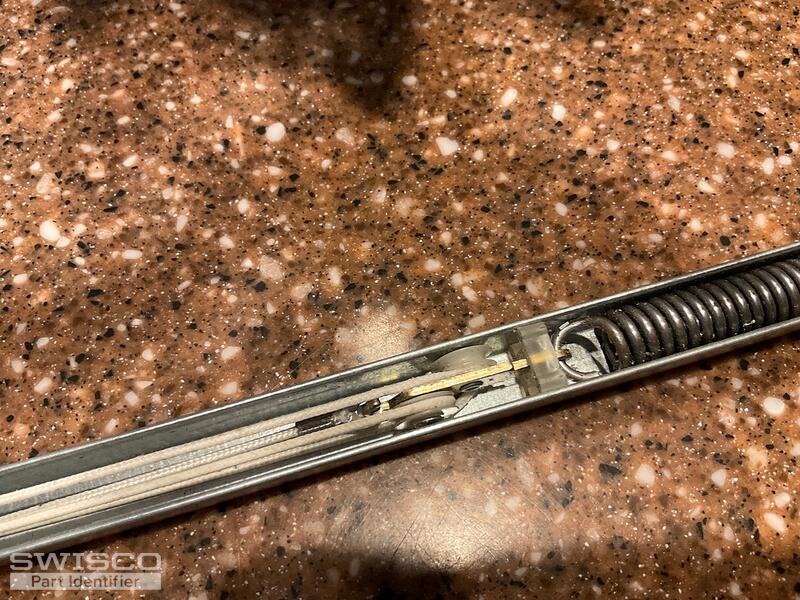

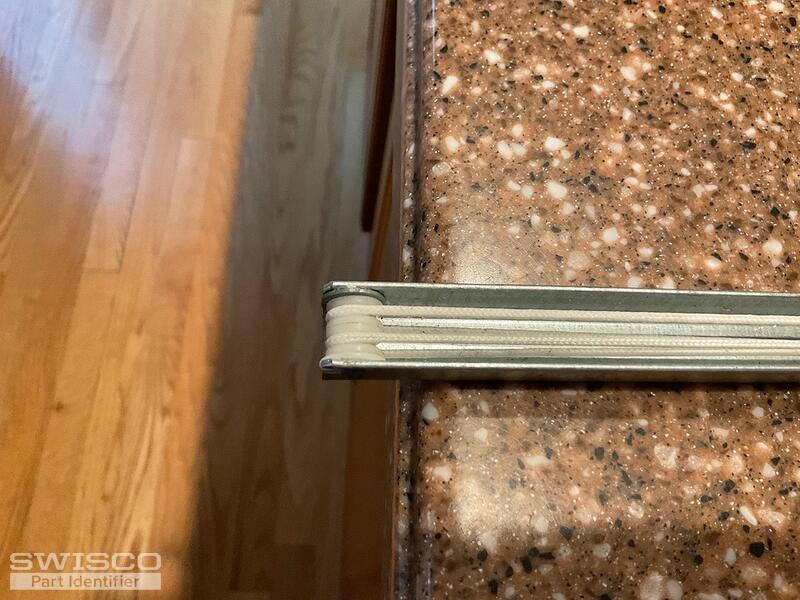

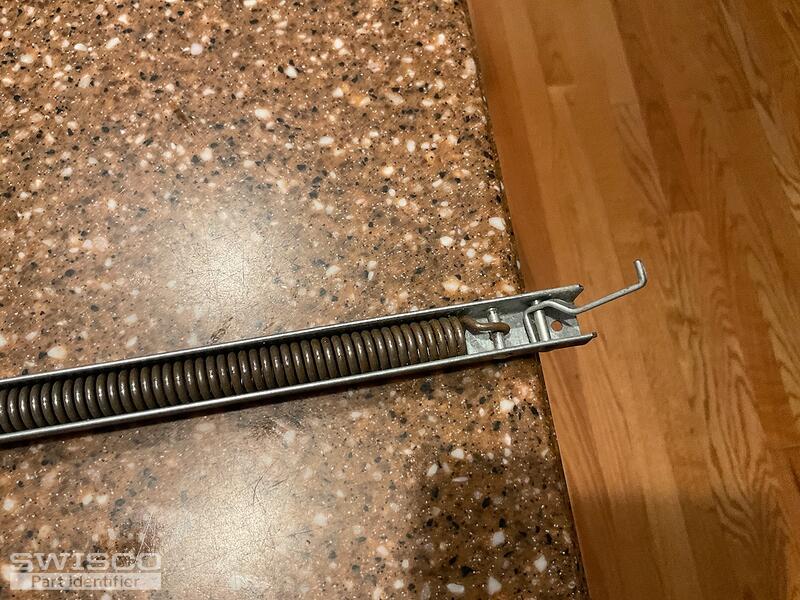

Here are some pictures of a lift where the string inside has broken. The metal measurement is 28". The stamp on it shows 27. I don't know what the brand is. Can you help me figure out what part I need ? Thanks. Glenn
5 user uploaded images
4 Replies
Casey from SWISCO
Jul 10, 2024 9:48 am
Hello,
Your photos resemble the S765-28 channel balance with 27-7 strength options. With that being said, make sure to confirm that the clip at the end of the pulley cord of an undamaged balance matches ours. Take a look and let us know if you have any other questions. Thanks for posting!
Close up view of the series 765 balance top.
Close up view of the series 765 balance bottom.
Quick Learner from Michigan
Jul 10, 2024 12:33 pm
That's exactly it, thanks for responding so quickly. It's on order !
Casey from SWISCO
Jul 10, 2024 1:34 pm
Great! Just let us know if you need anything else.
