Home Owner from Louisville Kentucky

Apr 22, 2023 2:05 pm

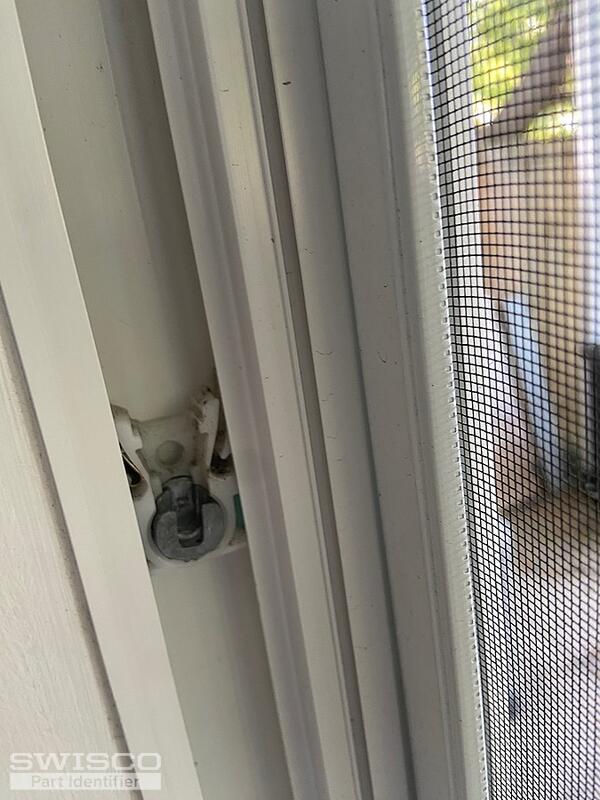

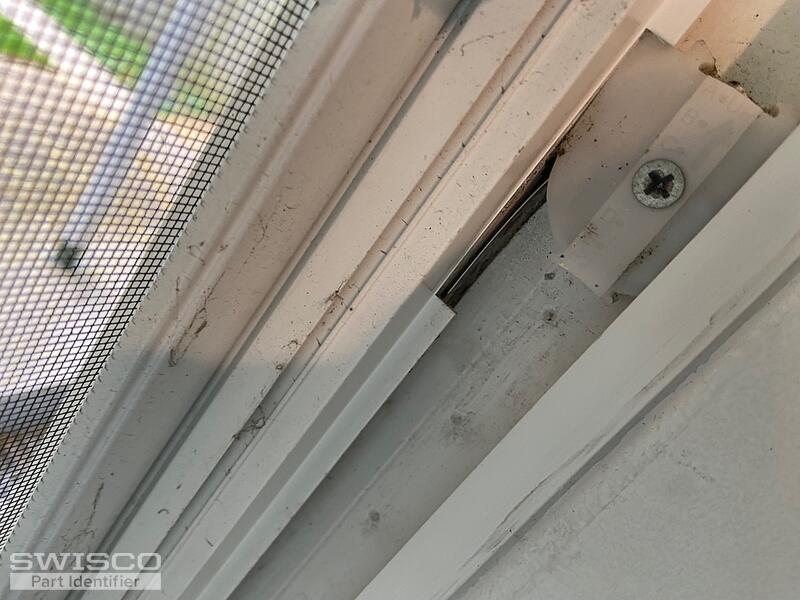

Looking to replace a broken coil and housing for my double hung window. The picture I've attached is a working window that is the exact same as the one with broken plastic pieces. There no name or identifying marks and the windows that are legible. Please let me know what other info you need

2 user uploaded images

7 Replies

Emily from SWISCO

Apr 24, 2023 3:23 pm

Hello there!

Thanks for reaching out to us. Can you show us a photo of your pivot shoe? If we can identify the pivot shoe, that will tell us the coils and coil supports that you'll need.

Thank you!

Home Owner from Louisville Kentucky

Aug 1, 2023 5:33 pm

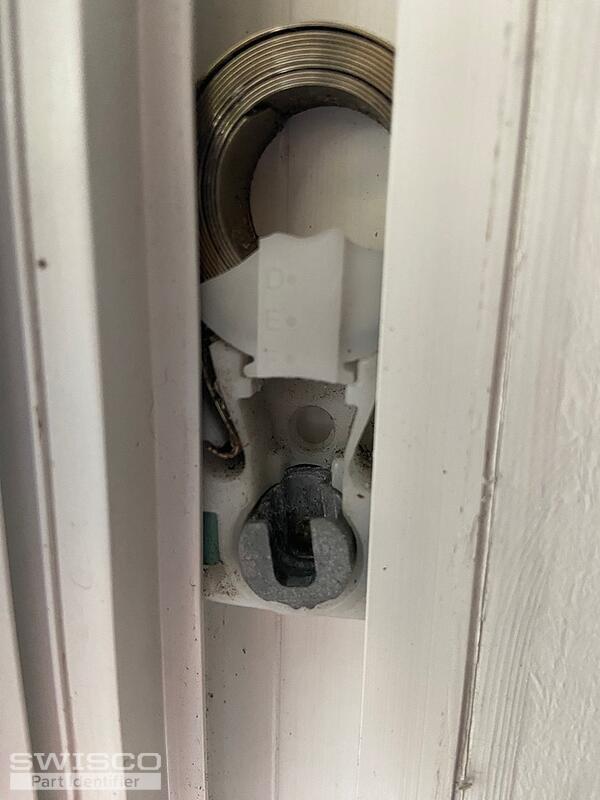

Hope this helps. Will i also Need a special tool for replacing these?

1 user uploaded image

Home Owner from Louisville Kentucky

Aug 1, 2023 5:46 pm

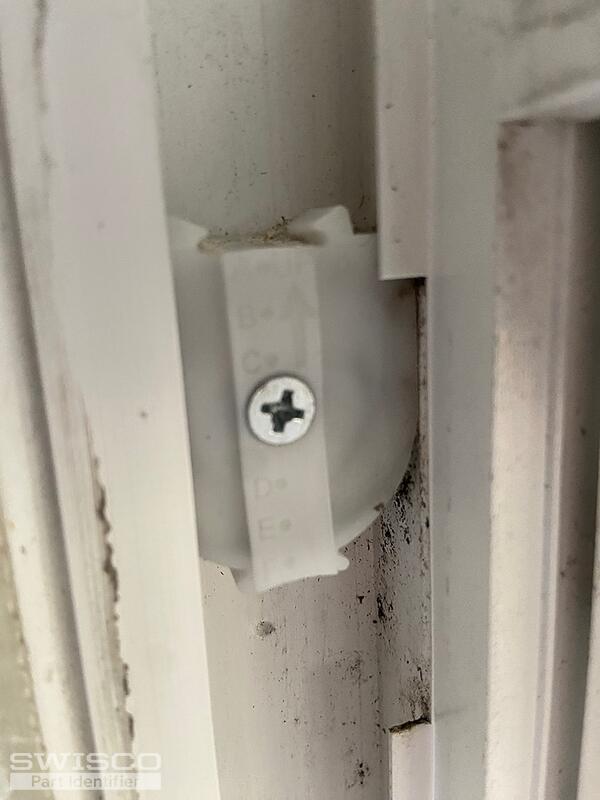

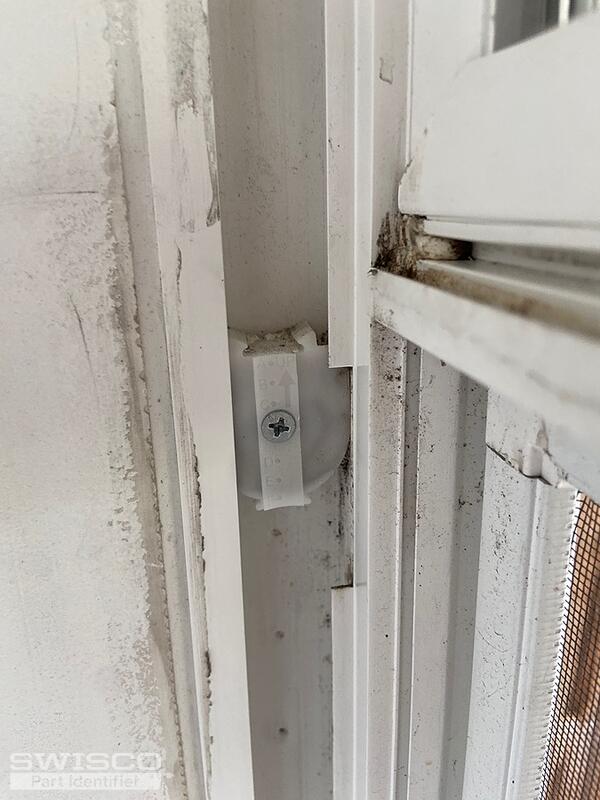

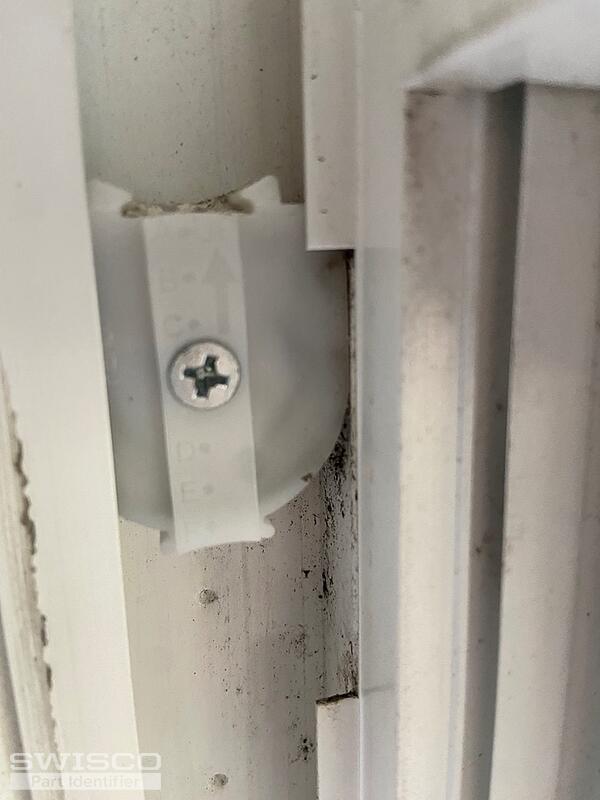

Also i couldn't find any numbers on it, but the window weights 18.2 lbs. Not sure if that helps at all.

4 user uploaded images

Emily from SWISCO

Aug 2, 2023 8:05 am

Thank you for the additional photos! I recommend you have a look at the Series 140. If the specifications align, you can use the S140-9. One of these on each side of the window will support a sash weighing 17-18.99 pounds. Special tools aren't needed but if your windows lack a cut-out to remove the hardware then you will have to make your own as shown in the video below.

Home Owner from Louisville Kentucky

Aug 2, 2023 8:54 am

Thanks! I'll order and try these

Emily from SWISCO

Aug 2, 2023 9:17 am

We appreciate your business! Let us know if you need anything else and we'd be happy to assist.
