Looking for replacement parts

A contractor from Sewell says:

My name is Mark

I emailed you a few weeks ago and have not heard anything.

Mark

Profile picture of Bob
Bob from SWISCO responded:

Hi Mark, I see we responded to your message on February 4th, here. Sorry if our response did not get to you! As said then, could you provide a picture of the pivot shoe removed from your window? And could you provide the width and thickness of the shoe? This will help us make sure we recommend the correct part. Thanks!

A contractor from Sewell says:

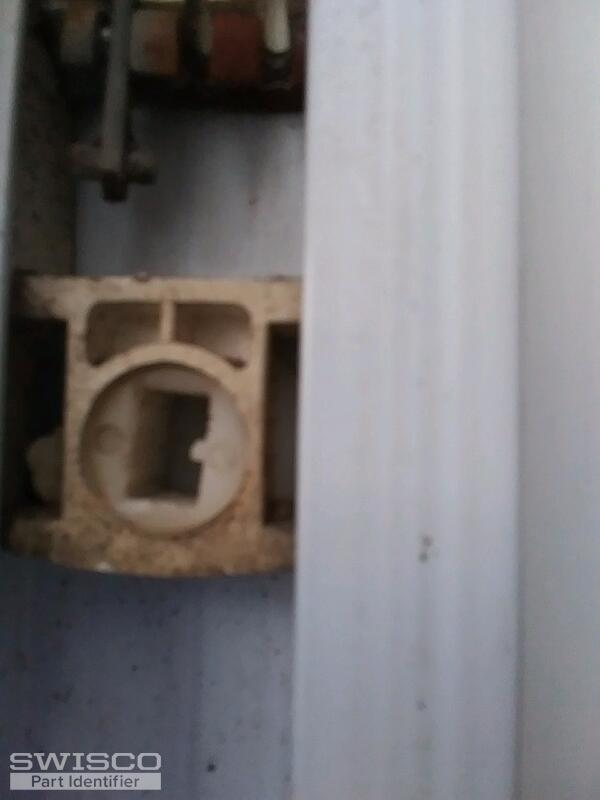

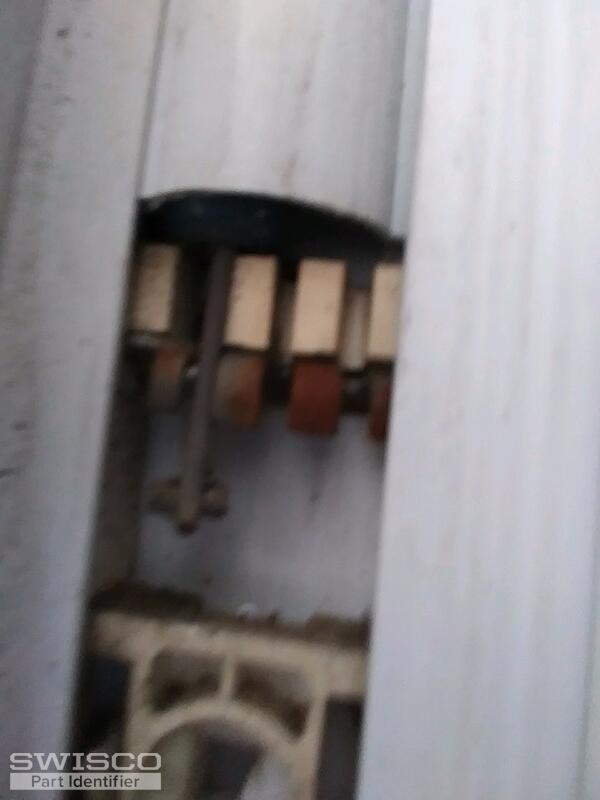

Sorry it took so long to get back to you.

I told my brother Steve the contractor your request. If this is not correct, please let me know.

Thickness 5/8
Width 3/4

Thanks.

Mark
Profile picture of Paul
Paul from SWISCO responded:

I don't believe the width is 3/4". I don't know of any shoe made that is that narrow. I think if you remove the shoe from the window you'll find that it's 1-1/4" wide and 1/2" thick. It's important to remove the shoe before you measure it for the most accurate dimensions.

One shoe that comes to mind is our 15-046. This may be a feasible match, but you need to remove your shoe from the window to confirm.
