Looking for replacement parts for windows
Hello,
Based on what I can see of your hardware, I suspect your window uses our 15-087 coil housing and S180 Roller-Tilt coil springs, which install using the 16-024 mounting bracket. There should be stamps at the end of your metal coils that will tell you what options to choose on our website. Also, see the diagram below demonstrating how these parts should install.
I'd recommend looking at another window with hardware that is still in good condition to confirm my recommendations. Thank you!
We have another window that's smaller in size (missing the manufacturer's sticker) but based on the diagonal and the length plus the width it would be H-LC25-40x63 (give or take).
Great. You'll need to remove the hardware to compare the dimensions to the parts I recommended in my previous message. Make sure to take note of the stamps at the end of the coils that you tend to replace since that will tell you how much tension they require to keep the sash raised. Thank you!
Should I just replace it with part 15-087 and hope it fits?
We have another window that's smaller in size (missing the manufacturer's sticker) but based on the diagonal and the length plus the width it would be H-LC25-40x63 (give or take). Would the smaller window take the same parts that H-LC25-48x77 takes?
Thank you so much! Thank you for being so responsive and knowledgeable. It's so nice to be able to fix the window on our own (I didn't have any luck with window repair people getting back to me with a quote for the repair.)

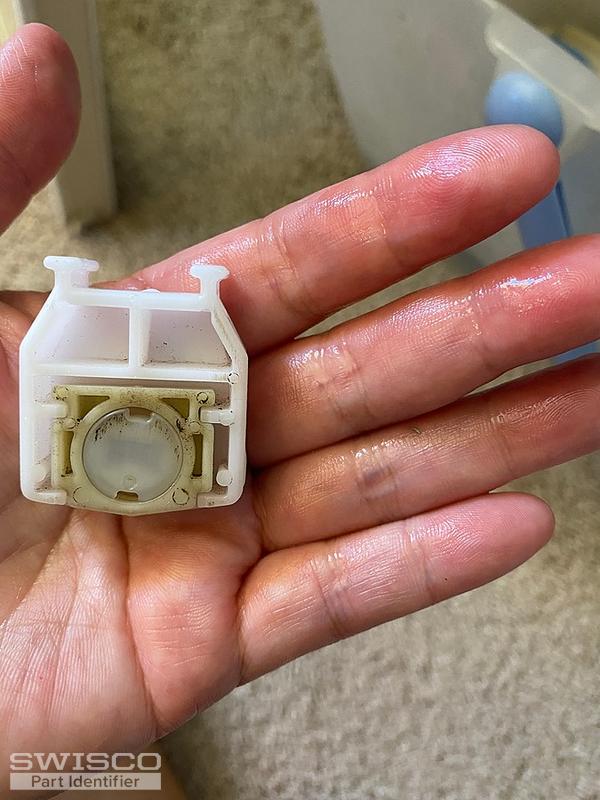

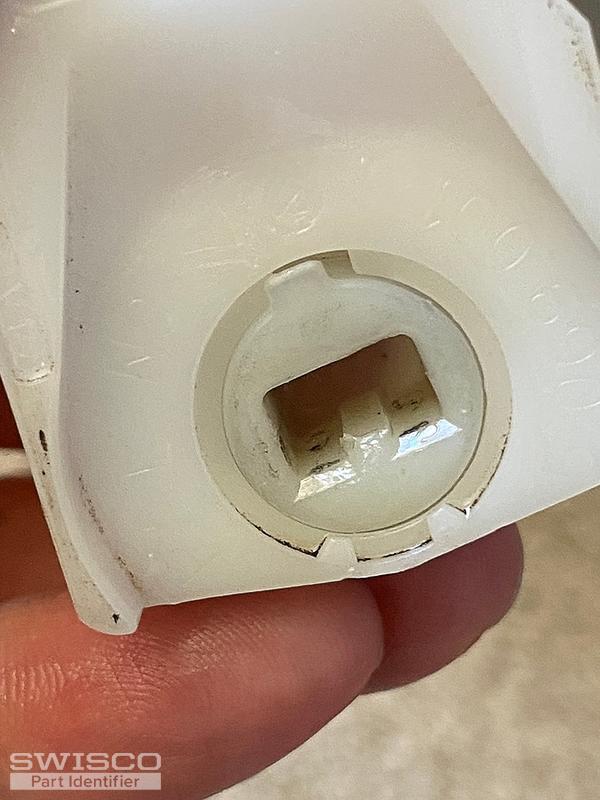

If the pivot shoe is not broken, you can reuse it with the new S180 coil springs. If you could show us a picture of your pivot bar, we should be able to confirm if the 15-087 pivot shoe is compatible.
The S180 coil springs will have a spring code stamped on them that indicate the amount of weight that each coil supports. The smaller window will use the same parts but it might have a lighter spring number.
