Looking for the correct part Quick-Tilt Pivot Shoe Sash Carrier

Question

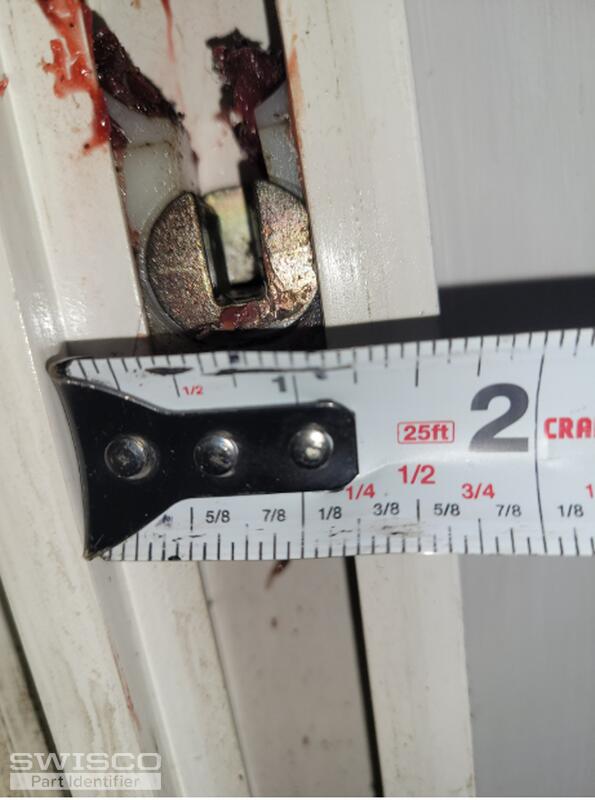

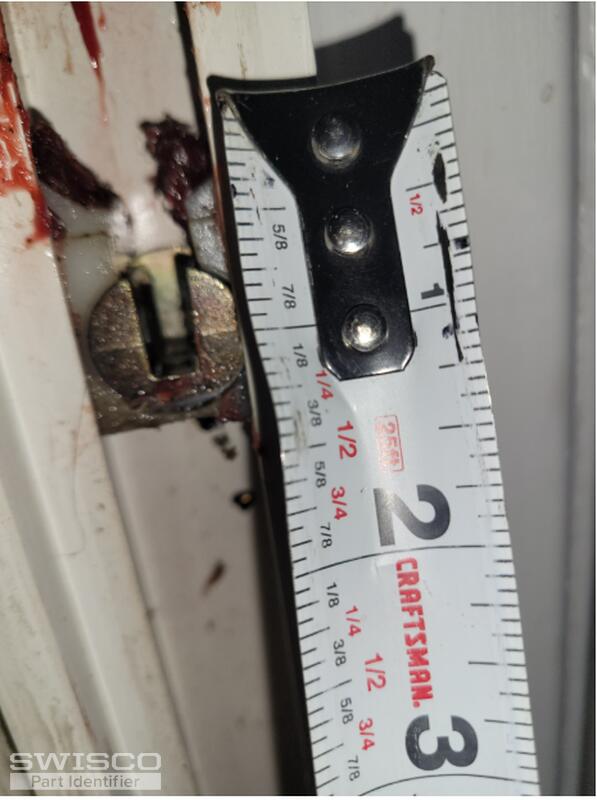

Quick-Tilt Pivot Shoe Sash Carrier for Sears Window for my house window I attached photos and hopefully you can help.
The photo is all that is left of the part. Both exploded when the top window came crash down. I tried to remove the front one, but the gear has a spring and not sure if the back gear also needs to have a spring. I will continue to see if i can remove the front one, but it is very difficult and I am afraid I will break the front one also. I hope this help to find the replacement of both parts.

Emily · Accepted Answer

Hey there!

Thank you for reaching out to us. It looks like you have an old-style Simonton pivot bar. With that in mind, we like to recommend the 15-259 which uses the Series 159 coil springs. You'll also need the 26-083 pivot bar which is sold separately. The video below will go over the replacement steps.

Please let us know if you have any questions!
