Looking for the right foot

A quick learner from Glendale, AZ says:
I have 2 windows that need all 4 balances replaced. I know they are 29" by 3/8" red balances. But I can't tell what kind of foot they need. Can you tell from these photos? They are aluminum non-tilt windows, likely made in the 70s.

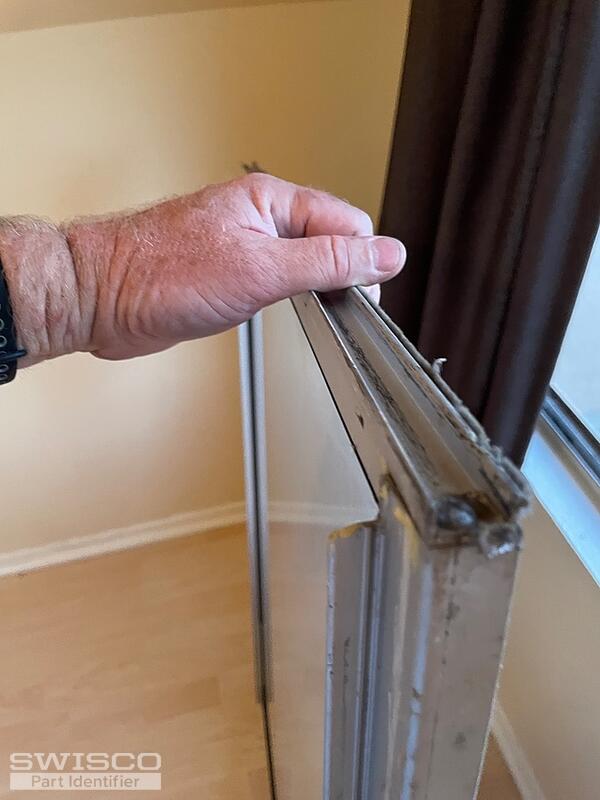

Thumbnail of the uploaded file named IMG_7408.jpg

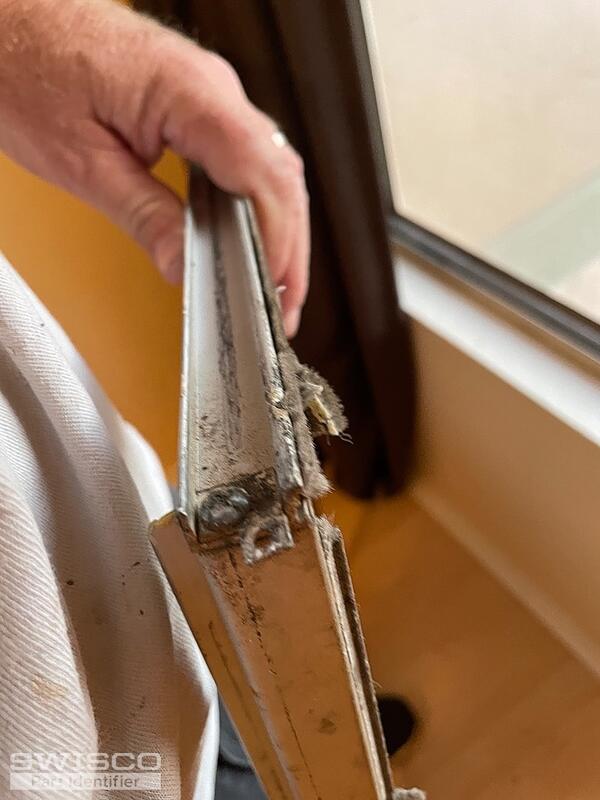

Thumbnail of the uploaded file named IMG_7409.jpg

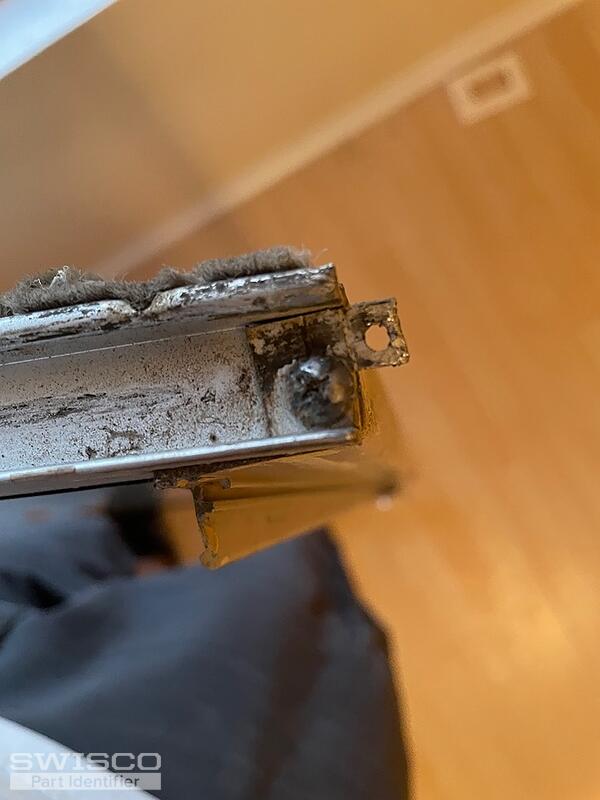

Thumbnail of the uploaded file named IMG_7410.jpg

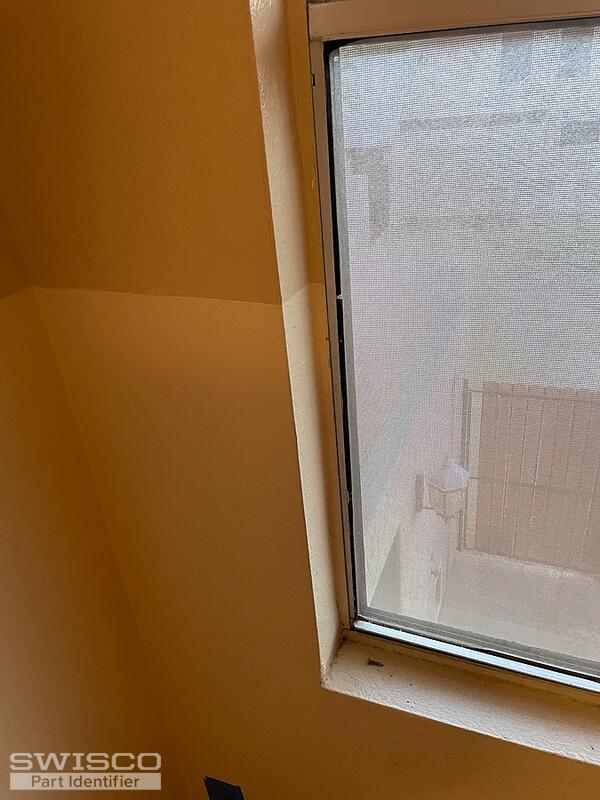

Thumbnail of the uploaded file named IMG_7411.jpg
Profile picture of Jasmine
Jasmine from SWISCO responded:

Thanks for reaching out! Our senior expert believes you have the old Robert E Lee balance system that isn't available however, we are able to supply you with a replacement solution.

The non-tilt spiral balance that fit your specifications is the S400-29 with a red tip.

In regard to your old bracket, I suggest removing the old clip and re-screwing the frame screw back into the sash. Then you'll need to install the 17-025 bracket. To do so, line it up so the bottom is flush to the sash frame, carefully drill a new hole for the bracket (be careful not do damage the frame or the glass) and use #33-073 truss head screw to secure it.

Let us know if you have any questions.
