Product Code: S400-29

29" Series 400 Spiral Balance

Name: 29" Series 400 Spiral Balance
SKU: S400-29
Price: 10.73 USD
Availability: InStock

$10.73

Quantity	Price
1-11	$10.73/ea
12-49	$9.66/ea
50-99	$8.58/ea
100-199	$8.05/ea
200-399	$7.08/ea
400+	$6.55/ea

Please Note: Bulk pricing applies only to purchases of the same option

red tip green tip +$0.25

Quantity

Add to Wishlist

Product Description

This is a Series 400 spiral balance for aluminum non-tilt windows. It moderates the operation of your window sash to allow the window to stay open when raised.

This balance has a 29" long metal tube. When determining the length only measure the metal tube.
The strength you need should be indicated as a color tip at the end of your old metal tube. If you do not see a color tip weigh your sash on a scale and refer to the chart below.
The metal tube measures 3/8" in diameter and houses an internal spiral rod with cross-piece.
Can work for either the left or right side of the window interchangeably.
Spiral window balances come fully lubricated and ready to be charged.

Color Tip	Sash Weight Range
red tip	10 to 22 lbs
green tip	14 to 26 lbs

*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.

Good Idea!

For best results, replace window balances in pairs (though sold individually). An old balance will overwork a new one, causing faster wear and uneven operation. Paired replacement ensures optimal, lasting performance.

Helpful Tip!

You should choose the color tip that matches the color tip of the balances you are replacing. If you do not see the tip color available in 'options' or you are unsure of which color to choose: ask our experts for help.

Spiral balance replacement

30 year old Champion windows, double-hung, non-tilt. Not the "Champion Windows" you know nationally but a local Houston company that went out of business years ago. I believe the spiral balance is the 400-29. They are 3/8" and 29" with no attachments on bottom. Whatever was there rusted off. I'm hop ... (cont.)

How do I install spiral balances

I have 9 better built windows. That I bought new spiral bouncers for. I cant install them because you guys do not have a video from my type of model window. I was curious to know if I could get some help from you so I can install them.

Non-Tilt Spiral Balances and Compatible Parts

Please advise and provide links to replacement parts for my non-tilt windows. There are no markings on my existing parts.The tube diameter is 3/8". It appears to me that I would need the following types:1) Spiral Balances, 3/8", 29" length, Non-tilt2) 1) Spiral Balances, 3/8", 31" length, Non-tiltAd ... (cont.)

Looking for the right foot

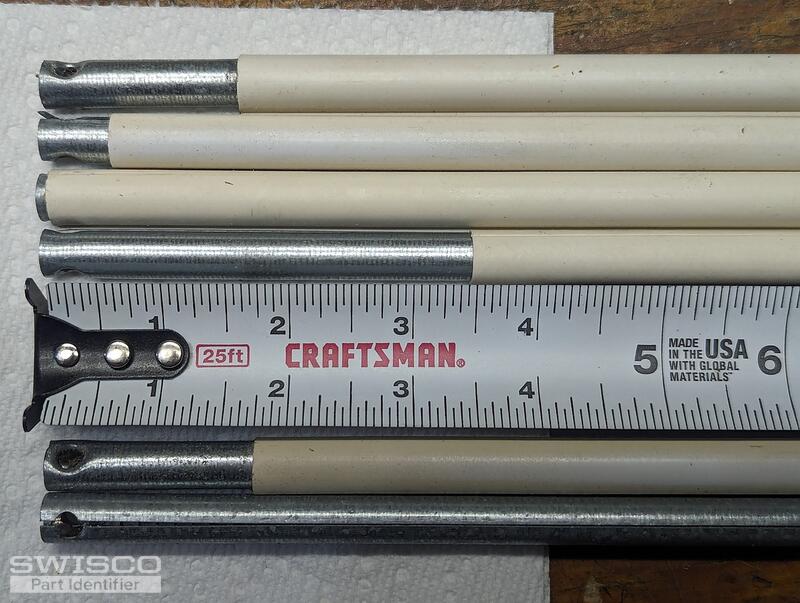

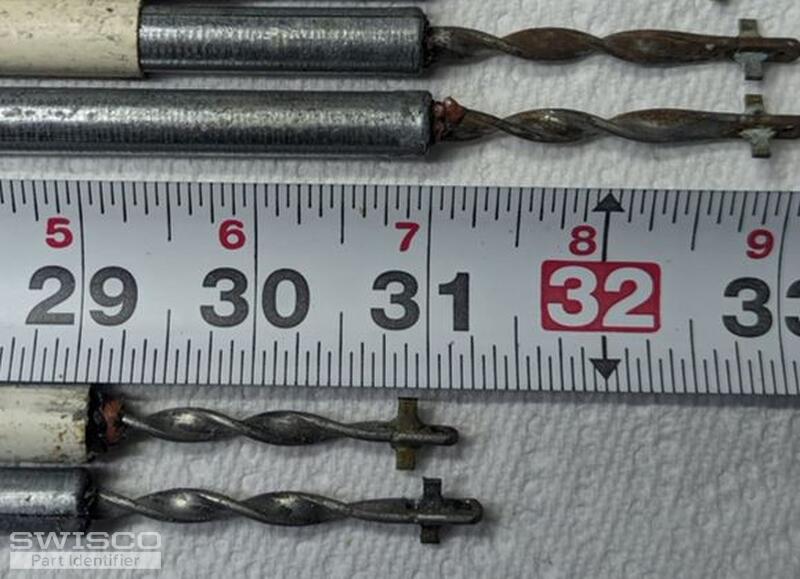

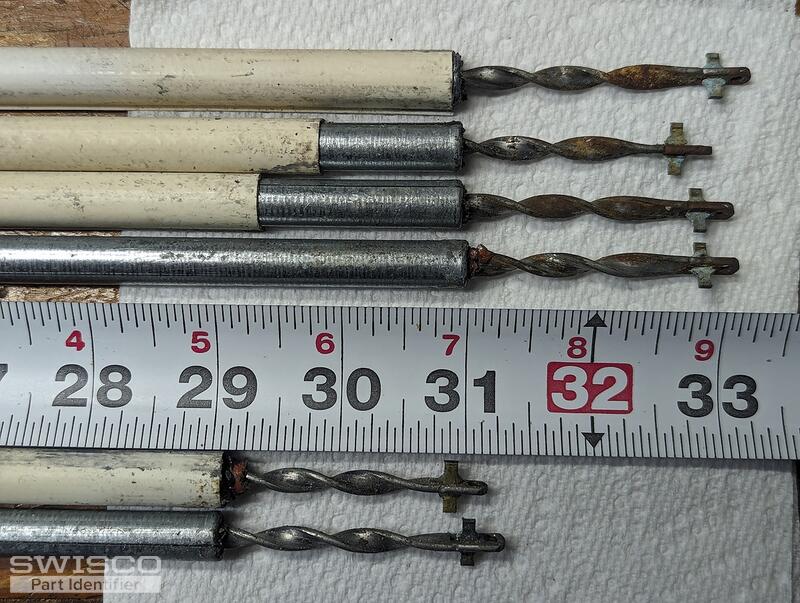

I have 2 windows that need all 4 balances replaced. I know they are 29" by 3/8" red balances. But I can't tell what kind of foot they need. Can you tell from these photos? They are aluminum non-tilt windows, likely made in the 70s.

Help in identifying best spiral balances for old non-tilt windows

Hi. I have four old commercial 4'x5' metal framed windows that need new balances. Based on everything that I could gleam from your website, I am guessing that I might be able to retrofit the 29" series 400 version. The current balances do not have a color tip. The steel tubes are 3/8" in diameter. S ... (cont.)
