Looking for the series of the channel balance

Home Owner from Santa Clara

Jul 18, 2021 2:44 am

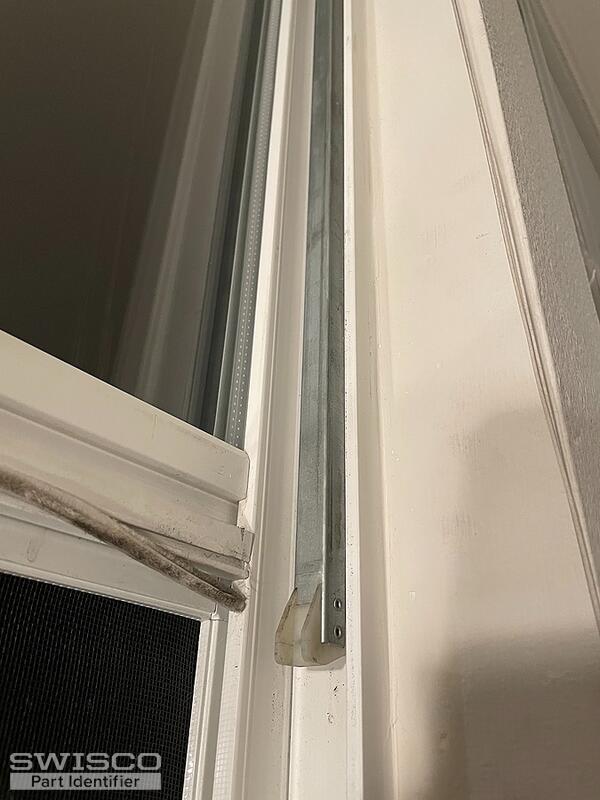

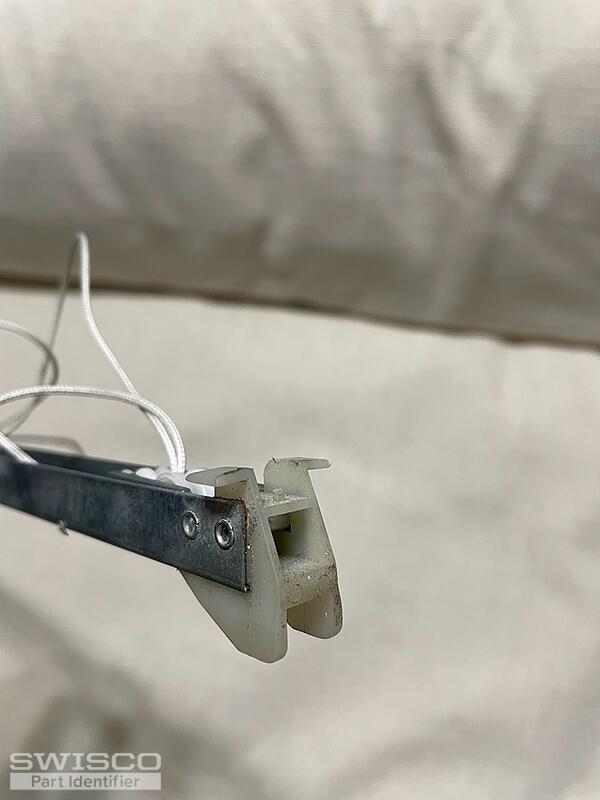

The window channel balance has a length of 26" without the end parts, stamp 25-5. Though I am not sure which series is it..

5 user uploaded images

4 Replies

Emily from SWISCO

Jul 21, 2021 10:42 am

Hi there!

We'd be happy to help but we'll need you to upload some pictures of your top nylon fitting as well. I only see your bottom fitting in the pictures above.

Thank you!

Home Owner from Santa Clara

Jul 22, 2021 8:59 pm

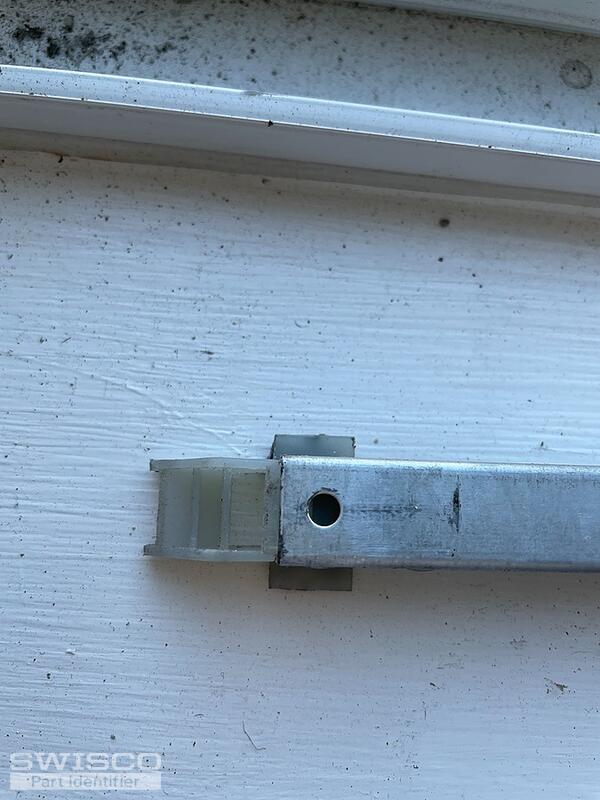

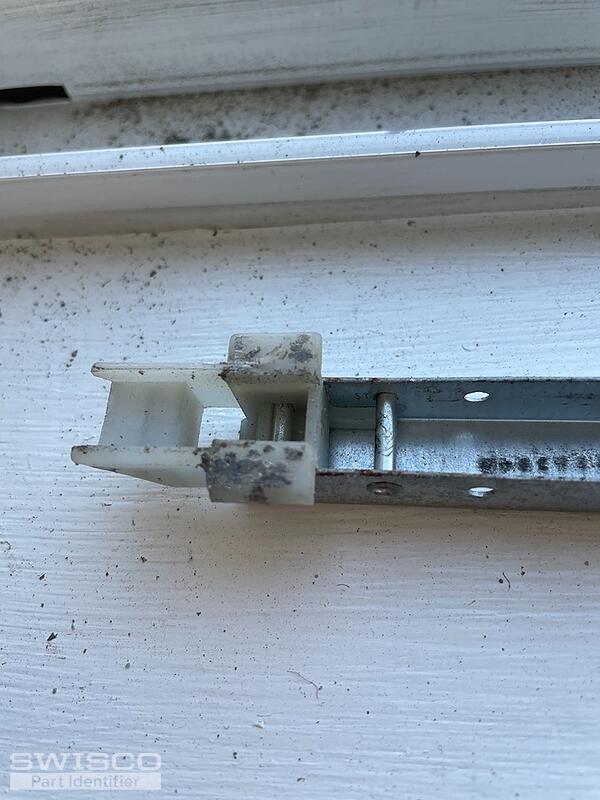

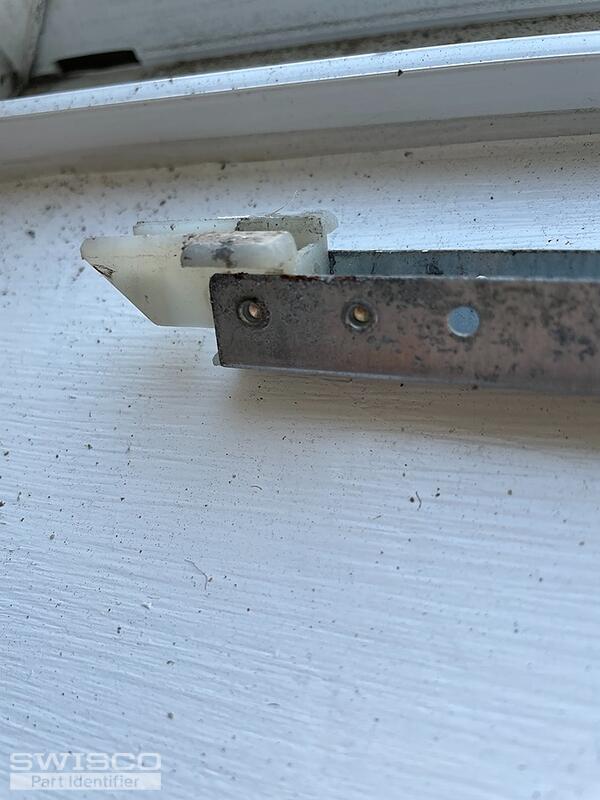

Here are the top part. Thank you very much!

3 user uploaded images

Emily from SWISCO

Jul 23, 2021 8:59 am

Perfect, thanks for the additional pictures!

With this combination of attachments, you could have either an S380-26 or S385-26 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2550.

If you have any further questions just let us know.

Comparison of the S378, S380 and S385 balance shoes.
