coil balances

Handy Person from Mountain Home, AR
Aug 9, 2024 5:09 pm

Hello, My name is Eric and I own Clear Results Glass and am looking for some specific balances for a customer. I attached some pictures but was not able to tell much else about them. Can you help? I need to purchase 3 sets or 6 total.

Ron.Coil.Balance1 Ron.Coil.Balance2 Ron.Coil.Balance3
3 user uploaded images
11 Replies
Casey
Casey from SWISCO
Aug 12, 2024 3:31 pm
SWISCO
EXPERT

Hello,

We'd be happy to look into this for you but we'll need to see the pivot shoe and coil springs fully removed from the window to compare to our inventory. We'll also need you to write out the exact width and thickness of the pivot shoe. See the videos related on this page to assist you in the meantime. Thank you!

Handy Person from Mountain Home, AR
Sep 13, 2024 6:04 pm
1 1/4'' wide pivot
1/2'' thick pivot

5/8'' thick spring

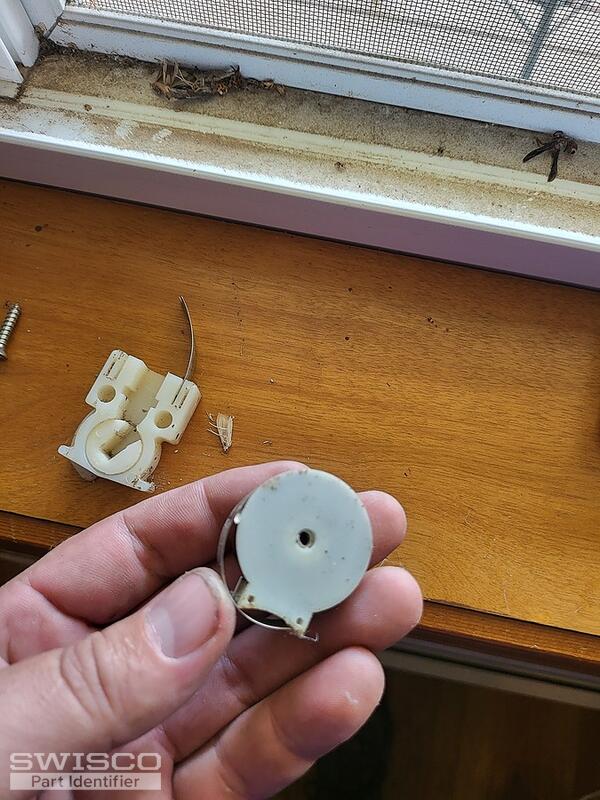

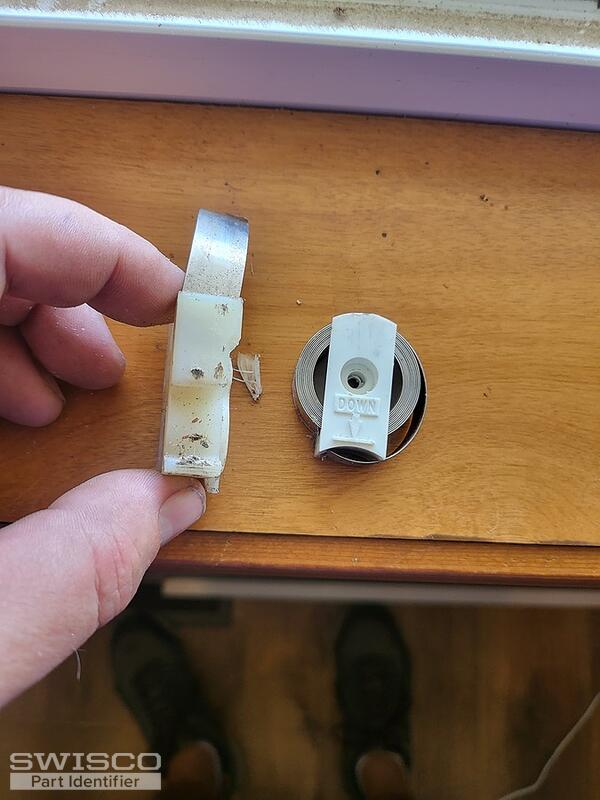

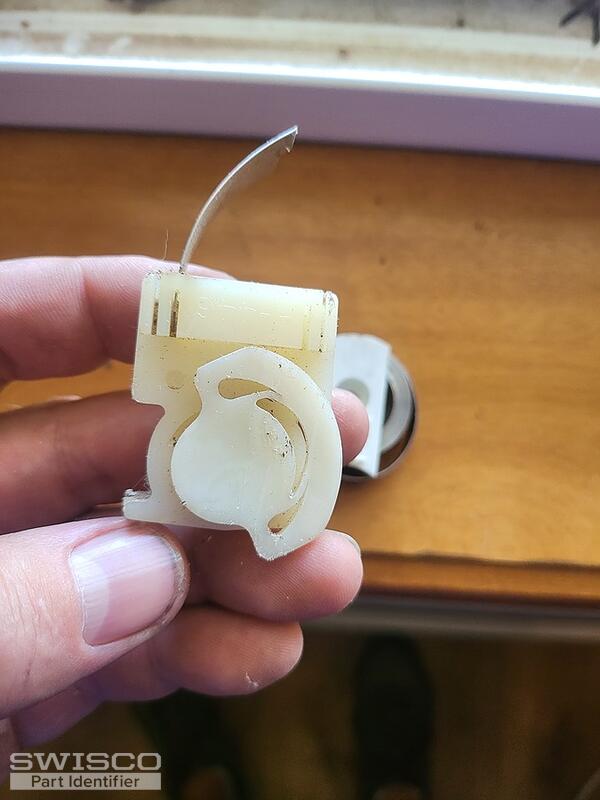

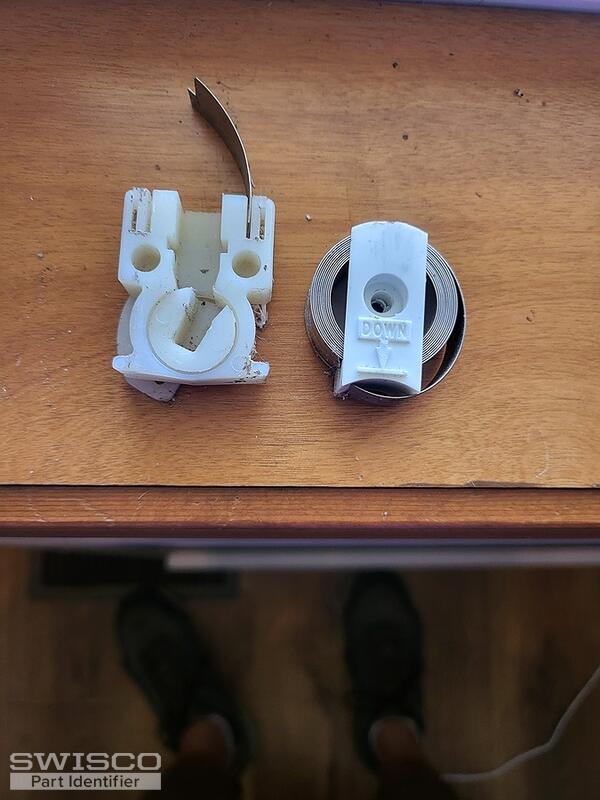

Ron.Rough.Balance.pics.2 Ron.Rough.Balance.pics.3 Ron.Rough.Balance.pics.4 Ron.Rough.Balance.pics
4 user uploaded images
Casey
Casey from SWISCO
Sep 16, 2024 9:45 am
SWISCO
EXPERT

Your pivot shoe resembles the 15-141 at first glance but the style of the cam is different. We'd like to see photos of the pivot bar that installs in the cam removed from the sash to confirm if it would be compatible with our shoe.

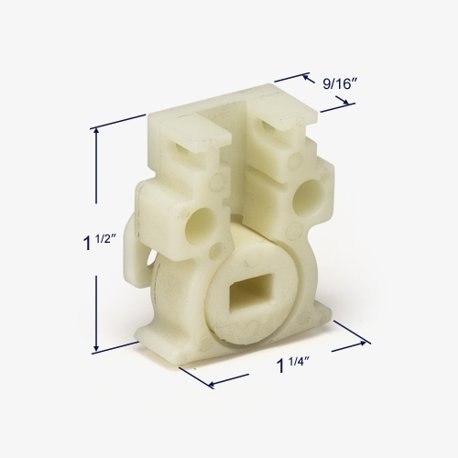

Alternate image for 15-141
Alternate image for 15-141

Please note that this shoe is compatible with the 1/2" wide Series 150 coil springs. I'd also recommend double-checking the size of your coils since they shouldn't be larger than the thickness of the pivot shoe.

Handy Person from Mountain Home, AR
Sep 16, 2024 10:03 am
You want me to remove that bar from the sash? Or you want me to remove the sash from the window and a take a picture of it with the bar in the sash but removed from the window?
Casey
Casey from SWISCO
Sep 16, 2024 10:20 am
SWISCO
EXPERT

We'll need to see the pivot bar fully removed from the sash as demonstrated in the video below.

Handy Person from Mountain Home, AR
Sep 25, 2024 5:38 pm

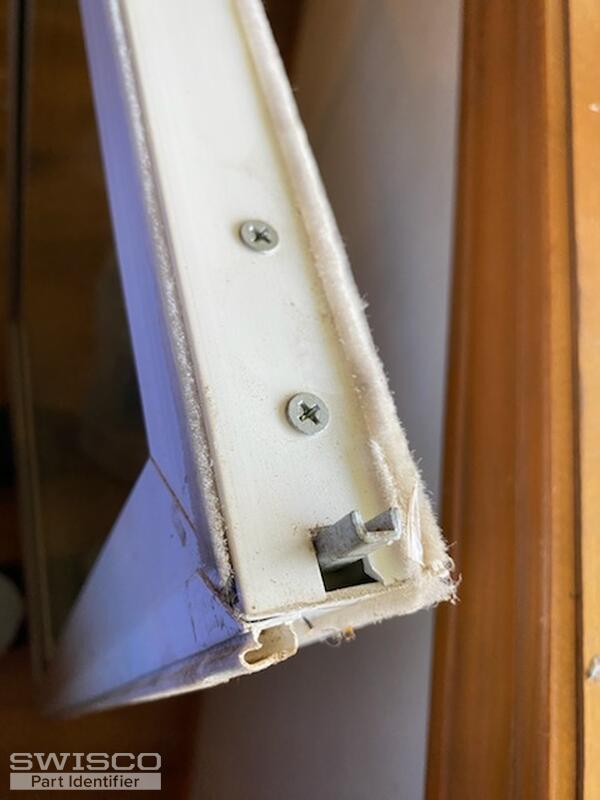

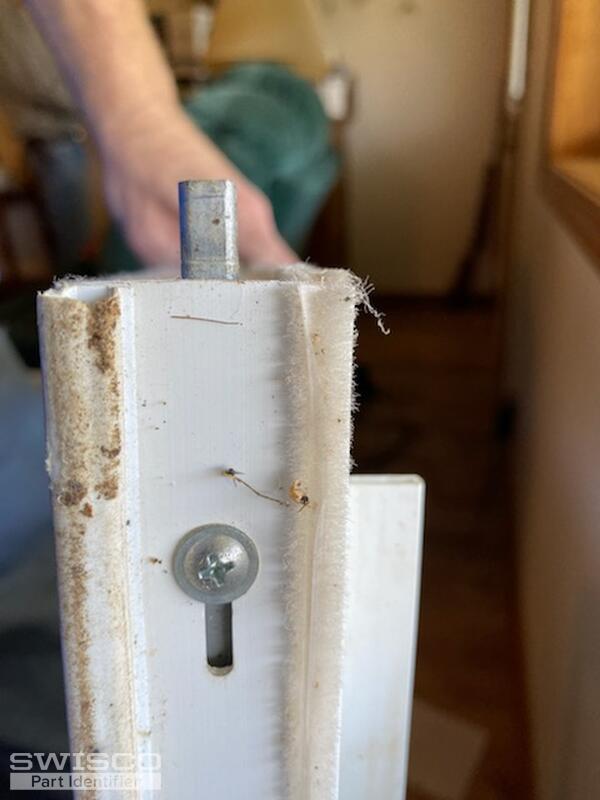

The guy I sent to get the pictures didn't pull the bar completely out but he took a picture of it in there. But these pictures do show what would enter the the balance.
Balance.Pics.rough.2 Balance.Pics.Rough
2 user uploaded images
Paul
Paul from SWISCO
Sep 26, 2024 1:07 pm
SWISCO
EXPERT

Thanks for getting back to us. Based on your additional photos, I'd suggest using the 26-040 pivot bar for the window sash. Going back to the pivot shoe, Casey is correct that you have the 15-141 pivot shoe but the coil springs are discontinued.

As an alternate solution, I suggest using the 15-158 pivot shoes with Series 152 coil springs and 33-071 attaching screw. Review the specifications shown on our product pages and see what you think.

Alternate image for 15-158
Alternate image for 15-158

Handy Person from Mountain Home, AR
Sep 26, 2024 6:08 pm
That looks like it will work. How much is it for a pair of those? And how much is shipping? I'm thinking of just ordering a couple to test out on one window and if it works out then order more. How long before I would be able to get a set of these?
Paul
Paul from SWISCO
Sep 27, 2024 8:18 am
SWISCO
EXPERT

Pricing for each part can be found directly on our product pages. You can click on the highlighted product codes in this thread and it will take you straight to the part details. Once all of the parts are added to your cart, you'll be given multiple shipping options to choose from, including cost and delivery estimates. If you need any help placing your order, please give our customer service team a call at (888) 991-1929.

Handy Person from Mountain Home, AR
Sep 27, 2024 10:12 am
Besides physically putting the sash on a scale, how else might I find the correct lbs for the coil spring?
Paul
Paul from SWISCO
Sep 27, 2024 10:30 am
SWISCO
EXPERT

You would need to physically weigh the sash to confirm the corresponding strength options since you will be converting the window to use different coil springs. The sash weight would be divided by the number of coils you'll be using on both sides to calculate the strength options for each coil.
