Looking to get help identifying these parts

A quick learner from Aliso Viejo, CA says:
I have 2 different sizes, 21" and 33"
Thumbnail of the uploaded file named PXL_20210720_024826233.MP.jpg
Thumbnail of the uploaded file named PXL_20210720_024855159.MP.jpg
Thumbnail of the uploaded file named PXL_20210720_024959058.MP.jpg

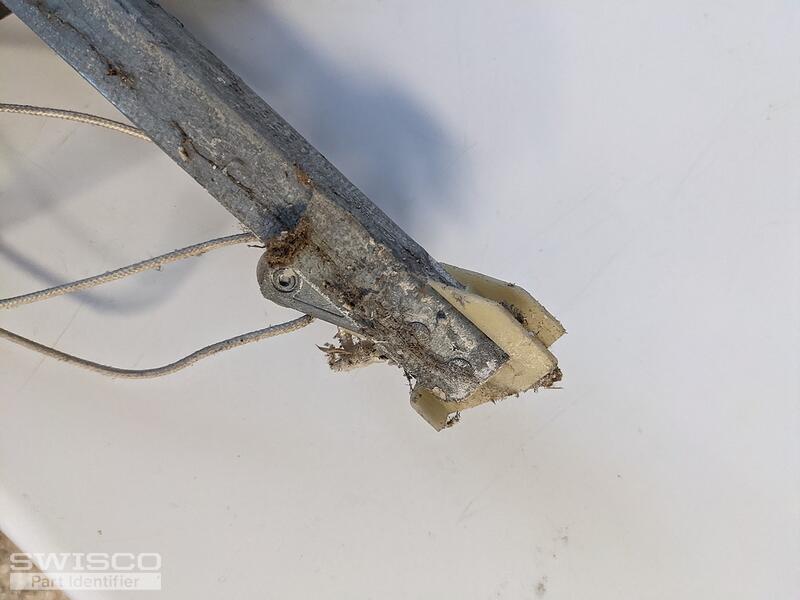

Thumbnail of the uploaded file named PXL_20210720_025013097.MP.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hi there!

For this balance, you could have either an S380-21 or S385-21 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2030.

If you have any further questions just let us know.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A quick learner from Aliso Viejo, CA says:

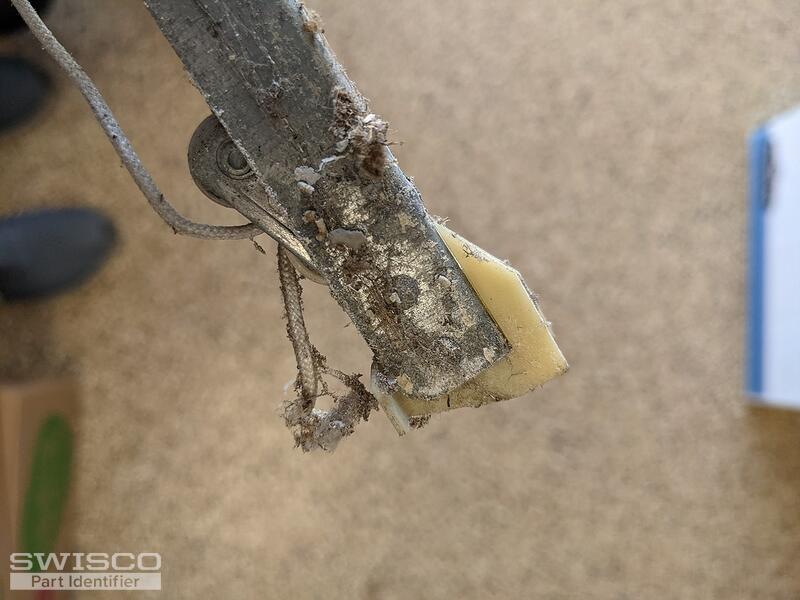

One of the sets is clearly a 1 3/32" attachment, but the other one looks like it was a 1 3/32" attachment, but it broke or was cut/worn down to be 1"
Thumbnail of the uploaded file named PXL_20210730_192727862.MP.jpg
Profile picture of Emily
Emily from SWISCO responded:

It's possible that your bottom shoe has worn down over the years. To be sure you're getting the correct balance for the other set, can you show us clear pictures of the top and bottom attachments? We'd also like to know the stamp on the metal channel.

A quick learner from Aliso Viejo, CA says:
This is for the 33" balance

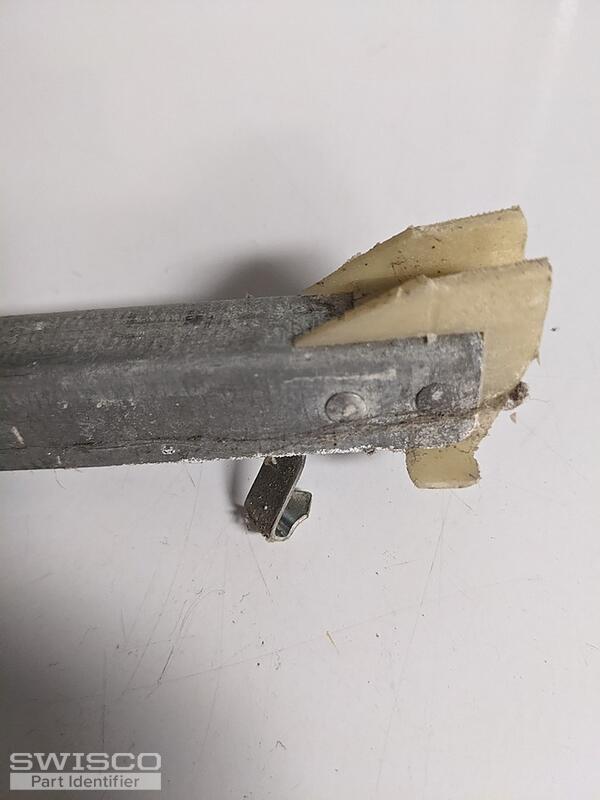

Thumbnail of the uploaded file named bottom-attachment-alt-angle.jpg

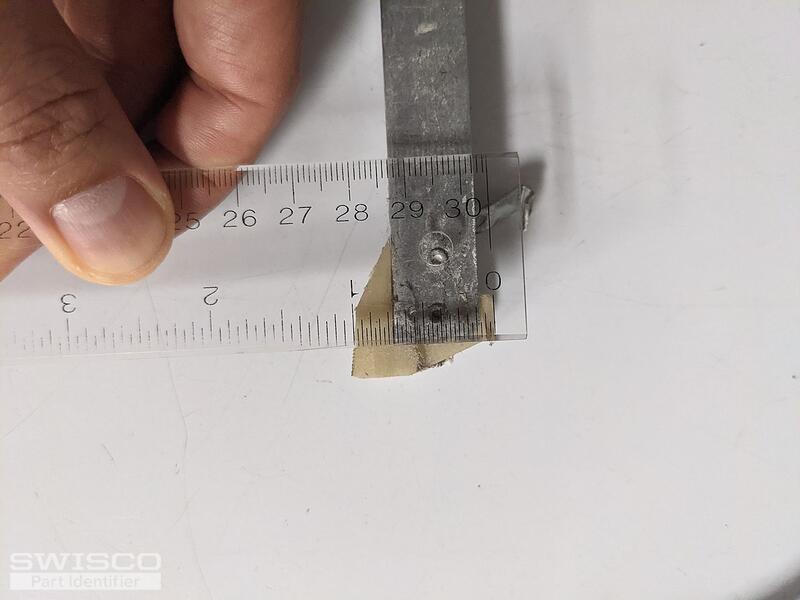

Thumbnail of the uploaded file named bottom-attachment.jpg

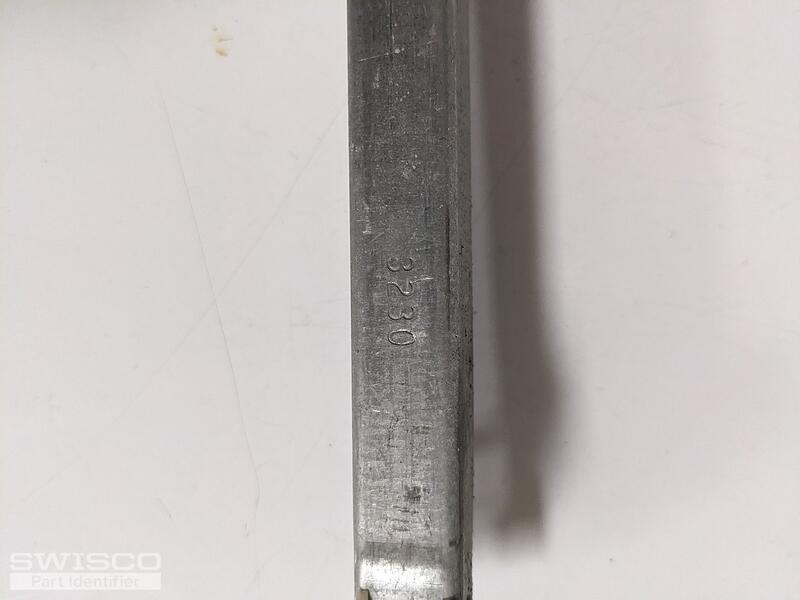

Thumbnail of the uploaded file named stamp-3230.jpg

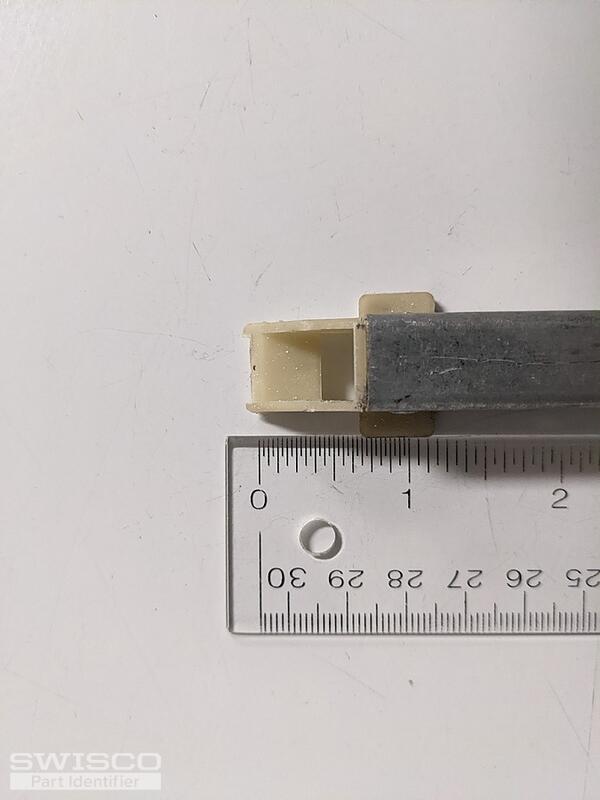

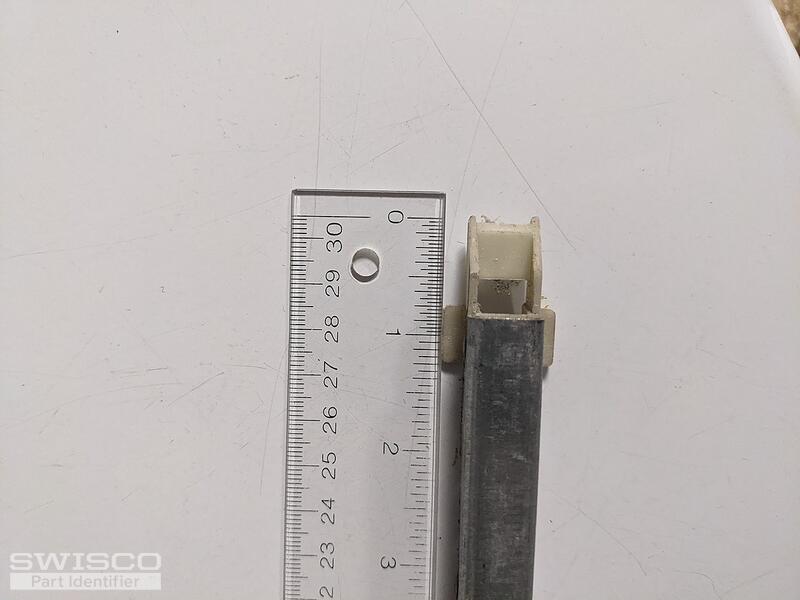

Thumbnail of the uploaded file named top-attachment.jpg
A quick learner from Aliso Viejo, CA says:
This is for the 21"

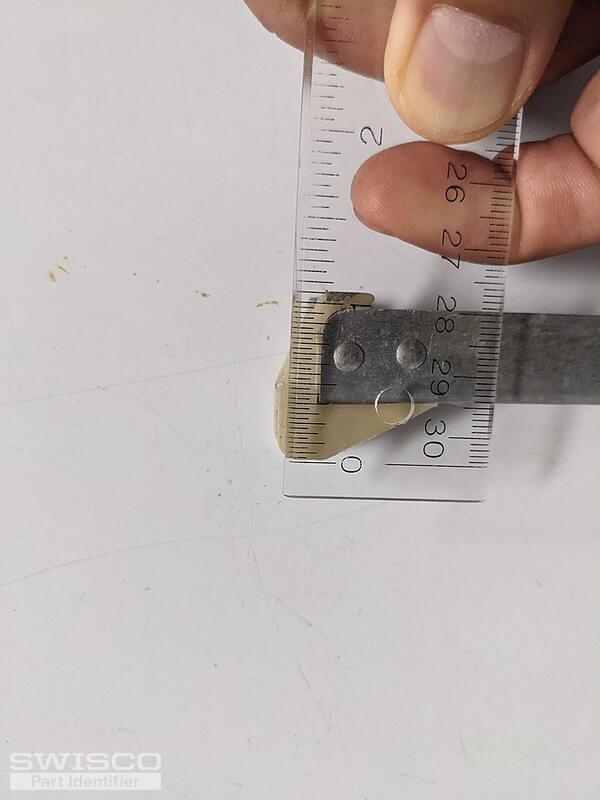

Thumbnail of the uploaded file named bottom-attachment.jpg

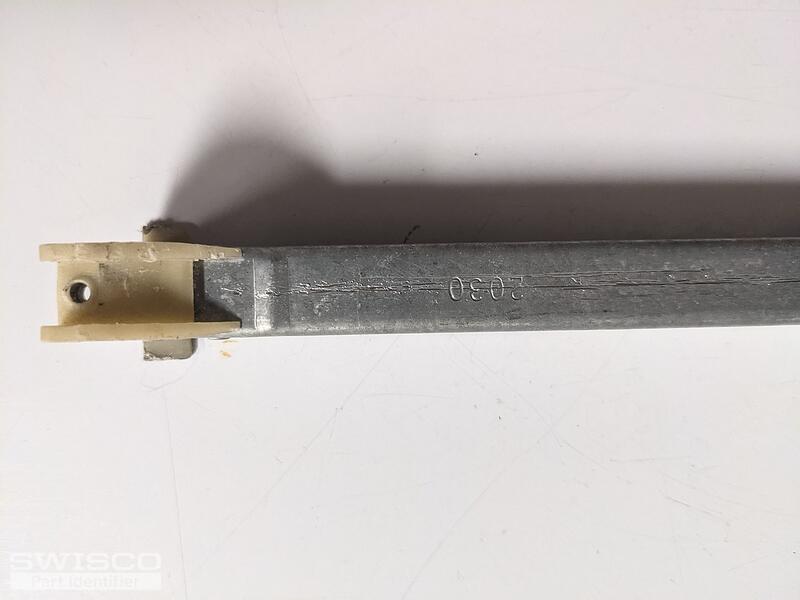

Thumbnail of the uploaded file named stamp-2030.MP.jpg
Thumbnail of the uploaded file named top-attachment.jpg
Profile picture of Tom
Tom from SWISCO responded:

The depth of the shoe in each case appears to exceed 1", so I think our Series 385 would be a safe bet. However it is ultimately up to you. It is a subtle difference and it's not always easy to tell from just a photo of a ruler, so you shouldn't take my word for it. Ultimately the choice is yours.
